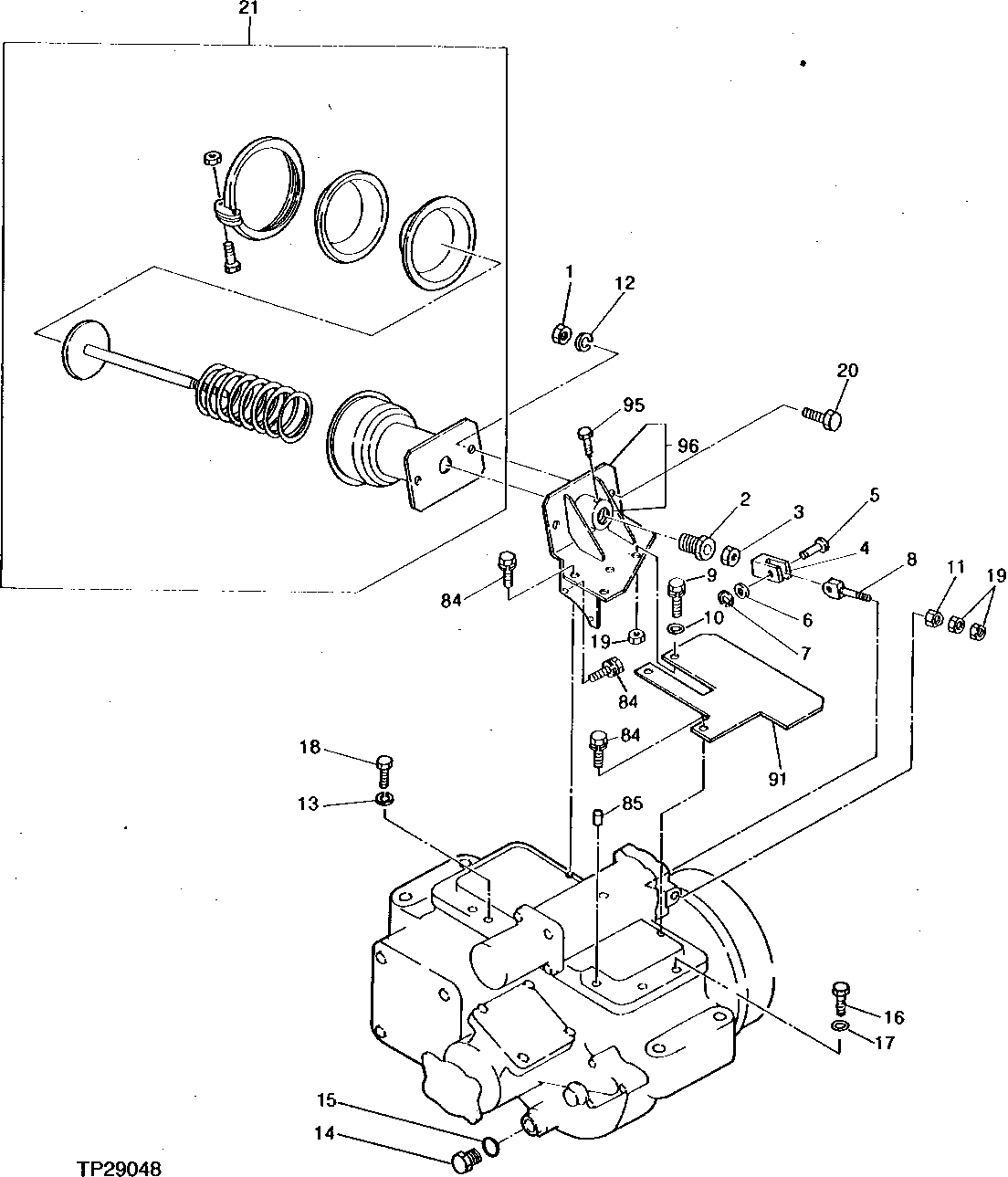

Запчасти John Deere 95D 12 - TRANSMISSION PARK BRAKE CONTROL 315 - TRANSMISSION 3

1

14M7502

NUT

M14, (SUB FOR 14M7150)

2шт.

2

0326556

BOLT

(SUB FOR AT133776)

1шт.

3

14M7537

NUT

M12, (SUB FOR AT133777, TH105444 OR 0267719)

1шт.

4

0326558

YOKE

(SUB FOR AT133778)

1шт.

5

0326559

PIN

(SUB FOR AT133779)

1шт.

6

24M7044

WASHER

13 X 20 X 2 MM, (SUB FOR AT127548 OR 0367003)

1шт.

7

M88101

SNAP RING

(SUB FOR AT127305)

1шт.

8

0326562

JOINTER

(SUB FOR AT133781)

1шт.

9

19M7932

CAP SCREW

M8 X 16, (SUB FOR 19M7284)

2шт.

10

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

11

0326563

SHIFT COLLAR

(SUB FOR AT133782)

1шт.

12

12M7068

LOCK WASHER

14 MM

2шт.

13

12M7066

LOCK WASHER

10 MM

2шт.

14

0266409

FITTING PLUG

(SUB FOR TH105082)

1шт.

15

0268802

O-RING

(SUB FOR TH105369)

1шт.

16

19M7662

CAP SCREW

M10 X 30

7шт.

17

12M7066

LOCK WASHER

10 MM

7шт.

18

0326546

BOLT

(SUB FOR AT133768)

2шт.

19

14M7273

NUT

M8

4шт.

20

0268201

BOLT

(SUB FOR AT127303) (SUB FOR TH105302)

2шт.

21

0326553

CYLINDER

(SUB FOR AT133775)

1шт.

84

19M8118

CAP SCREW

M10 X 35, (SUB FOR AT133766, ALONG WITH 12M7066)

3шт.

12M7066

LOCK WASHER

10 MM

3шт.

85

44M7072

PIN

(SUB FOR AT133767)

2шт.

91

0326549

COVER

(SUB FOR AT133771)

1шт.

95

0326551

CAP SCREW

(SUB FOR AT133773)

1шт.

96

0326552

BRACKET

(SUB FOR AT133774)

1шт.

97

4178118

TRANSMISSION

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGES) (SUB FOR AT126240)

1шт.
