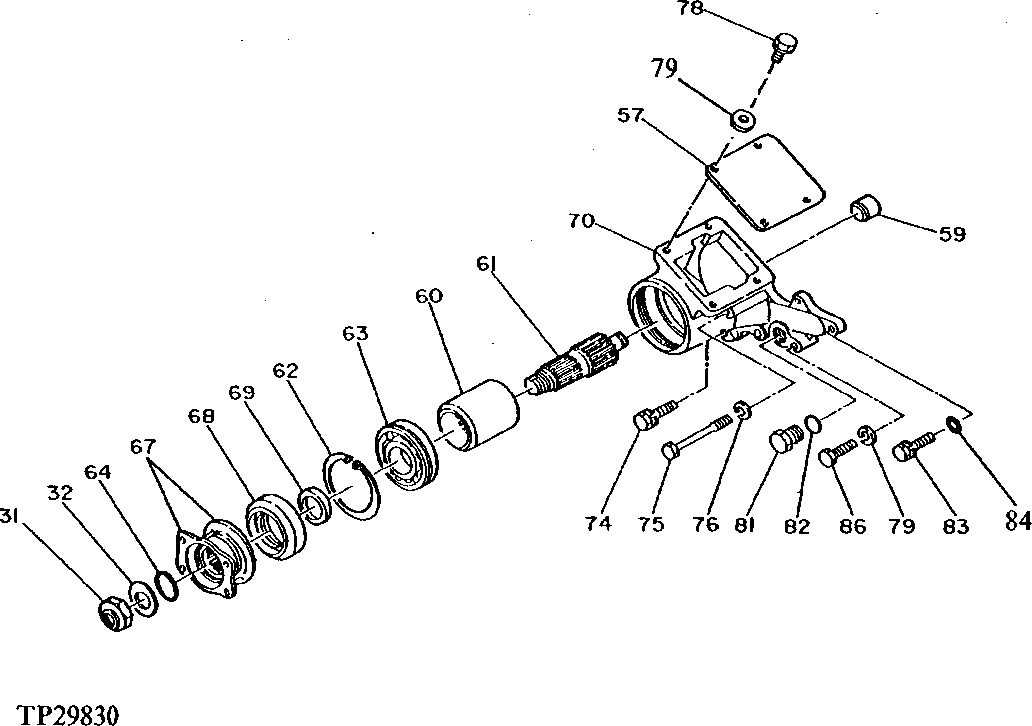

Запчасти John Deere 95D 10 - TRANSMISSION FRONT OUTPUT 315 - TRANSMISSION 3

31

0266503

LOCK NUT

(SUB FOR TH105086)

1шт.

32

0268401

WASHER

(SUB FOR TH105312)

1шт.

57

0326538

COVER

(SUB FOR AT133760)

1шт.

59

0326539

BUSHING

(SUB FOR AT133761)

1шт.

60

0326540

SLEEVE

(SUB FOR AT133762)

1шт.

61

0268603

SHAFT

(SUB FOR TH105332)

1шт.

62

40M7118

SNAP RING

1шт.

63

TH105336

BALL BEARING

1шт.

64

0268604

O-RING

(SUB FOR TH105333)

1шт.

67

0268605

FLANGE

(SUB FOR TH105334)

1шт.

68

0266638

SEAL

(SUB FOR TH105151)

1шт.

69

0268303

WASHER

(SUB FOR TH105287)

1шт.

70

COVER

( AT133763 OR 0326541 NO LONGER AVAILABLE FOR SERVICE)

1шт.

74

19M7403

CAP SCREW

M12 X 35

4шт.

75

19M7908

CAP SCREW

M12 X 110

2шт.

76

12M7058

LOCK WASHER

12 MM, (SUB FOR TH105156) (SUB FOR 12M7067)

2шт.

78

19M7166

CAP SCREW

M10 X 20, (SUB FOR AT133765 OR CH12341, ALONG WITH 12M7066)

4шт.

79

12M7066

LOCK WASHER

10 MM

5шт.

81

0266409

FITTING PLUG

(SUB FOR TH105082)

1шт.

82

0268802

O-RING

(SUB FOR TH105369)

1шт.

83

19M7662

CAP SCREW

M10 X 30, (SUB FOR TH105274) (ALSO ORDER 12M7066)

2шт.

84

12M7066

LOCK WASHER

10 MM

2шт.

86

0326546

BOLT

(SUB FOR AT133768)

1шт.

90

4178118

TRANSMISSION

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SUB FOR AT126240)

1шт.
