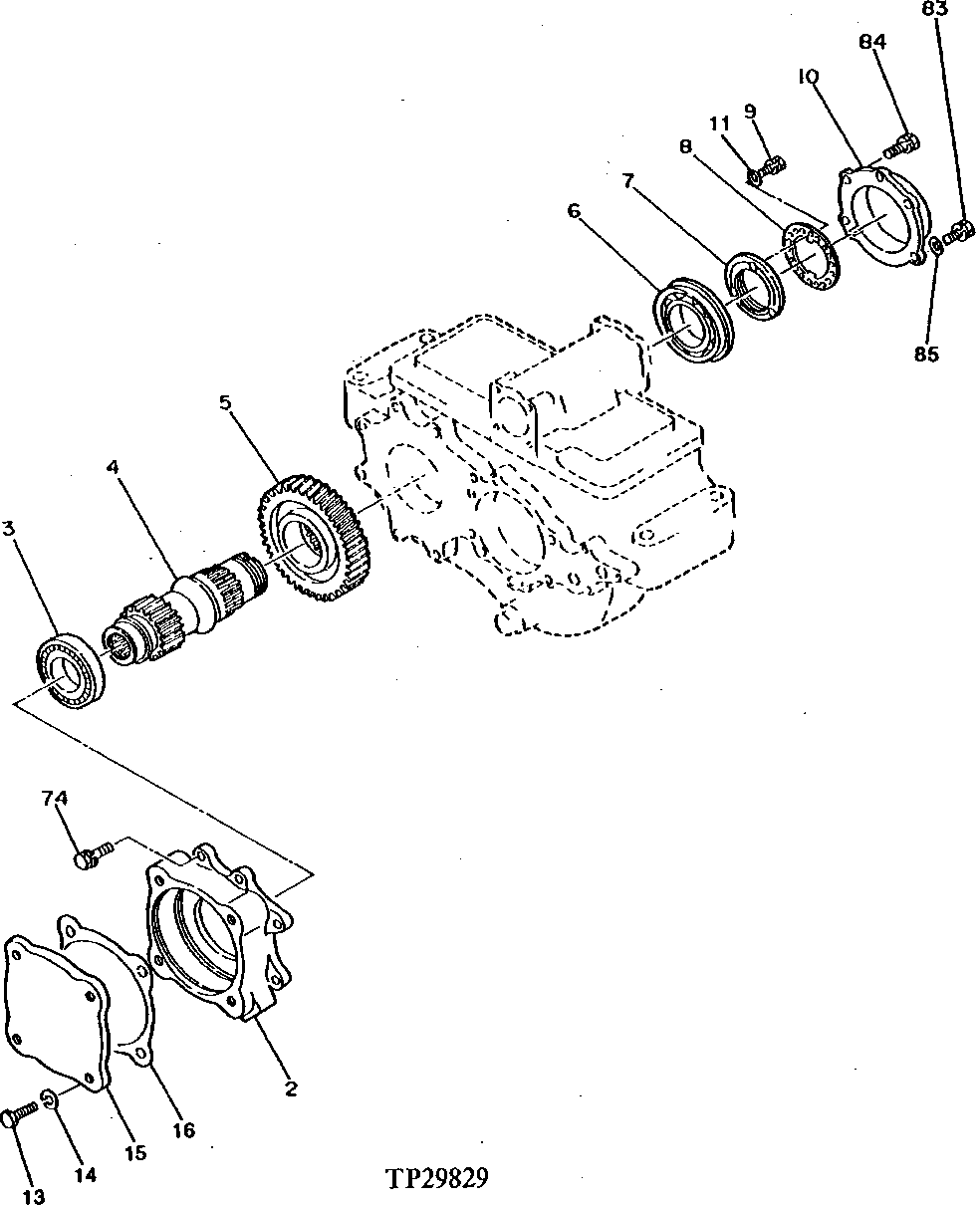

Запчасти John Deere 95D 4 - TRANSMISSION COUNTERSHAFT 315 - TRANSMISSION 3

2

0326502

HOUSING

(SUB FOR AT133727)

1шт.

3

CH13386

BEARING

(SUB FOR AT133728)

1шт.

4

0326504

SHAFT

(SUB FOR AT133729)

1шт.

5

0326505

GEAR

(SUB FOR AT133730)

1шт.

6

JD9440

BALL BEARING

(SUB FOR AT133731)

1шт.

7

0326507

NUT

(SUB FOR AT133732)

1шт.

8

0326508

LOCK WASHER

(SUB FOR AT133733)

1шт.

9

19M7932

CAP SCREW

M8 X 16, (SUB FOR TH105265) (ALSO ORDER 12M7065) (SUB FOR 19M7284)

3шт.

10

0326509

COVER

(SUB FOR AT133734)

1шт.

11

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

3шт.

13

19M7488

CAP SCREW

M16 X 40

4шт.

14

12H294

LOCK WASHER

5/8"

4шт.

15

COVER

(SUB AT126240)

1шт.

16

GASKET

( AT133786 OR 0326567 NLA)

1шт.

74

19M7403

CAP SCREW

M12 X 35

8шт.

83

19M7662

CAP SCREW

M10 X 30

4шт.

84

19M8118

CAP SCREW

M10 X 35, (SUB FOR AT133766, ALONG WITH 12M7066)

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

85

12M7066

LOCK WASHER

10 MM

4шт.

90

4178118

TRANSMISSION

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SUB FOR AT126240)

1шт.
