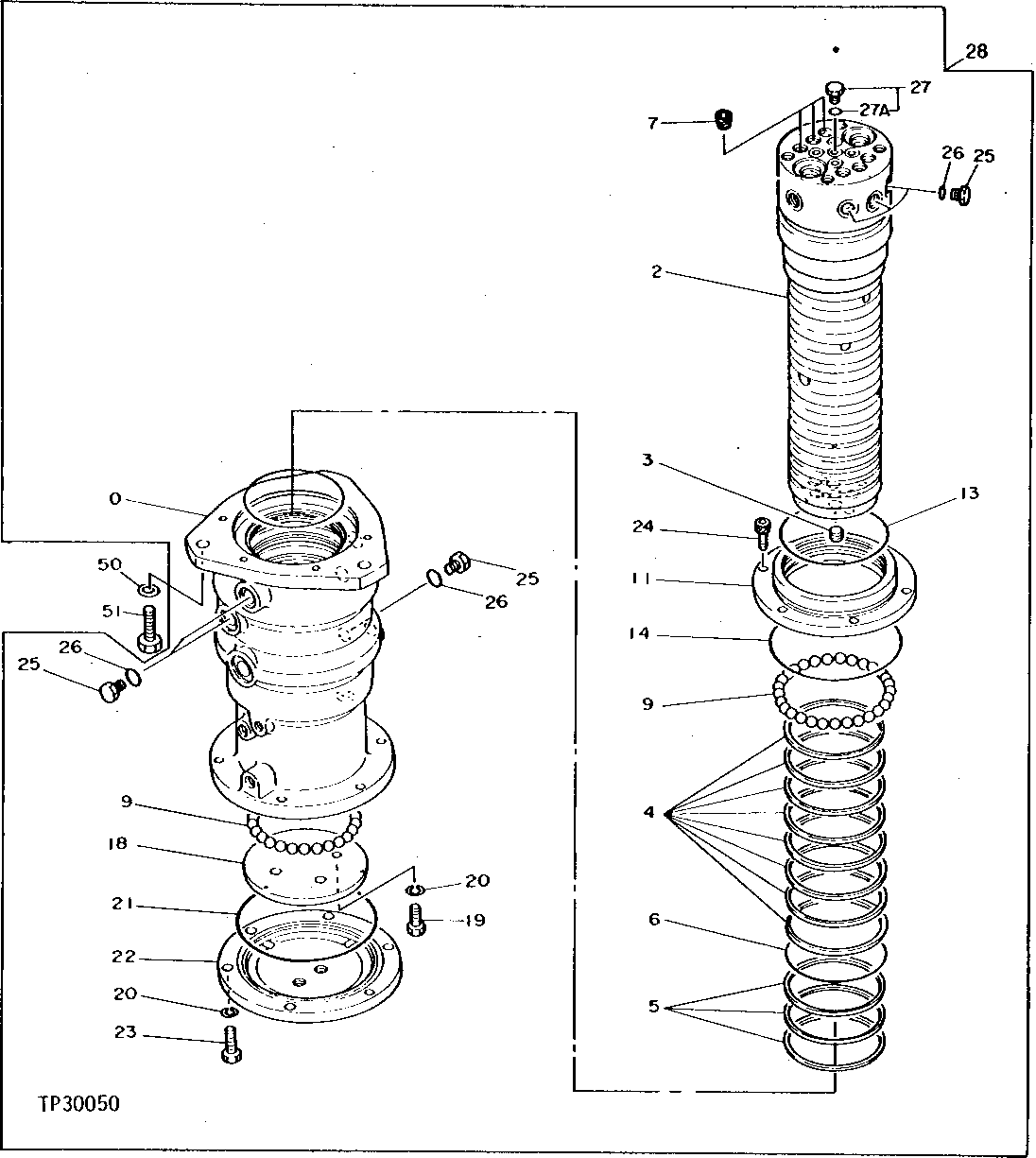

Запчасти John Deere 95D 6 - ROTARY MANIFOLD 260 - AXLES AND SUSPENSION SYSTEMS 2

0

0000498

HOUSING

(SUB FOR AT126053)

1шт.

2

1010405

SPINDLE

(SUB FOR AT126061)

1шт.

3

94-2012

FITTING PLUG

(SUB FOR TH100653)

5шт.

4

4357489

SEAL

(SUB FOR AT126253)

8шт.

5

4179087

SEAL

(SUB FOR AT126252)

3шт.

6

4076651

O-RING

(SUB FOR AT126191)

2шт.

7

94-2013

FITTING PLUG

(SUB FOR AT128487) (SUB FOR TH100648)

6шт.

9

972658

BALL

(SUB FOR T38788)

55шт.

11

3035984

COVER

(SUB FOR AT126113)

1шт.

13

997330

O-RING

(SUB FOR AT127247)

1шт.

14

A810175

O-RING

(SUB FOR AT134307)

1шт.

18

4191802

PLATE

(SUB FOR AT126285)

1шт.

19

19M8011

CAP SCREW

M12 X 30

4шт.

20

12H301

LOCK WASHER

1/2"

10шт.

21

A810185

O-RING

(SUB FOR AT134308)

1шт.

22

3035983

COVER

(SUB FOR AT126112)

1шт.

23

19M7493

CAP SCREW

M12 X 40

6шт.

24

19M8337

SCREW

M10 X 30

6шт.

25

0225216

FITTING PLUG

(SUB FOR AT126225 OR AT136512) (SUB FOR TH105757)

6шт.

26

4506418

O-RING

(SUB FOR U46489)

6шт.

27

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)

1шт.

27A

M800650

PACKING

1шт.

28

MANIFOLD

( AT127164 NO LONGER AVAILABLE)

1шт.

50

4114405

WASHER

(SUB FOR TH101105)

3шт.

51

19M7409

CAP SCREW

M16 X 50

3шт.
