1 - AXLE LOCK LOCK-OUT VALVE

Запчасти John Deere 95D 1 - AXLE LOCK LOCK-OUT VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

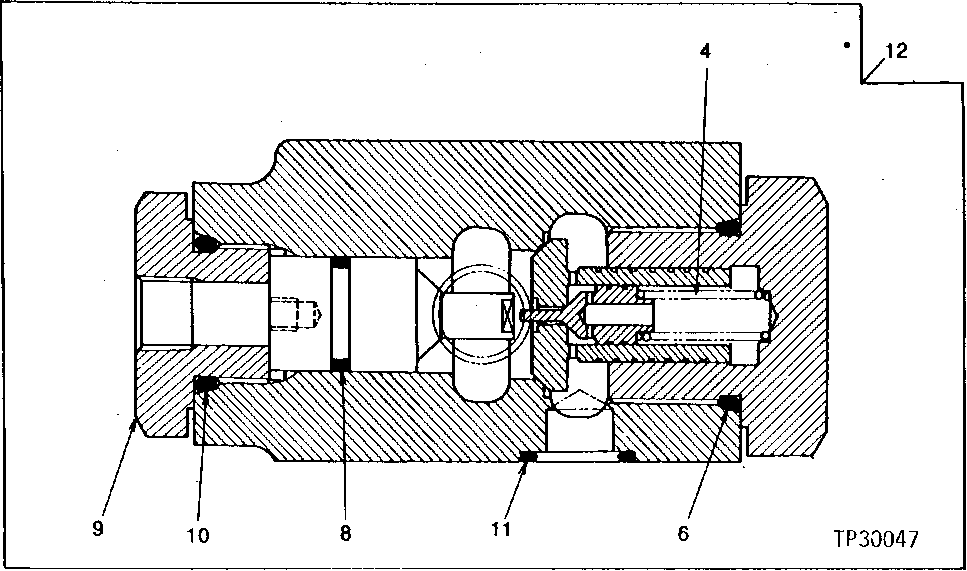

Схема запчастей John Deere 95D - 1 - AXLE LOCK LOCK-OUT VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4

0303204

SPRING

(SUB FOR TH110098)

1шт.

6

CH17886

PACKING

1шт.

8

4506418

O-RING

(SUB FOR TH110099) (SUB FOR U46489)

1шт.

9

0334703

FITTING PLUG

(SUB FOR AT134319)

1шт.

10

R495R

O-RING

(SUB FOR T57248)

1шт.

11

T111819

O-RING

1шт.

12

CHECK VALVE

( AT134085 NO LONGER AVAILABLE)

1шт.
