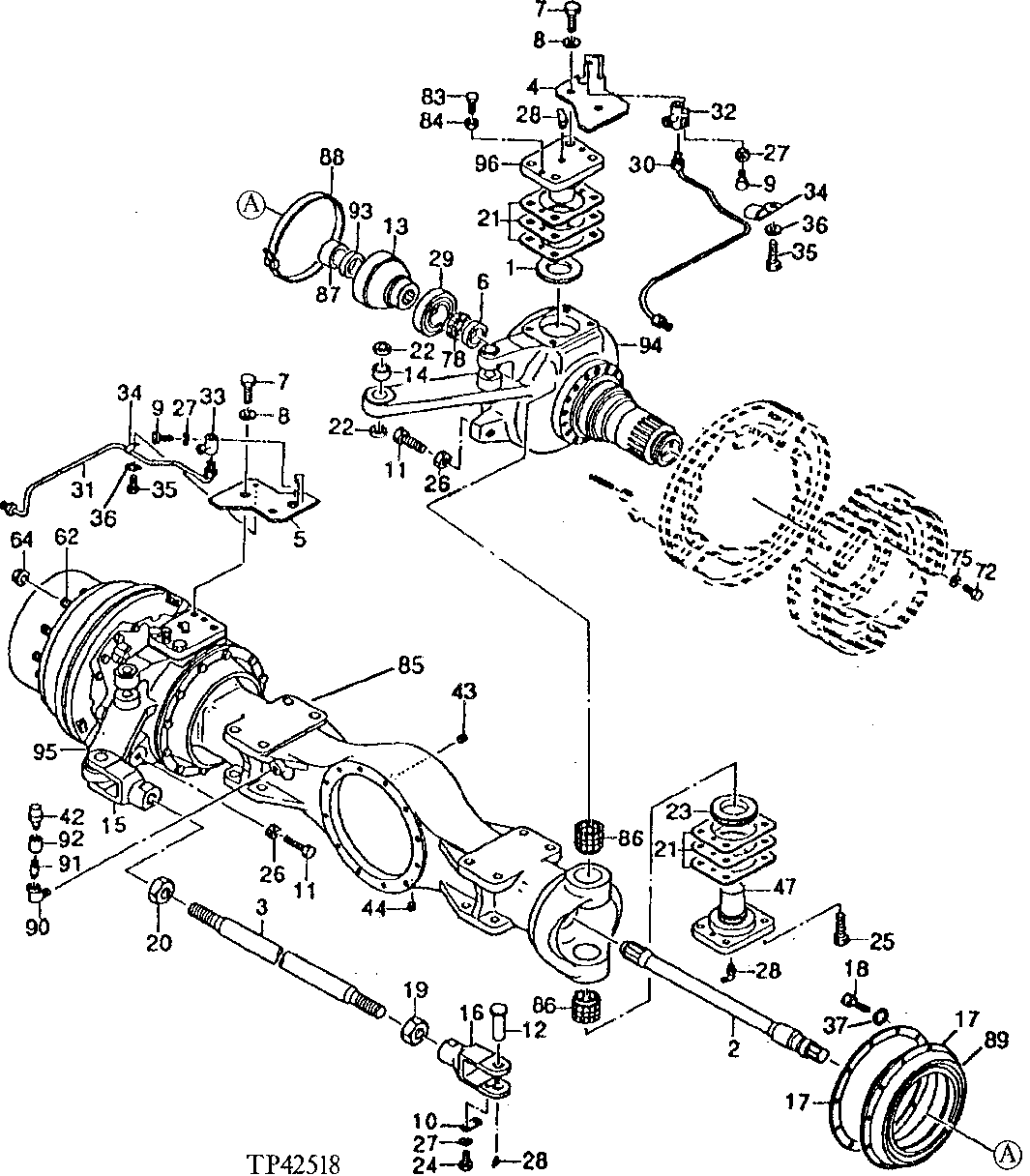

Запчасти John Deere 95D 6 - FRONT AXLE HOUSING AND STEERING KNUCKLE 250 - AXLES AND SUSPENSION SYSTEMS 2

1

0328948

THRUST WASHER

(SUB FOR AT133926)

2шт.

2

0328949

SHAFT

(SUB FOR AT133927)

2шт.

3

0328950

TIE ROD ASSEMBLY

(SUB FOR AT133928)

1шт.

4

0328951

PLATE

(SUB FOR AT133929) (RIGHT)

1шт.

5

0328952

PLATE

(SUB FOR AT133930) (LEFT)

1шт.

6

0328953

BUSHING

(SUB FOR AT133931)

2шт.

7

0328954

BOLT

(SUB FOR AT133932)

4шт.

8

24M7279

WASHER

21 X 37 X 4 MM, (SUB FOR AT133612)

4шт.

9

19M7407

CAP SCREW

M8 X 25, (SUB FOR AT133933)

2шт.

10

0328956

STRAP

(SUB FOR AT133934)

2шт.

11

0153509

BOLT

(SUB FOR AT133615)

2шт.

12

0328957

PIN

(SUB FOR AT133935)

2шт.

13

0328958

BALL JOINT

(SUB FOR AT133936)

2шт.

14

0328959

BUSHING

(SUB FOR AT133937)

2шт.

15

0328960

YOKE

(SUB FOR AT133938) (LEFT)

1шт.

16

0328961

YOKE

(SUB FOR AT133939) (RIGHT)

1шт.

17

0328962

PLATE

(SUB FOR AT133940)

4шт.

18

19M7932

CAP SCREW

M8 X 16, (SUB FOR AT133941) (ALSO ORDER 12M7065)

24шт.

19

0328964

NUT

(SUB FOR AT133942)

1шт.

20

0328965

NUT

(SUB FOR AT133943)

1шт.

21

0328966

SHIM

(SUB FOR AT133944) (0.1)

8шт.

0328967

SHIM

(SUB FOR AT133945) (0.15)

12шт.

0328968

SHIM

(SUB FOR AT133946) (0.5)

4шт.

22

0328969

SEAL

(SUB FOR AT133947)

4шт.

23

0328970

THRUST BEARING

(SUB FOR AT133948)

2шт.

24

19M7881

SCREW

M8 X 20, (SUB FOR AT133949)

4шт.

25

0328972

BOLT

(SUB FOR AT133950)

12шт.

26

14M7309

NUT

M24, (SUB FOR AT133951, AT127392 OR 0361306)

2шт.

27

12M7056

LOCK WASHER

8 MM, (SUB FOR AT133952) (SUB FOR 12M7065)

6шт.

28

T116334

LUBRICATION FITTING

(SUB FOR AT134310 OR TH100075)

6шт.

29

AH108801

BALL BEARING

(SEALED BALL BEARING) (SUB FOR AT133953, AT136952, TH101792 OR AT250102, THIS APPLICATION)

2шт.

30

0328977

OIL LINE

(SUB FOR AT133954) (RIGHT)

1шт.

31

0328978

OIL LINE

(SUB FOR AT133955) (LEFT)

1шт.

32

0328979

JOINTER

(SUB FOR AT133956) (RIGHT)

1шт.

33

0328980

JOINTER

(SUB FOR AT133957) (LEFT)

1шт.

34

0328981

CLAMP

(SUB FOR AT133958)

2шт.

35

19M7300

CAP SCREW

M6 X 10, (SUB FOR AT133959) (ALSO ORDER 12M7006)

2шт.

36

12M7006

LOCK WASHER

6 MM

2шт.

37

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

24шт.

42

0153551

BREATHER

(SUB FOR AT133618)

1шт.

43

0153426

FITTING PLUG

(SUB FOR AT133613)

1шт.

44

0153426

FITTING PLUG

(SUB FOR AT133613)

1шт.

47

0328947

KINGPIN

(SUB FOR AT133925) (LOWER)

2шт.

72

BOLT

( AT133905 OR 0328927 NLA)

32шт.

75

0328929

WASHER

(SUB FOR AT133907)

32шт.

78

0328931

SEAL

(SUB FOR AT133909)

2шт.

83

19M8721

CAP SCREW

M12 X 30

ARшт.

84

14M7275

NUT

M12

ARшт.

85

0329202

HOUSING

(SUB FOR AT134315)

1шт.

86

0328937

BUSHING

(SUB FOR AT133915)

4шт.

87

0328938

BUSHING

(SUB FOR AT133916)

2шт.

88

0153508

BAND

(SUB FOR AT133614)

2шт.

89

0328939

BOOT

(SUB FOR AT133917)

2шт.

90

0328940

ELBOW FITTING

(SUB FOR AT133918)

1шт.

91

0328941

LINE

(SUB FOR AT133919)

1шт.

92

J70083

ADAPTER FITTING

(SUB FOR AT133920) (SUB FOR TH103028)

1шт.

93

0328943

SEAL

(SUB FOR AT133921)

2шт.

94

0328944

KNUCKLE

(SUB FOR AT133922)

1шт.

95

0328945

KNUCKLE

(SUB FOR AT133923)

1шт.

96

0328946

KINGPIN

(SUB FOR AT133924) (UPPER)

2шт.
