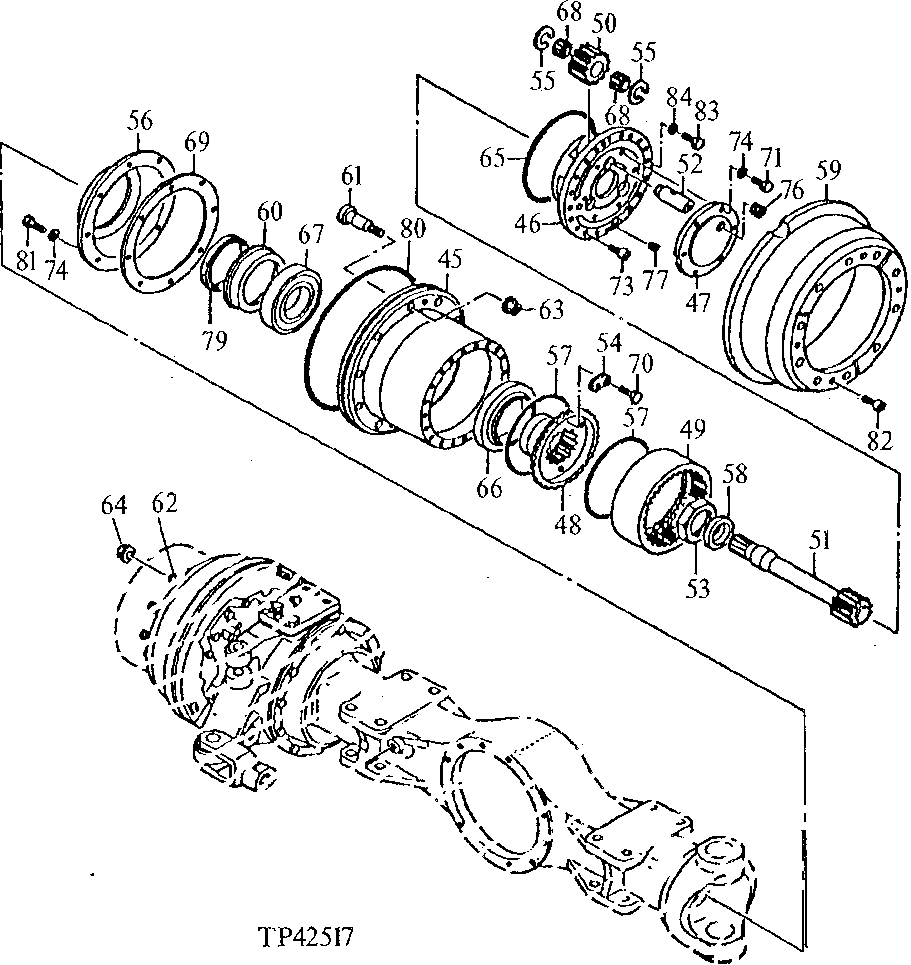

Запчасти John Deere 95D 4 - FRONT AXLE HUB REDUCTION 250 - AXLES AND SUSPENSION SYSTEMS 2

45

0328902

HUB

(SUB FOR AT133880)

2шт.

46

0328903

SPIDER

(SUB FOR AT133881)

2шт.

47

0328904

COVER

(SUB FOR AT133882)

2шт.

48

0328905

HUB

(SUB FOR AT133883)

2шт.

49

0328906

GEAR

(SUB FOR AT133884)

2шт.

50

0328907

GEAR

(SUB FOR AT133885)

6шт.

51

0328908

SHAFT

(SUB FOR AT133886)

2шт.

52

0328909

SHAFT

(SUB FOR AT133887)

6шт.

53

0328910

NUT

(SUB FOR AT133888)

2шт.

54

0328911

PLATE

(SUB FOR AT133889)

2шт.

55

0328912

THRUST WASHER

(SUB FOR AT133890)

12шт.

56

0328913

COVER

(SUB FOR AT133891)

2шт.

57

0328914

WIRE

(SUB FOR AT133892)

4шт.

58

0328915

BUSHING

(SUB FOR AT133893)

2шт.

59

0328916

BRAKE DRUM

(SUB FOR AT133894)

2шт.

60

0328917

RETAINER

(SUB FOR AT133895)

2шт.

61

0328918

WHEEL BOLT

(SUB FOR AT133896) (RIGHT)

10шт.

62

0328919

WHEEL BOLT

(SUB FOR AT133897) (LEFT)

10шт.

63

4216723

FLANGE NUT

(SUB FOR AT126669) (RIGHT)

10шт.

64

4216724

FLANGE NUT

(SUB FOR AT126670) (LEFT)

10шт.

65

0328920

O-RING

(SUB FOR AT133898)

2шт.

66

AT133899

TAPERED ROLLER BEARING

2шт.

67

AT133900

TAPERED ROLLER BEARING

2шт.

68

0328923

NEEDLE BEARING

(SUB FOR AT133901)

12шт.

69

0329203

BAND

(SUB FOR AT133902)

2шт.

70

19M7932

CAP SCREW

M8 X 16, (SUB FOR AT133903)

4шт.

71

19M7938

CAP SCREW

M10 X 20, (SUB FOR AT133904)

12шт.

73

19M8169

SCREW

M12 X 30, (SUB FOR AT133906)

40шт.

74

12M7066

LOCK WASHER

10 MM, (SUB FOR AT133878)

28шт.

76

0153426

FITTING PLUG

(SUB FOR AT133613)

2шт.

77

94-2013

FITTING PLUG

(SUB FOR AT133908) (SUB FOR TH100648)

2шт.

79

0153549

SEAL

(SUB FOR AT133617)

2шт.

80

0328932

O-RING

(SUB FOR AT133910)

2шт.

81

19M8324

CAP SCREW

M10 X 16, (SUB FOR AT133911 OR 19M7557)

16шт.

82

19M7695

SCREW

M10 X 20, (SUB FOR AT133912)

ARшт.

83

19M8721

CAP SCREW

M12 X 30, (SUB FOR AT133913)

ARшт.

84

14M7275

NUT

M12, (SUB FOR AT133914)

ARшт.
