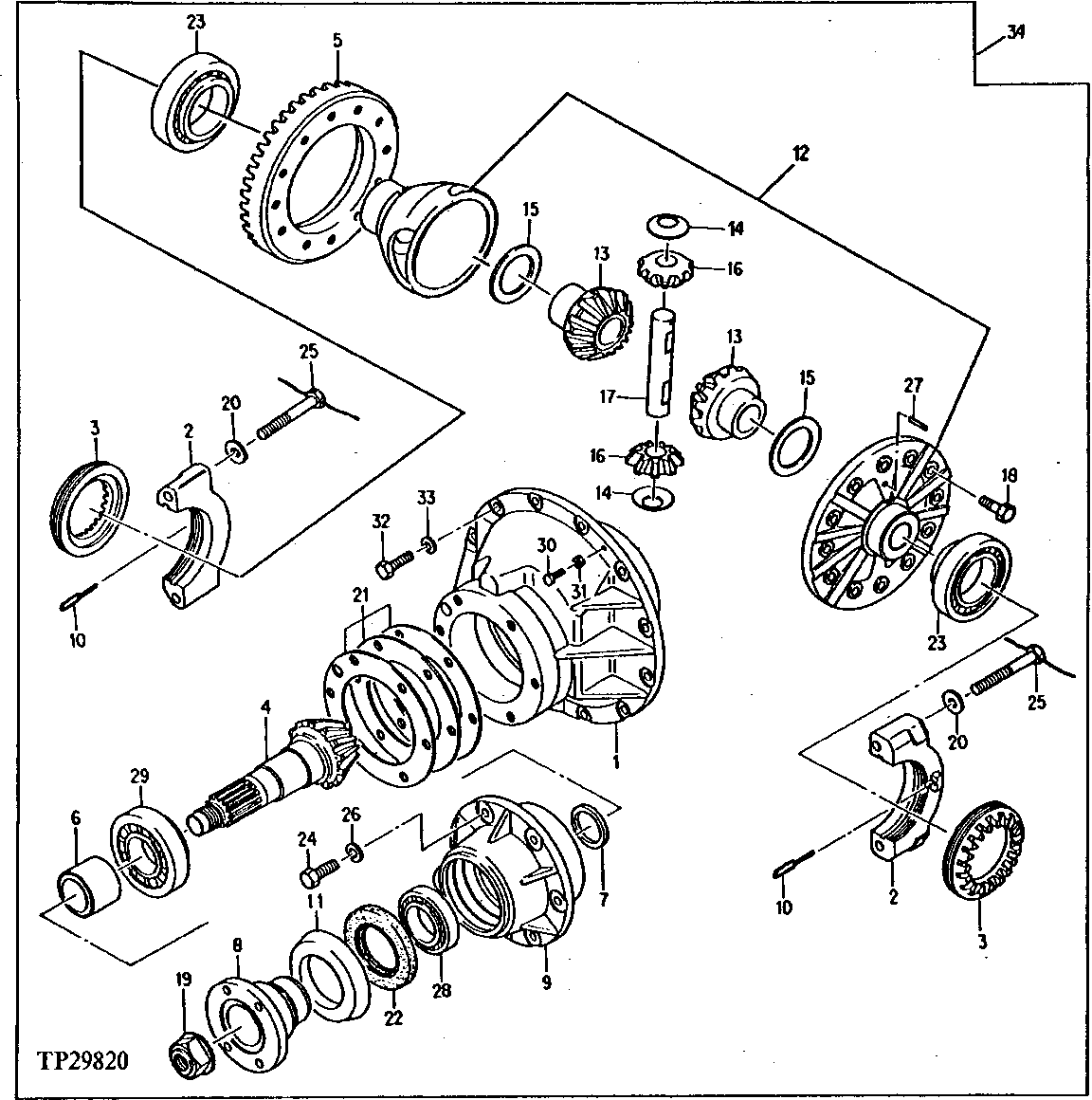

Запчасти John Deere 95D 2 - DIFFERENTIAL 250 - AXLES AND SUSPENSION SYSTEMS 2

1

PLANET PINION CARRIER

( 0328801 NO LONGER AVAILABLE) (PROVIDE 4376799, 4376800, 4376801) (SUB FOR AT133847)

1шт.

2

BEARING CAP

(SUB AT134079)

2шт.

3

NUT

( 0328803 NO LONGER AVAILABLE- PROVIDE 4376799. 4376800, 4376801) (SUB FOR AT133849)

2шт.

4

0328804

PINION

(SUB FOR AT133850)

1шт.

5

GEAR

( 0328805 NO LONGER AVAILABLE - PROVIDE 4376799, 4376800, 4376801) (SUB FOR AT133851)

1шт.

6

0328806

SPACER

(SUB FOR AT133852)

1шт.

7

0328807

WASHER

(SUB FOR AT133853)

1шт.

8

YOKE

( 0328808 NO LONGER AVAILABLE - PROVIDE 4376799, 4376800, 4376801) (SUB FOR AT133854)

1шт.

9

0328809

CAGE

(SUB FOR AT133855)

1шт.

10

0153401

COTTER PIN

(SUB FOR AT133610)

2шт.

11

0328810

OIL SLINGER

(SUB FOR AT133856)

1шт.

12

0328811

CASE

(SUB FOR AT133857)

1шт.

13

0328812

GEAR

(SUB FOR AT133858)

2шт.

14

0328813

THRUST WASHER

(SUB FOR AT133859)

2шт.

15

0328814

THRUST WASHER

(SUB FOR AT133860)

2шт.

16

0328815

PINION

(SUB FOR AT133861)

2шт.

17

0328816

SHAFT

(SUB FOR AT133862)

1шт.

18

T116304

BOLT

(SUB FOR AT133863)

12шт.

19

0153412

NUT

(SUB FOR AT133611)

1шт.

20

4114405

WASHER

(SUB FOR AT133864) (SUB FOR TH101105)

4шт.

21

0328819

SHIM

(SUB FOR AT133865)

4шт.

0328820

SHIM

(SUB FOR AT133866)

2шт.

0328821

SHIM

(SUB FOR AT133867)

2шт.

22

0328822

SEAL

(SUB FOR AT133868)

1шт.

23

JD37129

TAPERED ROLLER BEARING

(SUB FOR AT133869)

2шт.

24

19M7493

CAP SCREW

M12 X 40, (SUB FOR AT133870)

6шт.

25

0328825

BOLT

(SUB FOR AT133871)

4шт.

26

12M7058

LOCK WASHER

12 MM, (SUB FOR AT133872) (SUB FOR 12M7067)

6шт.

27

34M7042

SPRING PIN

6 X 40 MM, (SUB FOR AT133873)

1шт.

28

0328828

CYLINDRICAL ROLLER BEARING

(SUB FOR AT133874 AND JD37086) (SUB FOR AT133874)

1шт.

29

ROLLER BEARING

JD37092 NO LONGER AVILABLE, (SUB FOR AT133875)

1шт.

30

19M7662

CAP SCREW

M10 X 30, (SUB FOR AT133876)

2шт.

31

14M7274

NUT

M10, (SUB FOR AT133877)

2шт.

32

19M7662

CAP SCREW

M10 X 30, (SUB FOR AT133876)

12шт.

33

12M7066

LOCK WASHER

10 MM, (SUB FOR AT133878)

12шт.

34

4216619

PLANET PINION CARRIER

(SUB FOR AT134079)

1шт.

35

4376799

PLANET PINION CARRIER

(NOT ILLUSTRATED)

1шт.

36

4376800

BEVEL GEAR DRIVE

(NOT ILLUSTRATED)

1шт.

37

4376801

PLANETARY ASSEMBLY

(NOT ILLUSTRATED)

1шт.
