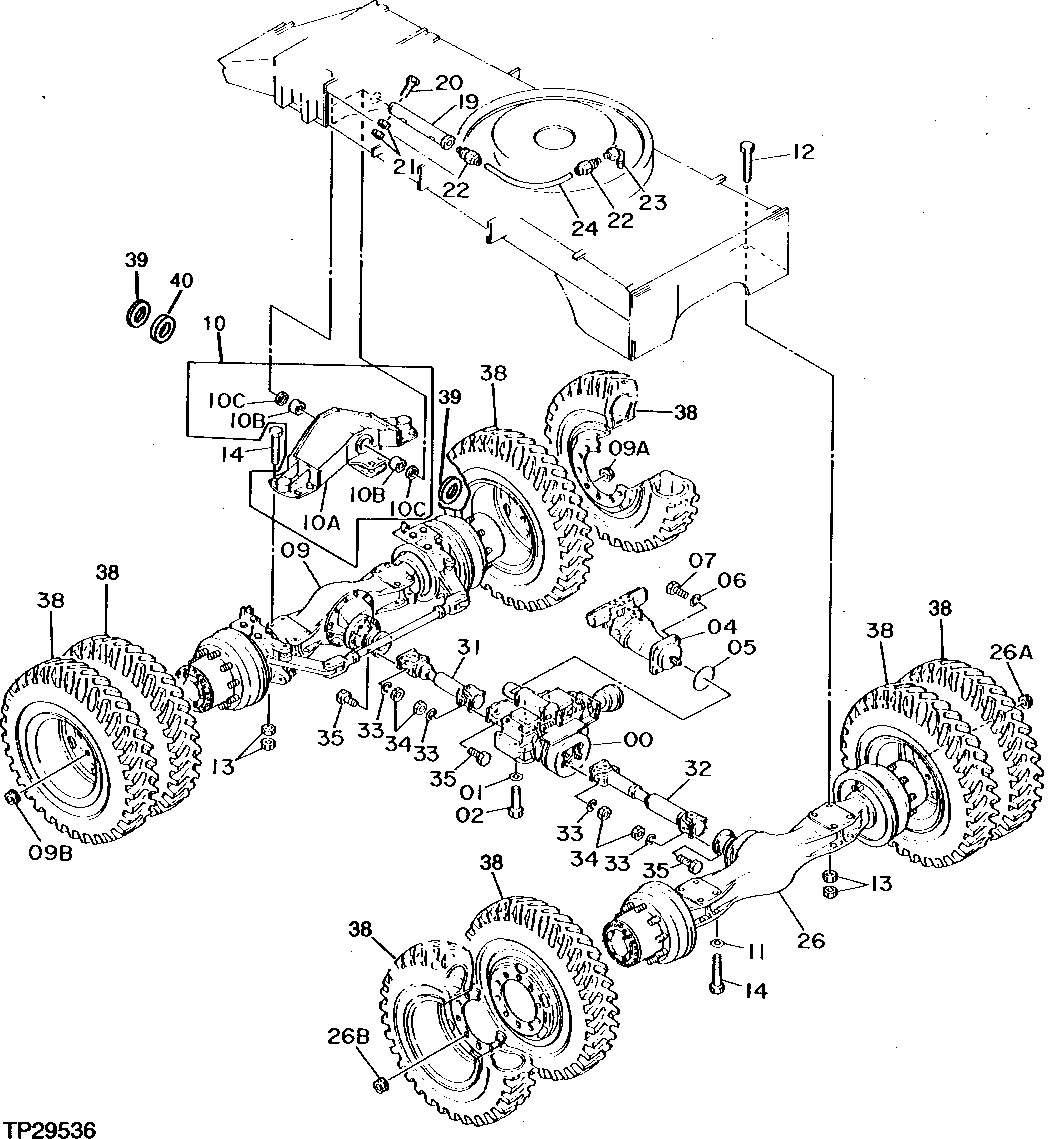

Запчасти John Deere 95D 2 - POWER TRAIN 240 - AXLES AND SUSPENSION SYSTEMS 2

0

4178118

TRANSMISSION

(SUB FOR AT126240)

1шт.

1

N231749

WASHER

(SUB FOR T33089)

4шт.

2

19M7883

SCREW

M20 X 120

4шт.

4

MOTOR

( AT126244 NO LONGER AVAILABLE) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

5

TH100679

O-RING

1шт.

6

12H294

LOCK WASHER

5/8"

4шт.

7

19M8295

CAP SCREW

M16 X 55, (SUB FOR 19M7480)

4шт.

9

4178116

FRONT AXLE

(SUB FOR AT126238) (INCLUDES ITEMS 9A AND 9B)

1шт.

9A

4216723

FLANGE NUT

(SUB FOR AT126669) (RIGHT)

10шт.

9B

4216724

FLANGE NUT

(SUB FOR AT126670) (LEFT)

10шт.

10

8040222

BEAM

(SUB FOR AT134279)

1шт.

10A

BEAM

( AT126921 NO LONGER AVAILABLE)

1шт.

10B

AT122209

BUSHING

(SUB FOR TH108931)

2шт.

10C

TH100374

SEAL

2шт.

11

24M7243

WASHER

25.400 X 50 X 6 MM, (SUB FOR T108232)

4шт.

12

J932418

BOLT

(SUB FOR AT127264)

4шт.

13

14M7278

NUT

M24

24шт.

14

J932416

BOLT

(SUB FOR AT127265)

12шт.

19

3039552

PIN FASTENER

(SUB FOR AT126148)

1шт.

20

J831605

BOLT

(SUB FOR AT127260 OR M121602)

1шт.

21

M511613

NUT

(SUB FOR TH101807)

2шт.

22

4502672

FITTING

(SUB FOR AT126889)

2шт.

23

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

24

PMNB40350100

BULK HOSE

(SUB FOR AT126257) (SUB FOR 4180186)

1шт.

26

4178117

REAR AXLE

(SUB FOR AT126239) (INCLUDES ITEMS 26A AND 26B)

1шт.

26A

4216723

FLANGE NUT

(SUB FOR AT126669) (RIGHT)

10шт.

26B

4216724

FLANGE NUT

(SUB FOR AT126670) (LEFT)

10шт.

31

4174293

SHAFT

(SUB FOR AT126228)

1шт.

32

4174294

SHAFT

(SUB FOR AT126229)

1шт.

33

12H301

LOCK WASHER

1/2"

16шт.

34

14M7357

NUT

M12

16шт.

35

4151651

BOLT

(SUB FOR TH104268)

12шт.

38

4180079

RIM

(SUB FOR AT126256)

8шт.

39

4075357

WASHER

(SUB FOR TH108944)

2шт.

40

4075358

WASHER

(SUB FOR TH108955)

1шт.
