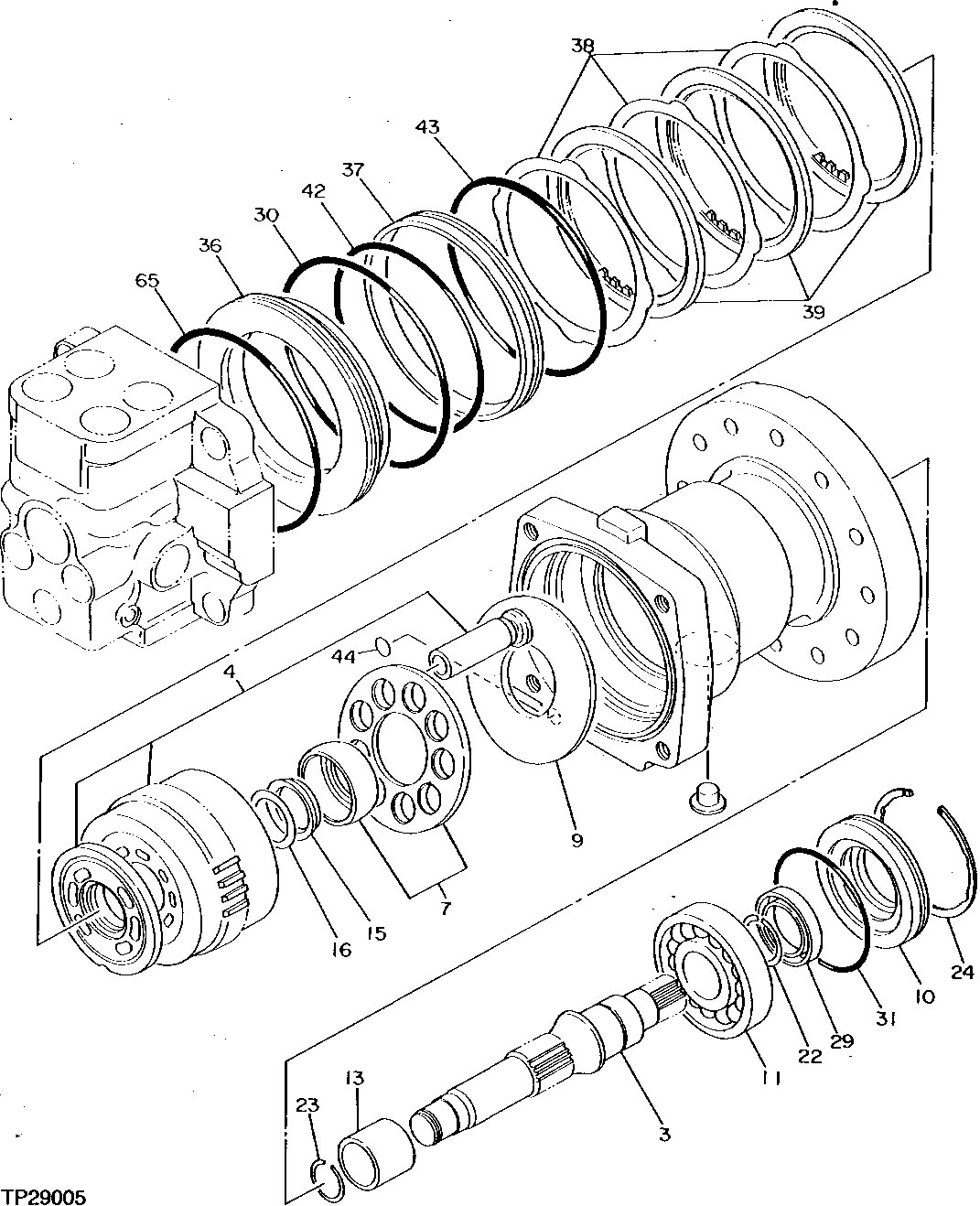

Запчасти John Deere 95D 10 - SWING MOTOR 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

3

0356703

SHAFT

(SUB FOR AT130570)

1шт.

4

0311304

CYLINDER BLOCK

(SUB FOR TH109047)

1шт.

7

0311305

PLATE

(SUB FOR TH109048)

1шт.

9

0311306

WASHER

(SUB FOR TH109049)

1шт.

10

0356704

HOUSING

(SUB FOR AT130571)

1шт.

11

JD9480

BALL BEARING

(SUB FOR TH109051)

1шт.

13

0311309

BEARING RACE

(SUB FOR TH109052)

1шт.

15

0311311

SPRING

(SUB FOR TH109054)

1шт.

16

0311312

WASHER

(SUB FOR TH109055)

1шт.

22

40M7047

SNAP RING

(SUB FOR TH108871)

1шт.

23

0311316

SNAP RING

(SUB FOR TH109059)

1шт.

24

0329616

SNAP RING

(SUB FOR TH110270)

1шт.

29

0251311

SEAL

(SUB FOR TH109063)

1шт.

30

0311320

O-RING

(SUB FOR TH109064)

1шт.

31

CH17447

PACKING

(SUB FOR TH111724)

1шт.

36

0311321

PISTON

(SUB FOR TH109065)

1шт.

37

0311322

BUSHING

(SUB FOR TH109066)

1шт.

38

0311323

PLATE

(SUB FOR TH109067)

3шт.

39

0311324

PLATE

(SUB FOR TH109068)

3шт.

42

0224924

O-RING

(SUB FOR TH105729)

1шт.

43

4S00218

O-RING

( 0310017 NO LONGER AVAILABLE) (SUB FOR TH109070)

1шт.

44

CH17167

O-RING

1шт.

65

0425117

O-RING

(SUB FOR TH109085 AND 0311338)

1шт.

70

HYDRAULIC MOTOR

( AT217308 NLA) REMANUFACTURED, (SUB FOR AT130606) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS SEE FOLLOWING PAGE)

1шт.
