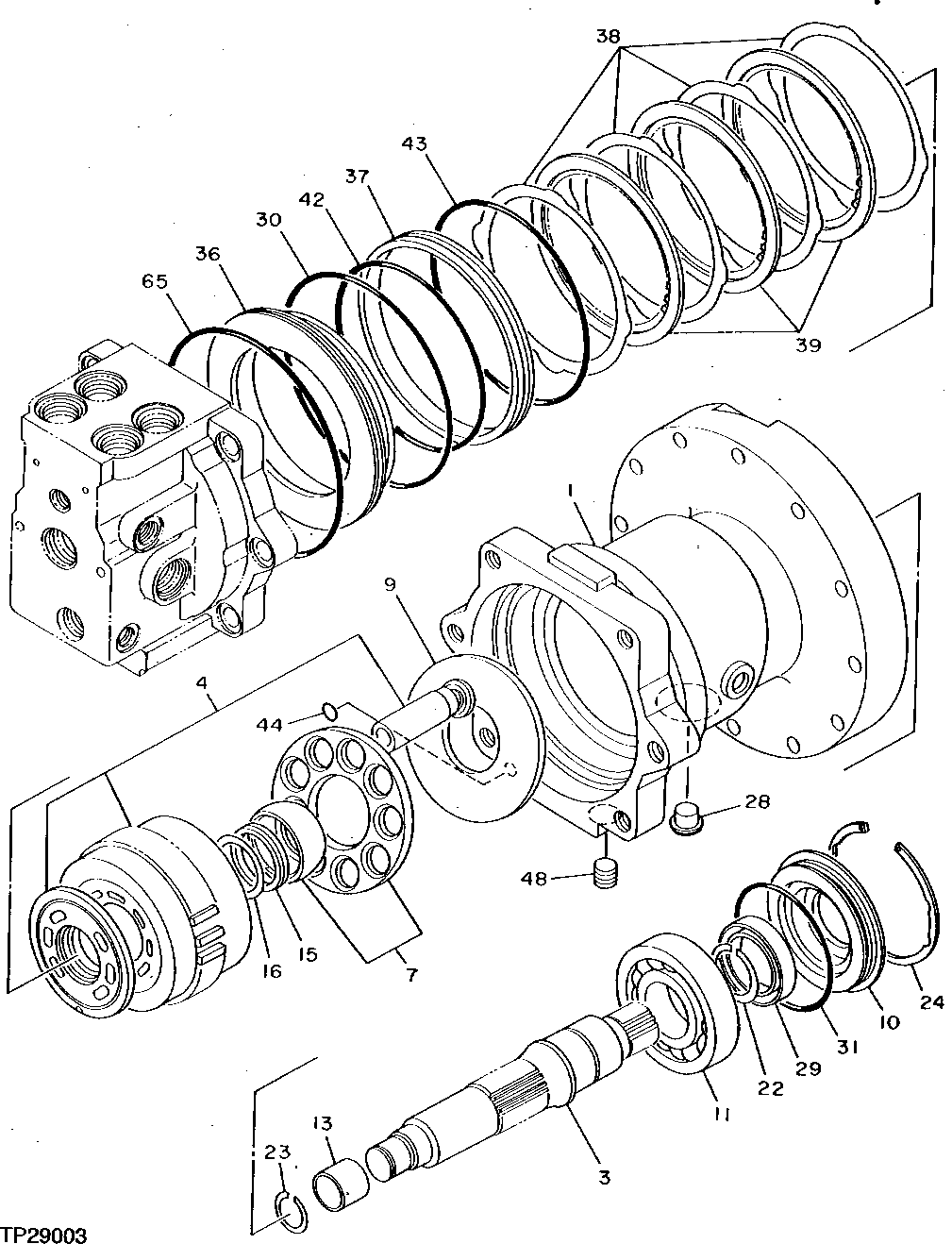

Запчасти John Deere 95D 6 - SWING MOTOR 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

CASE

( TH109044 NO LONGER AVAILABLE)

1шт.

3

0311303

SHAFT

(SUB FOR TH109046)

1шт.

4

0311304

CYLINDER BLOCK

(SUB FOR TH109047)

1шт.

7

0311305

PLATE

(SUB FOR TH109048)

1шт.

9

0311306

WASHER

(SUB FOR TH109049)

1шт.

10

0311307

CASE

(SUB FOR TH109050)

1шт.

11

JD9480

BALL BEARING

(SUB FOR TH109051)

1шт.

13

0311309

BEARING RACE

(SUB FOR TH109052)

1шт.

15

0311311

SPRING

(SUB FOR TH109054)

1шт.

16

0311312

WASHER

(SUB FOR TH109055)

1шт.

22

40M7047

SNAP RING

(SUB FOR TH108871)

1шт.

23

0311316

SNAP RING

(SUB FOR TH109059)

1шт.

24

0311317

SNAP RING

(SUB FOR TH109060)

1шт.

28

PLUG

(SUB AT217308)

1шт.

29

0251311

SEAL

(SUB FOR TH109063)

1шт.

30

0311320

O-RING

(SUB FOR TH109064)

1шт.

31

AT264319

O-RING

(SUB FOR T110447)

1шт.

36

0311321

PISTON

(SUB FOR TH109065)

1шт.

37

0311322

BUSHING

(SUB FOR TH109066)

1шт.

38

0311323

PLATE

(SUB FOR TH109067)

4шт.

39

0311324

PLATE

(SUB FOR TH109068)

3шт.

42

0224924

O-RING

(SUB FOR TH105729)

1шт.

43

4S00218

O-RING

( 0310017 NO LONGER AVAILABLE) (SUB FOR TH109070)

1шт.

44

CH11568

PACKING

1шт.

48

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

50

MOTOR

REMANUFACTURED (NOT ILLUSTRATED) ( AT126329 AND AT130606 NO LONGER AVAILABLE) (CONTAINED ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGE) (SUB AT217308 ALONG WITH TH111897, TH111890, TH109540, (2) T77858, TH110496, TH111891 AND TH111

1шт.

65

0425117

O-RING

(SUB FOR TH109085 AND 0311338)

1шт.
