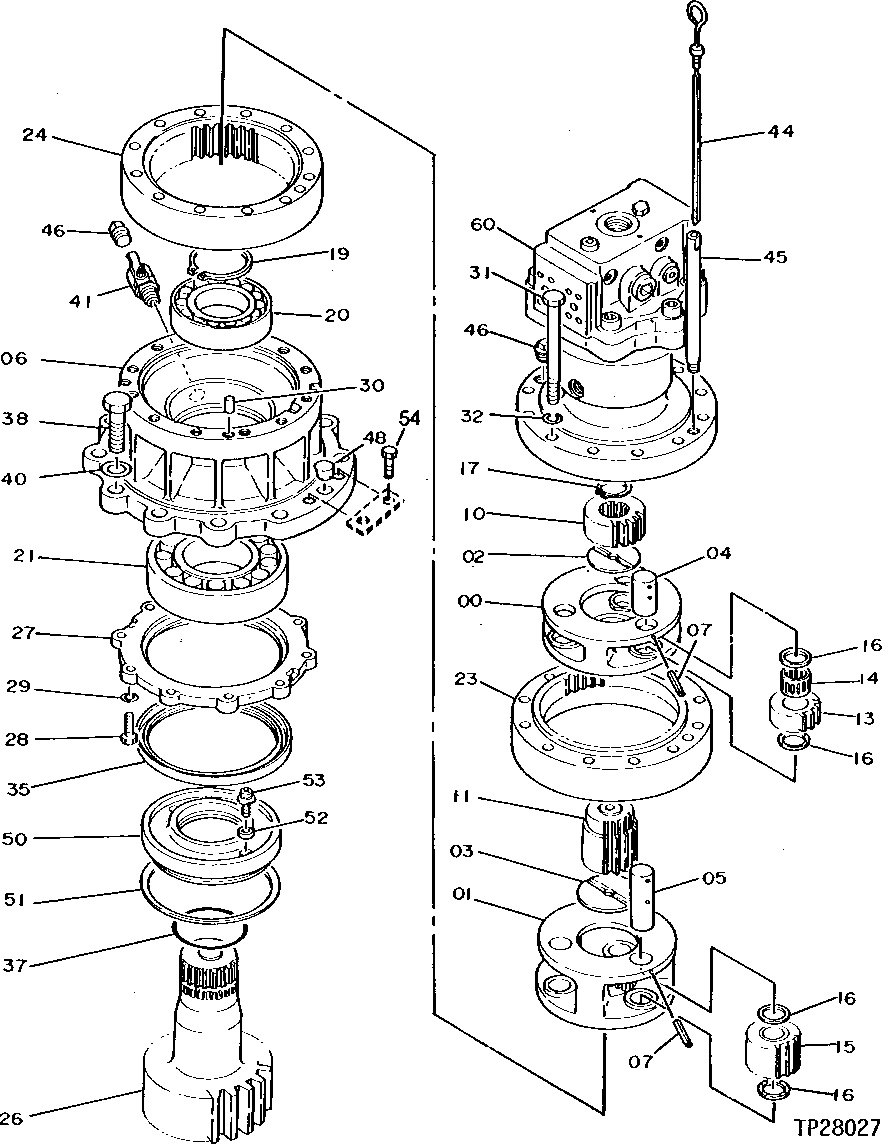

Запчасти John Deere 95D 2 - SWING DRIVE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

0

2023962

PLANET PINION CARRIER

(SUB FOR TH108257)

1шт.

1

2024894

PLANET PINION CARRIER

(SUB FOR TH108258)

1шт.

2

4641995

PLATE

(SUB FOR TH108259 OR 4176070)

1шт.

3

4195372

PLATE

(SUB FOR TH108260)

1шт.

4

4186262

PIN

(SUB FOR TH108261)

3шт.

5

4207801

PIN

(SUB FOR TH108262)

3шт.

6

1015518

HOUSING

(SUB FOR TH108263)

1шт.

7

34M7036

SPRING PIN

5 X 45 MM, (SUB FOR TH108264)

6шт.

10

3037606

SUN GEAR

(SUB FOR TH108265)

1шт.

11

3038482

SUN GEAR

(SUB FOR TH108266)

1шт.

13

3037605

GEAR

(SUB FOR TH108267)

3шт.

14

4184840

NEEDLE BEARING

(SUB FOR TH108268)

3шт.

15

9727159

GEAR

(SUB FOR TH108269)

3шт.

16

4176071

PLATE

(SUB FOR TH108270)

12шт.

17

40M7046

SNAP RING

(SUB FOR TH100405)

1шт.

19

40M7150

SNAP RING

1шт.

20

TH108271

SPHERICAL ROLLER BEARING

1шт.

21

TH108272

SPHERICAL ROLLER BEARING

1шт.

23

2024895

RING GEAR

(SUB FOR TH108273)

1шт.

24

2023961

GEAR

(SUB FOR TH108274)

1шт.

26

2023963

SHAFT

(SUB FOR TH108275)

1шт.

27

3037604

COVER

(SUB FOR TH108276)

1шт.

28

J901032

SCREW

(SUB FOR TH102040)

10шт.

29

12M7066

LOCK WASHER

10 MM

10шт.

30

J401232

DOWEL PIN

(SUB FOR TH110080)

2шт.

31

19M8243

CAP SCREW

M14 X 170

12шт.

32

12H317

LOCK WASHER

9/16"

12шт.

35

AT130902

SEAL

(SUB FOR TH108277)

1шт.

37

CH17447

PACKING

(SUB FOR TH111724)

1шт.

38

19M8638

CAP SCREW

M20 X 65, (SUB FOR 19M8102)

10шт.

40

N231749

WASHER

(SUB FOR T33089)

10шт.

41

4194712

DRAIN VALVE

(SUB FOR TH108278)

1шт.

44

3074225

LEVEL GAUGE

(SUB FOR TH111703) (SUB FOR AT176181)

1шт.

45

4228687

LINE

(SUB FOR TH111897)

1шт.

46

94-2024

FITTING PLUG

(SUB FOR TH101292)

2шт.

48

PACKING

( TH108281 NO LONGER REQUIRED)

2шт.

50

3038685

SLEEVE

(SUB FOR TH108282)

1шт.

51

4204074

SNAP RING

(SUB FOR TH108283)

1шт.

52

4204644

MAGNET

(SUB FOR TH108284)

2шт.

53

21M7250

SCREW

M4 X 12, (SUB FOR 4204645, ALONG WITH 12H315 AND 24M7117)

2шт.

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

24M7117

WASHER

4.300 X 9 X 0.800 MM

2шт.

54

37H99

SCREW

0.100" X 1/4"

2шт.

60

MOTOR

(SUB AT217308, TH111897, TH111890, TH109540, (2) T77858, TH110496, TH111891 AND TH111892) ( AT126329 AND AT130606 NO LONGER AVAILABLE)

1шт.

HYDRAULIC MOTOR

REMANUFACTURED ( AT217308 NLA) (SUB FOR AT130606)

1шт.
