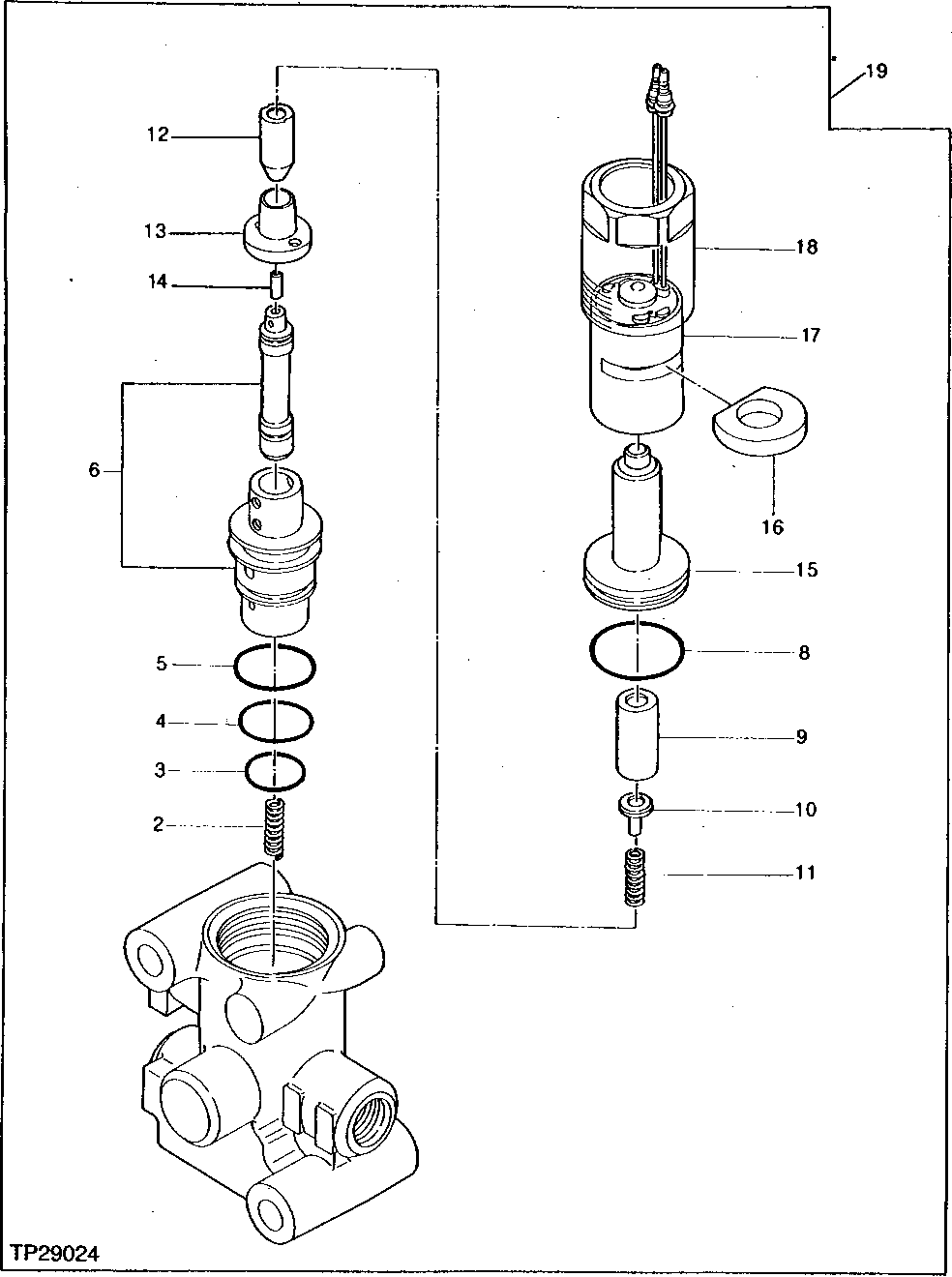

Запчасти John Deere 95D 90 - AXLE LOCK SOLENOID VALVE 3360 - EXCAVATOR 33

2

0308711

SPRING

(SUB FOR TH109259)

1шт.

3

CH11570

O-RING

1шт.

4

985099

O-RING

(SUB FOR TH101479)

1шт.

5

AT264333

O-RING

(SUB FOR TH100096)

1шт.

6

VALVE SPOOL

( AT127364 NO LONGER AVAILABLE)

1шт.

8

0308713

O-RING

(SUB FOR TH109261)

1шт.

9

PIPE

( 0308714 NO LONGER AVAILABLE) (SUB FOR TH109262)

1шт.

4488303

LINE

1шт.

10

4488306

VALVE SEAT

(SUB FOR TH109263, 0308715 OR 4605187)

1шт.

11

4488310

SPRING

(SUB FOR TH109264 OR 0308716)

1шт.

12

0308717

PLUNGER

(SUB FOR TH109265)

1шт.

13

0308718

STOP

(SUB FOR TH109266)

1шт.

14

0308719

PIN

(SUB FOR TH109267)

1шт.

15

HOUSING

( TH109268 NO LONGER AVAILABLE)

1шт.

16

4488304

SPACER

(SUB FOR TH109269 OR 0308721)

1шт.

17

0308722

SOLENOID

(SUB FOR TH109270)

1шт.

18

0308724

SCREW

(SUB FOR TH109272)

1шт.

19

4200389

SOLENOID VALVE

(SUB FOR AT126335)

1шт.
