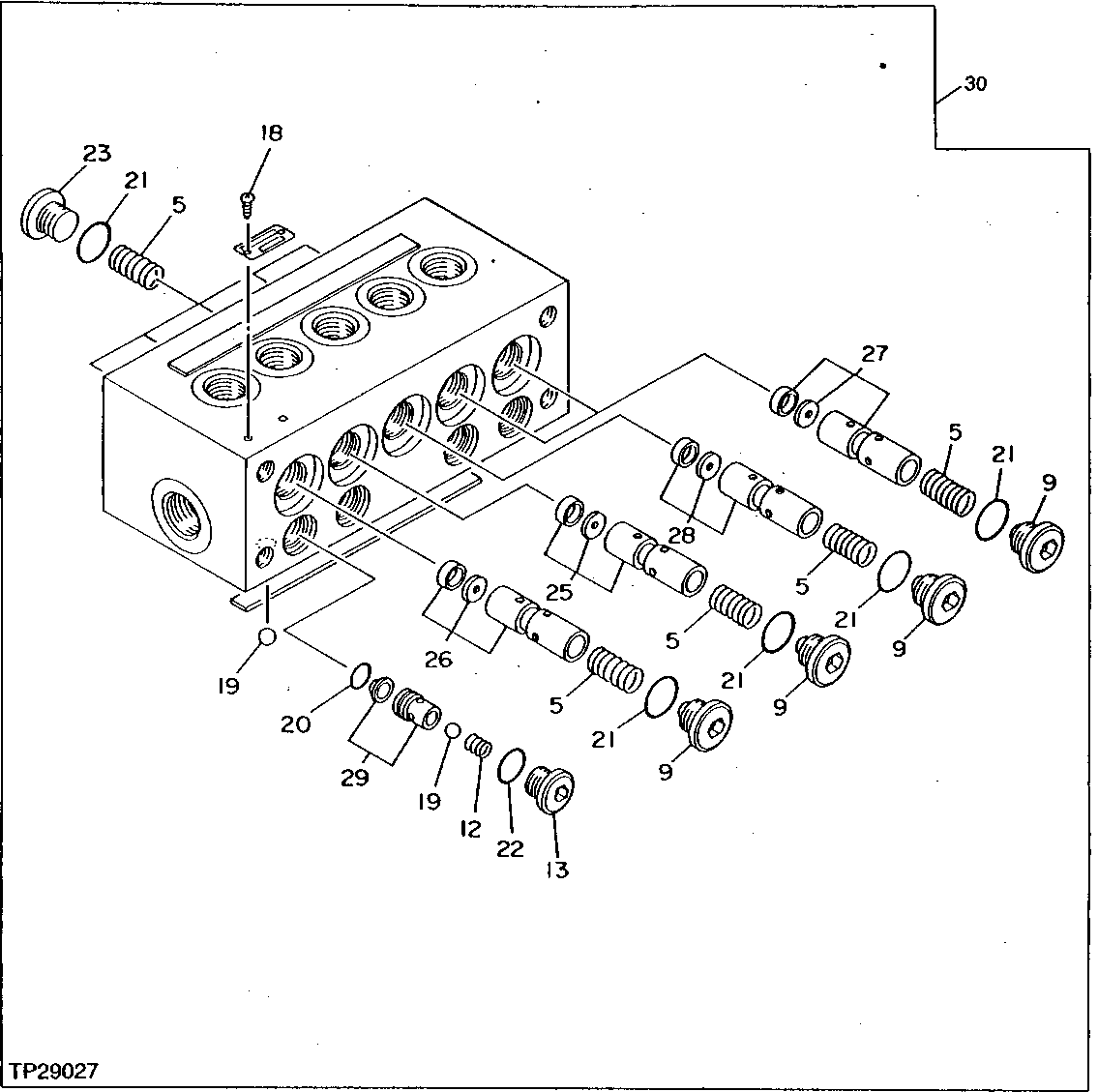

Запчасти John Deere 95D 88 - PILOT HYDRAULICS FLOW CONTROL VALVE 3360 - EXCAVATOR 33

5

0309801

SPRING

(SUB FOR TH109280)

10шт.

9

0309802

PIPE PLUG

(SUB FOR TH109281)

5шт.

12

0309803

SPRING

(SUB FOR TH109282)

4шт.

13

AT49216

FITTING PLUG

(SUB FOR TH109283) (CONTAINS O-RING)

4шт.

T70177

O-RING

(NOT ILLUSTRATED)

1шт.

18

0208717

SCREW

(SUB FOR TH102697)

2шт.

19

L38718

BALL

(SUB FOR TH109294)

9шт.

20

CH11569

PACKING

4шт.

21

CH11570

O-RING

10шт.

22

4S00110

O-RING

(SUB FOR TH109284 OR R26448, THIS APPLICATION)

4шт.

23

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805)

5шт.

25

0309806

PLUNGER

(SUB FOR TH109286)

1шт.

26

0309807

PLUNGER

(SUB FOR TH109287)

1шт.

27

0326803

PLUNGER

(SUB FOR AT133812)

2шт.

28

4212780

PLUNGER

(SUB FOR TH109289) (SUB FOR TH111865)

1шт.

29

0309810

FILTER

(SUB FOR TH109290)

4шт.

30

4192576

HYD ACTUATED CONTROL VALVE

(SUB FOR AT126286)

1шт.
