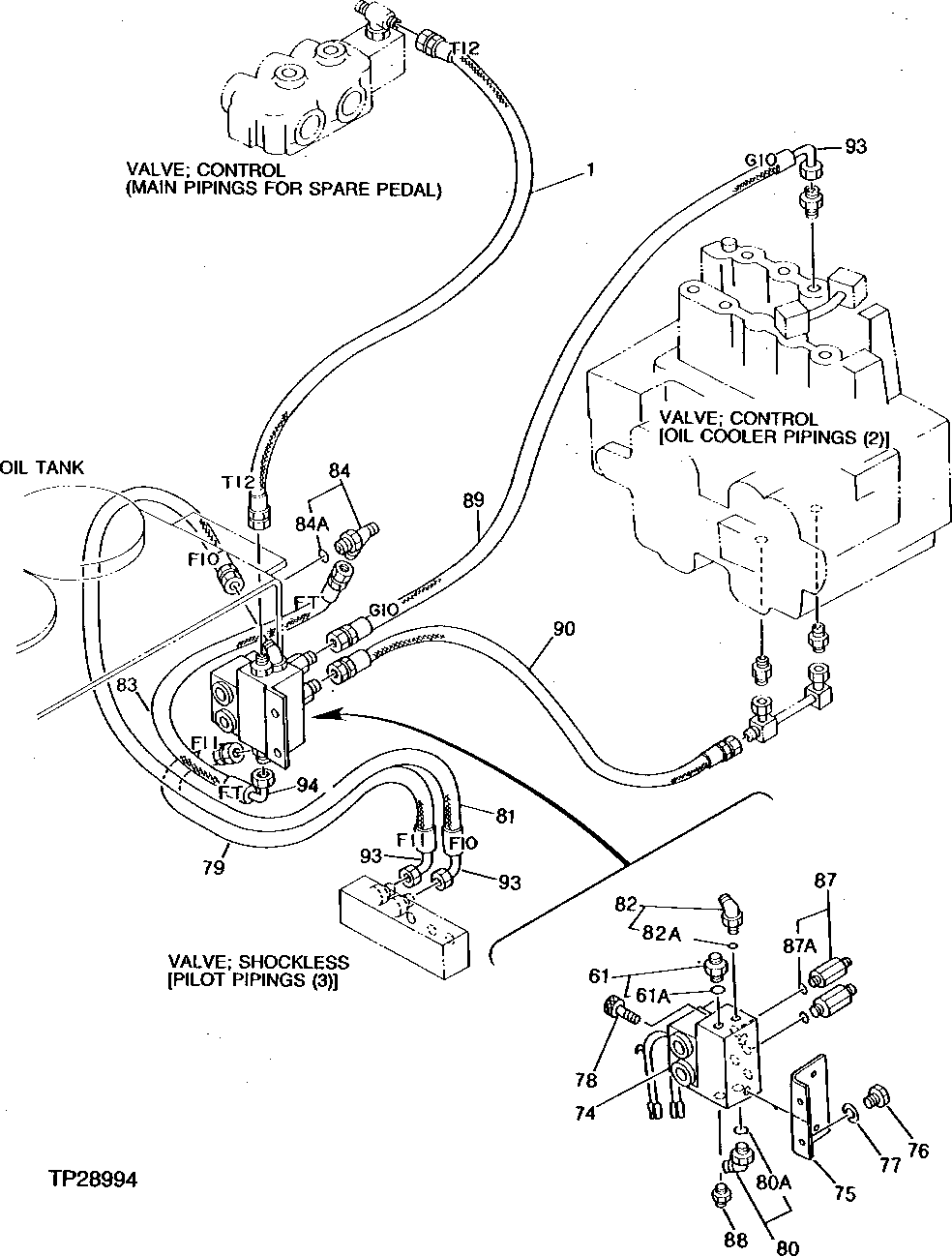

Запчасти John Deere 95D 68 - INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

1

AH97777

HYDRAULIC HOSE

7/16" X 407 MM (16") X 7/16"

1шт.

61

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

61A

M800650

PACKING

1шт.

74

4199095

SOLENOID VALVE

(SUB FOR AT126330)

1шт.

75

4217247

ANGLE

(SUB FOR AT126673)

1шт.

76

19M7938

CAP SCREW

M10 X 20

2шт.

77

12M7066

LOCK WASHER

10 MM

2шт.

78

19M8506

SCREW

M8 X 60

2шт.

79

AT37543

HYDRAULIC HOSE - FABRICATE

9/16" X 483 MM (19") X 9/16", (SUB FOR AT126676, ALONG WITH AE24616)

1шт.

80

4200472

ELBOW FITTING

(SUB FOR TH111301)

1шт.

80A

M800650

PACKING

1шт.

81

AH108250

HOSE

9/16" X 787 MM (31") X 9/16", (SUB FOR 4217324 ALONG WITH AE24616)

1шт.

82

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

82A

M800650

PACKING

1шт.

83

4203161

HYDRAULIC HOSE

(SUB FOR TH108352) (SUB FOR AT126677, ALONG WITH AH89069)

1шт.

84

4208909

TEE FITTING

(SUB FOR AT126454)

1шт.

84A

CH11570

O-RING

1шт.

87

4223934

ADAPTER FITTING

(SUB FOR AT134092)

2шт.

87A

M800650

PACKING

1шт.

88

X4-4FTX-S

ADAPTER FITTING

(SUB FOR X0103-4-4) (SUB FOR TH100963)

1шт.

89

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR AT134126, ALONG WITH (2) AE24616)

1шт.

90

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR AT134087)

1шт.

93

AE24616

ELBOW FITTING

4шт.

94

AH89069

ELBOW FITTING

1шт.
