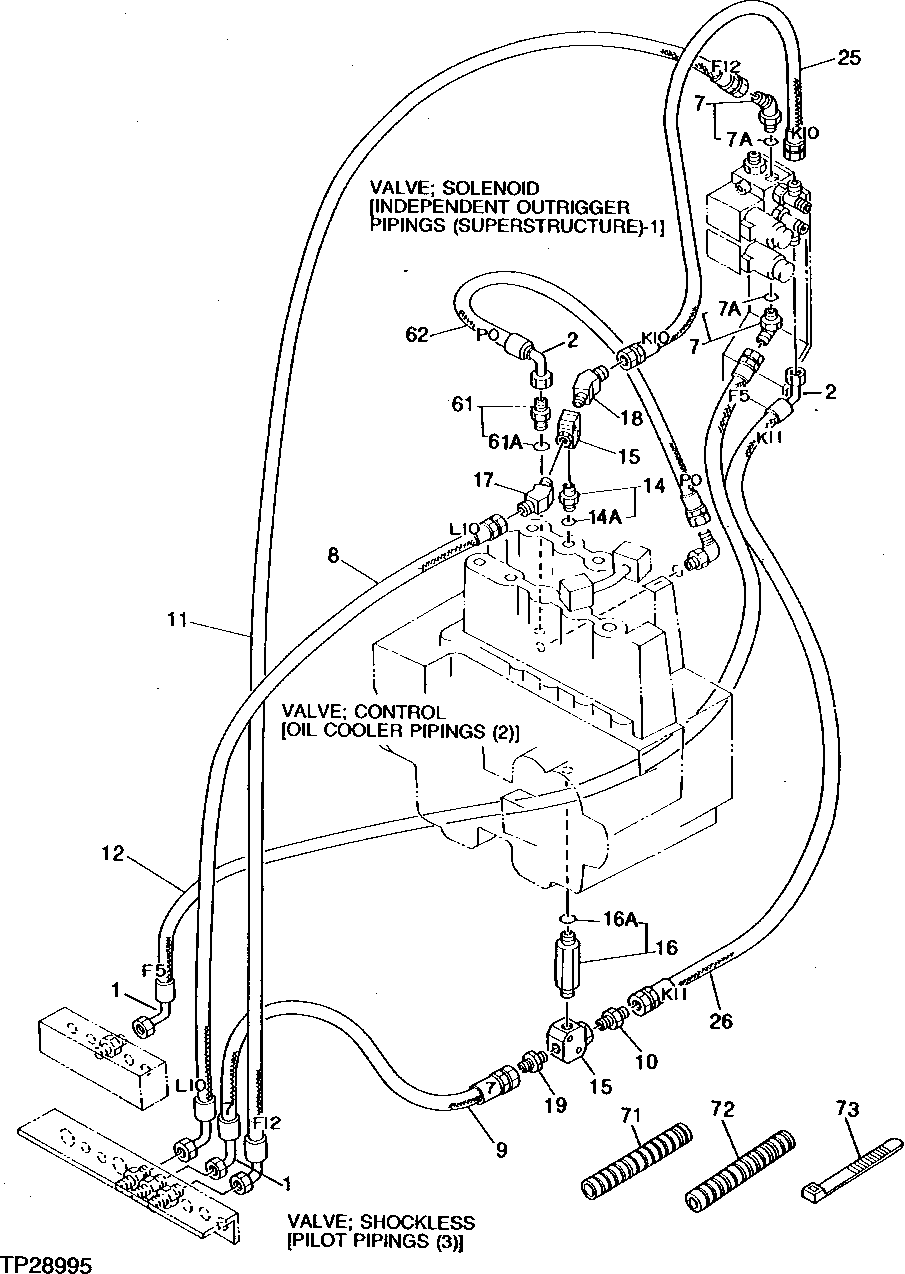

Запчасти John Deere 95D 64 - INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

1

AE24616

ELBOW FITTING

2шт.

2

AH89069

ELBOW FITTING

2шт.

7

4200472

ELBOW FITTING

(SUB FOR TH111301)

2шт.

7A

M800650

PACKING

1шт.

8

AT134113

HYDRAULIC HOSE - FABRICATE

1шт.

9

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR 4208416, ALSO ORDER AE24616)

1шт.

10

X4-4FTX-S

ADAPTER FITTING

(SUB FOR TH100963)

1шт.

11

AT72803

HYDRAULIC HOSE - FABRICATE

9/16" X 1 499 MM (59") X 9/16", (SUB FOR AT134101)

1шт.

12

AT48717

HYDRAULIC HOSE - FABRICATE

9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR AT134102, ALONG WITH AE24616)

1шт.

14

4219344

ADAPTER FITTING

(SUB FOR AT126727)

1шт.

14A

CH11570

O-RING

1шт.

15

4219700

FLOW CONTROL HYD. VALVE

(SUB FOR AT126744)

2шт.

16

4230003

ADAPTER FITTING

(SUB FOR AT134114)

1шт.

16A

CH11570

O-RING

1шт.

17

4219342

ELBOW FITTING

(SUB FOR AT126725)

1шт.

18

4154655

ELBOW FITTING

(SUB FOR TH101056)

1шт.

19

4215648

ADAPTER FITTING

(SUB FOR AT126652)

1шт.

25

AT126482

HYDRAULIC HOSE - FABRICATE

7/16" X 500 MM (19-3/4") X 7/16", (SUB FOR AT134103)

1шт.

26

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR AT134104, ALONG WITH AH89069)

1шт.

61

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

61A

M800650

PACKING

1шт.

62

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR AT134107, ALONG WITH AH89069)

1шт.

71

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222) ( TH100996 NO LONGER AVAILABLE)

8шт.

72

E90991

HOSE GUARD

(SUB FOR TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)

ARшт.

73

H77698

TIE BAND

10шт.
