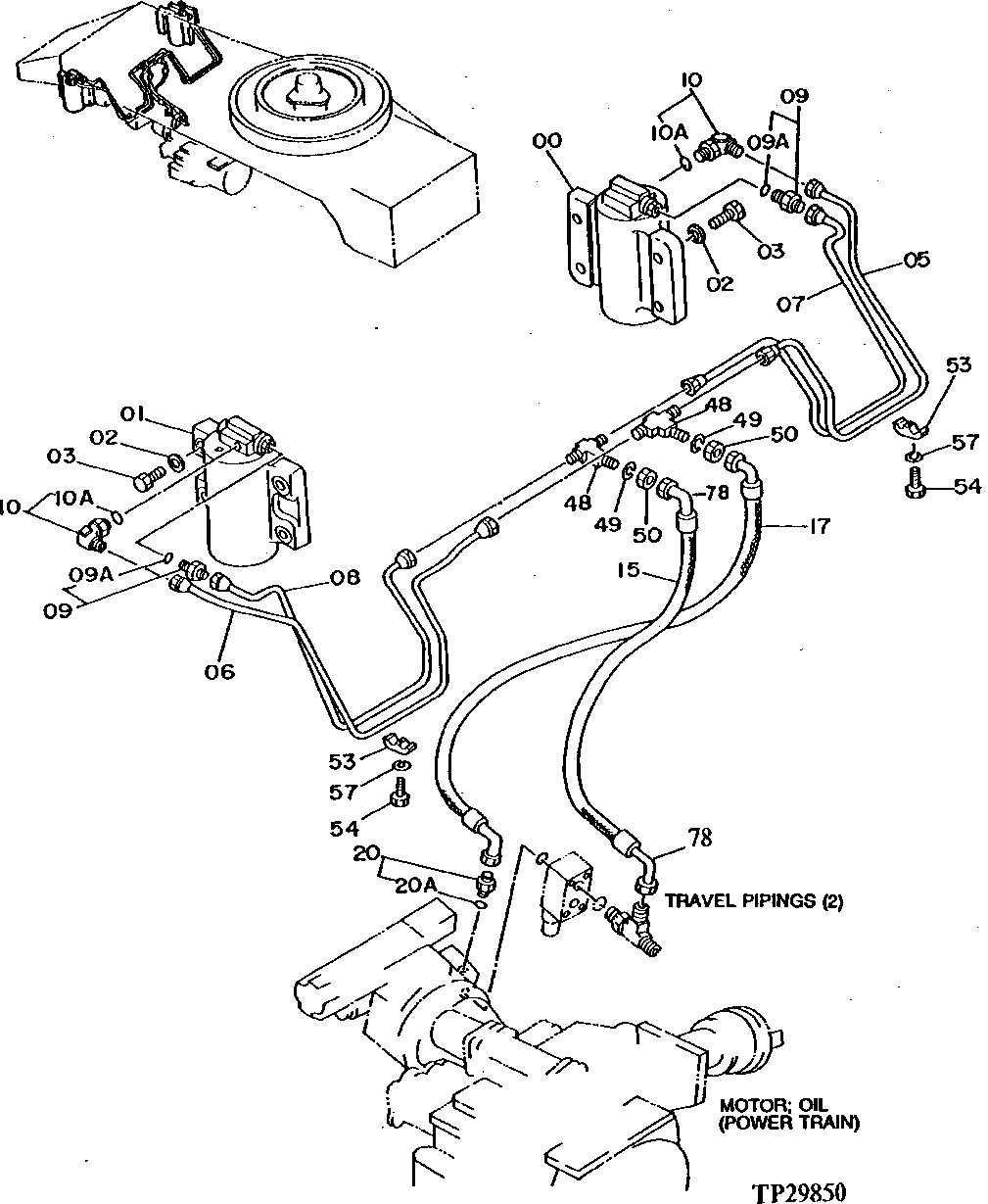

Запчасти John Deere 95D 56 - PROPEL AND AXLE LOCK HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

0

4178119

CYLINDER

(SUB FOR AT126241) (AXLE LOCK)

1шт.

1

4178120

CYLINDER

(SUB FOR AT126242) (AXLE LOCK)

1шт.

2

T56006

WASHER

(SUB FOR AT121240)

8шт.

3

19M8420

CAP SCREW

M22 X 80

8шт.

5

8037218

OIL LINE

(SUB FOR AT127013)

1шт.

6

8037219

OIL LINE

(SUB FOR AT127014)

1шт.

7

8037220

OIL LINE

(SUB FOR AT127015)

1шт.

8

8037221

OIL LINE

(SUB FOR AT127016)

1шт.

9

4189438

ADAPTER FITTING

(SUB FOR AT126280)

2шт.

9A

M800650

PACKING

1шт.

10

4209704

ELBOW FITTING

(SUB FOR AT126472)

2шт.

10A

CH11570

O-RING

1шт.

15

AE42282

HYDRAULIC HOSE

7/16" X 900 MM (35-1/2") X 7/16", (SUB FOR AT126478, ALONG WITH (2) AH89069)

1шт.

17

4248625

HYDRAULIC HOSE

(SUB FOR AT126474)

1шт.

20

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

20A

M800650

PACKING

1шт.

48

4215394

TEE FITTING

(SUB FOR AT126650)

2шт.

49

12H301

LOCK WASHER

1/2"

2шт.

50

14H1047

NUT

7/16", (SUB FOR AT126466)

2шт.

53

4043942

CLAMP

(SUB FOR TH104032)

2шт.

54

19M7376

CAP SCREW

M8 X 22, (SUB FOR AT133604)

2шт.

57

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

78

AH89069

ELBOW FITTING

2шт.
