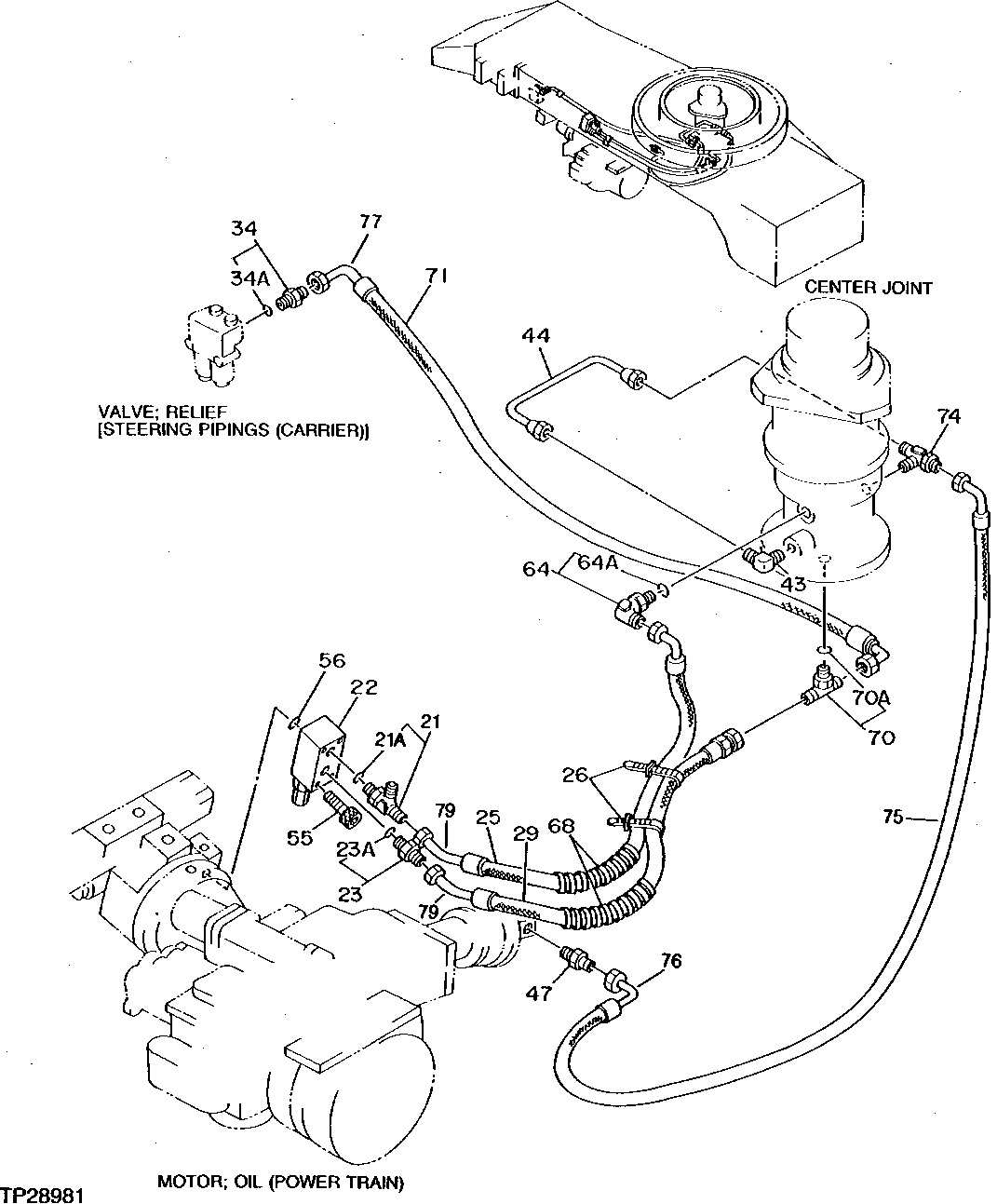

Запчасти John Deere 95D 54 - PROPEL AND AXLE LOCK HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

21

4208909

TEE FITTING

(SUB FOR AT126454)

1шт.

21A

CH11570

O-RING

1шт.

22

4196456

FLOW CONTROL HYD. VALVE

(SUB FOR AT126317)

1шт.

23

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

23A

M800650

PACKING

1шт.

25

AT69452

HYDRAULIC HOSE - FABRICATE

9/16" X 1 225 MM (48-1/4") X 9/16", (SUB FOR AT126477, ALONG WITH X4V6X-S)

1шт.

26

H77698

TIE BAND

4шт.

29

AH96002

HYDRAULIC HOSE

7/16" X 1 118 MM (44") X 7/16", (SUB FOR AT126473, ALONG WITH X4V6X-S)

1шт.

34

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

34A

CH11570

O-RING

1шт.

43

4086584

ELBOW FITTING

(SUB FOR TH104012)

1шт.

44

8037281

OIL LINE

(SUB FOR AT127018)

1шт.

47

4182731

ADAPTER FITTING

(SUB FOR AT126264)

1шт.

55

19M8541

SCREW

M6 X 50

4шт.

56

4506408

O-RING

(SUB FOR TH101490)

1шт.

64

A852333

ELBOW FITTING

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

64A

CH11570

O-RING

1шт.

68

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222) ( TH100996 NO LONGER AVAILABLE)

6шт.

70

4224382

TEE FITTING

(SUB FOR AT126766)

1шт.

70A

CH11570

O-RING

1шт.

71

AT72803

HYDRAULIC HOSE - FABRICATE

9/16" X 1 499 MM (59") X 9/16", (SUB FOR AT126762, ALONG WITH AE24616)

1шт.

74

4226223

TEE FITTING

(SUB FOR AT126790)

1шт.

75

AT67065

HYDRAULIC HOSE - FABRICATE

9/16" X 508 MM (20") X 9/16", (SUB FOR AT126788, ALONG WITH AU43156)

1шт.

76

AU43156

ELBOW FITTING

1шт.

77

AE24616

ELBOW FITTING

1шт.

79

X4V6X-S

ELBOW FITTING

(SUB FOR AT128355 OR X3703-4-4)

2шт.
