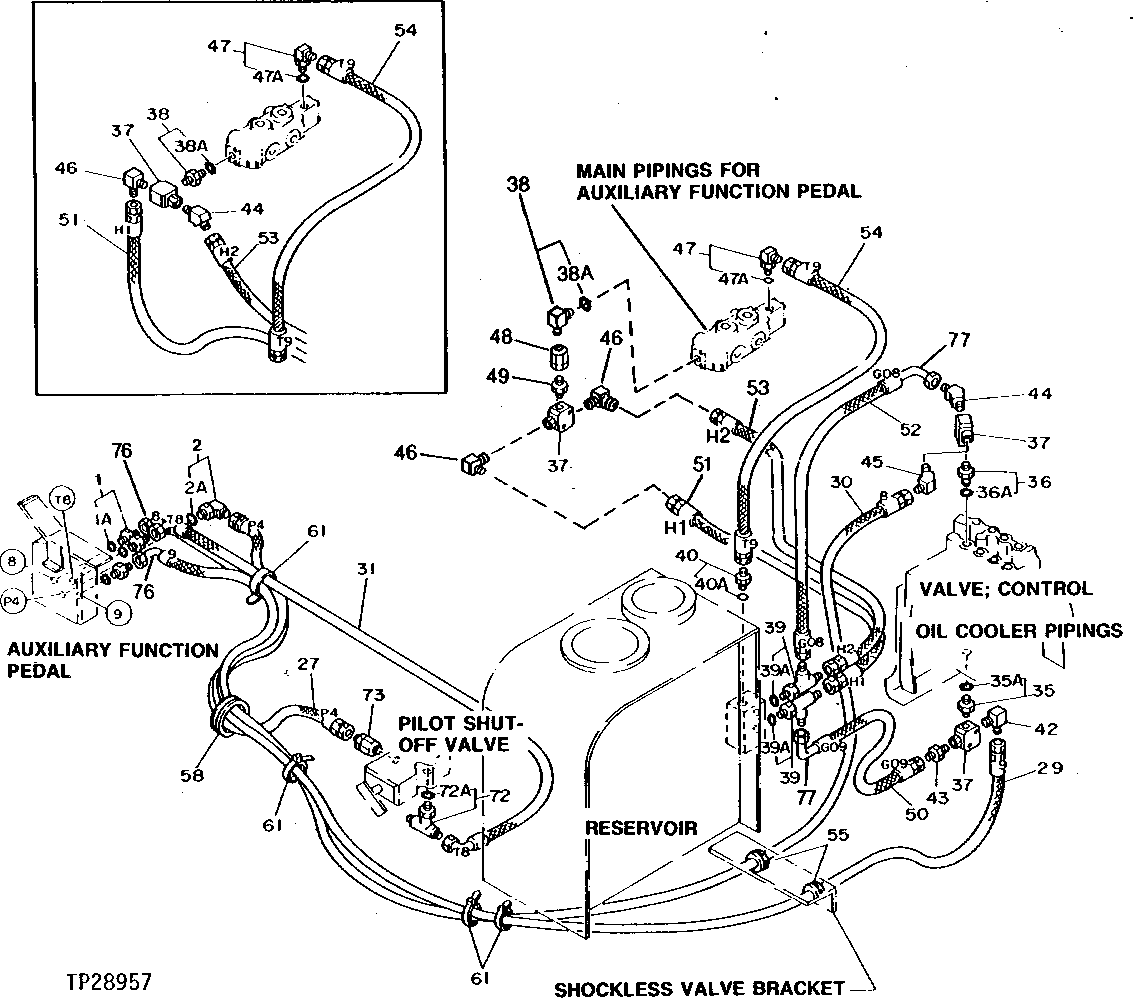

Запчасти John Deere 95D 50 - AUXILIARY FUNCTION PILOT HOSES AND LINES 3360 - EXCAVATOR 33

1

4200467

ADAPTER FITTING

(SUB FOR TH108417)

3шт.

1A

M800650

PACKING

1шт.

2

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

2A

M800650

PACKING

1шт.

27

AT57860

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126731)

1шт.

29

AT61195

HYDRAULIC HOSE - FABRICATE

9/16" X 2 794 MM (110") X 9/16", (SUB FOR AT126733, ALONG WITH AE24616)

1шт.

30

AA36172

HYDRAULIC HOSE

9/16" X 3 300 MM (130") X 9/16", (SUB FOR AT126734, ALONG WITH AE24616)

1шт.

31

AT69452

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126735)

1шт.

35

4219343

ADAPTER FITTING

(SUB FOR AT134323)

1шт.

35A

CH11570

O-RING

1шт.

36

4219344

ADAPTER FITTING

(SUB FOR AT126727)

1шт.

36A

CH11570

O-RING

1шт.

37

4219700

FLOW CONTROL HYD. VALVE

(SUB FOR AT126744)

3шт.

38

4152200

ADAPTER FITTING

(SUB FOR AT126210) (USE WITH AT126343 CONTROL VALVE)

1шт.

4174585

ADAPTER FITTING

(SUB FOR AT130826) (USE WITH AT130824 CONTROL VALVE)

1шт.

38A

M800650

PACKING

1шт.

39

4203171

TEE FITTING

(SUB FOR TH110578)

2шт.

39A

M800650

PACKING

1шт.

40

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

40A

M800650

PACKING

1шт.

42

4215652

ELBOW FITTING

(SUB FOR AT126655)

1шт.

43

X4-4FTX-S

ADAPTER FITTING

(SUB FOR TH100963)

1шт.

44

4154655

ELBOW FITTING

(SUB FOR TH101056) (USE WITH AT126343 CONTROL VALVE)

2шт.

4154655

ELBOW FITTING

(SUB FOR TH101056) (USE WITH AT130824 CONTROL VALVE)

1шт.

45

4219342

ELBOW FITTING

(SUB FOR AT126725)

1шт.

46

4154656

ELBOW FITTING

(SUB FOR TH101588) (USE WITH AT126343 CONTROL VALVE)

1шт.

4154656

ELBOW FITTING

(SUB FOR TH101588) (USE WITH AT130824 CONTROL VALVE)

2шт.

47

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

47A

M800650

PACKING

1шт.

48

4225316

HYD ACTUATED CONTROL VALVE

(SUB FOR AT130827) (USE WITH AT130824 CONTROL VALVE)

1шт.

49

T116057

FITTING

(SUB FOR TH101997) (USE WITH AT130824 CONTROL VAVLE)

1шт.

50

AE42718

HYDRAULIC HOSE

(SUB FOR AT134324 ALONG WITH AH89069)

1шт.

51

AH111269

HYDRAULIC HOSE

(SUB FOR AT134325)

1шт.

AE42282

HYDRAULIC HOSE

(USE WITH AT130824 CONTROL VALVE)

1шт.

52

AT126850

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126732, ALONG WITH AH89069)

1шт.

53

AE42282

HYDRAULIC HOSE

(SUB FOR AT134326)

1шт.

AT126850

HYDRAULIC HOSE - FABRICATE

(USE WITH AT130824 CONTROL VALVE)

1шт.

54

AE42281

HYDRAULIC HOSE

(SUB FOR AT126728)

1шт.

55

4208985

GROMMET

(SUB FOR AT126462)

2шт.

58

4509404

GROMMET

(SUB FOR TH100553)

1шт.

61

H77698

TIE BAND

10шт.

72

4208911

TEE FITTING

(SUB FOR AT126456)

1шт.

72A

CH11570

O-RING

1шт.

73

4188687

FILTER

(SUB FOR TH108433)

1шт.

76

AE24616

ELBOW FITTING

2шт.

77

AH89069

ELBOW FITTING

2шт.
