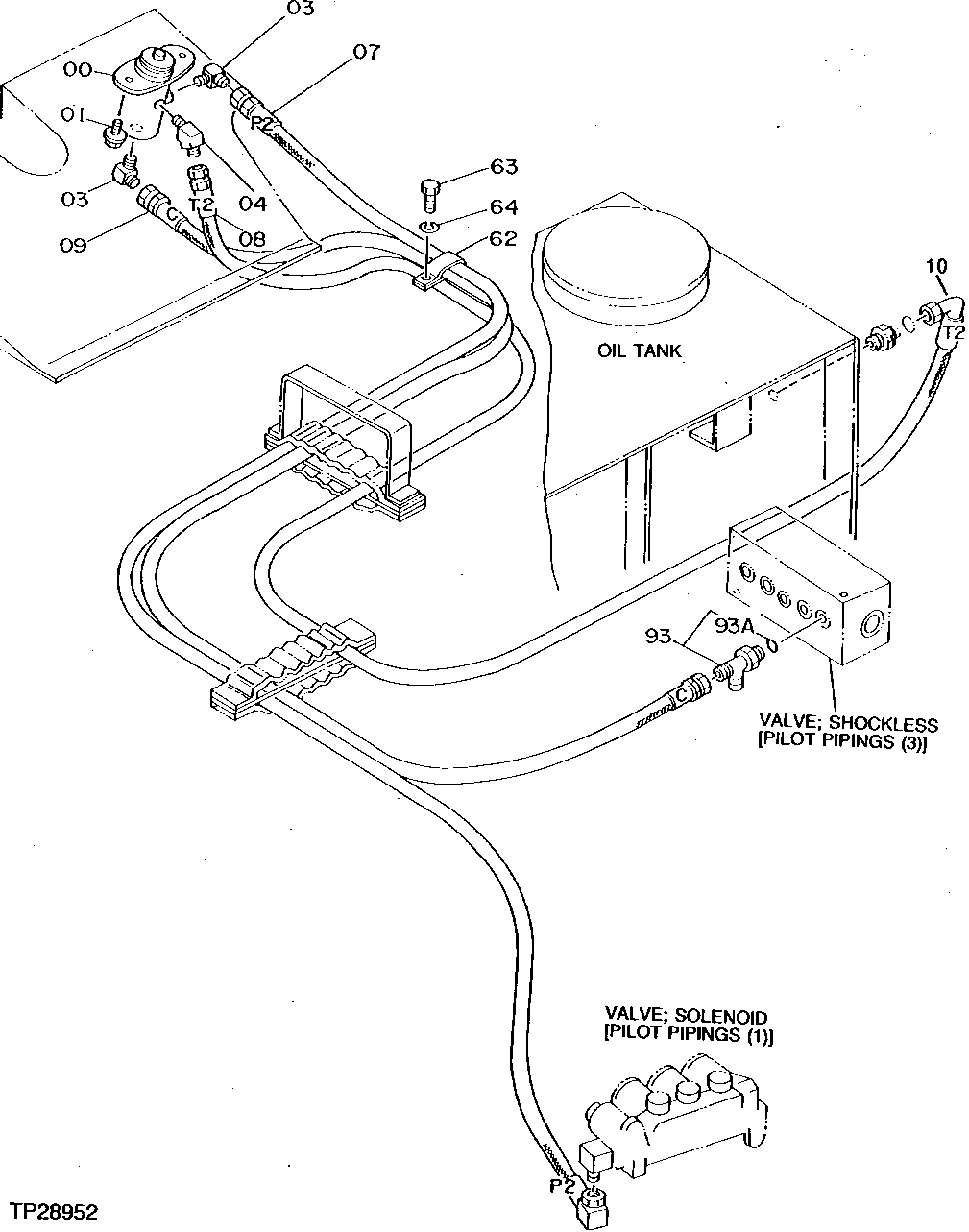

Запчасти John Deere 95D 42 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

0

4178125

HYD ACTUATED CONTROL VALVE

(SUB FOR AT126243)

1шт.

1

19M7402

CAP SCREW

M10 X 25

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

3

T115889

ELBOW FITTING

(SUB FOR TH101035)

2шт.

4

4157919

ELBOW FITTING

(SUB FOR TH104011)

1шт.

7

AT48424

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126428)

1шт.

8

AH89075

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126429, ALONG WITH AE24616)

1шт.

9

AT130683

HYDRAULIC HOSE - FABRICATE

9/16" X 2 350 MM (92-1/2") X 9/16", (SUB FOR AT126430)

1шт.

10

AE24616

ELBOW FITTING

1шт.

62

4190292

CLIP

(SUB FOR TH108321)

1шт.

63

19M8324

CAP SCREW

1шт.

64

12M7066

LOCK WASHER

1шт.

93

4208909

TEE FITTING

(SUB FOR AT126454)

1шт.

93A

CH11570

O-RING

1шт.
