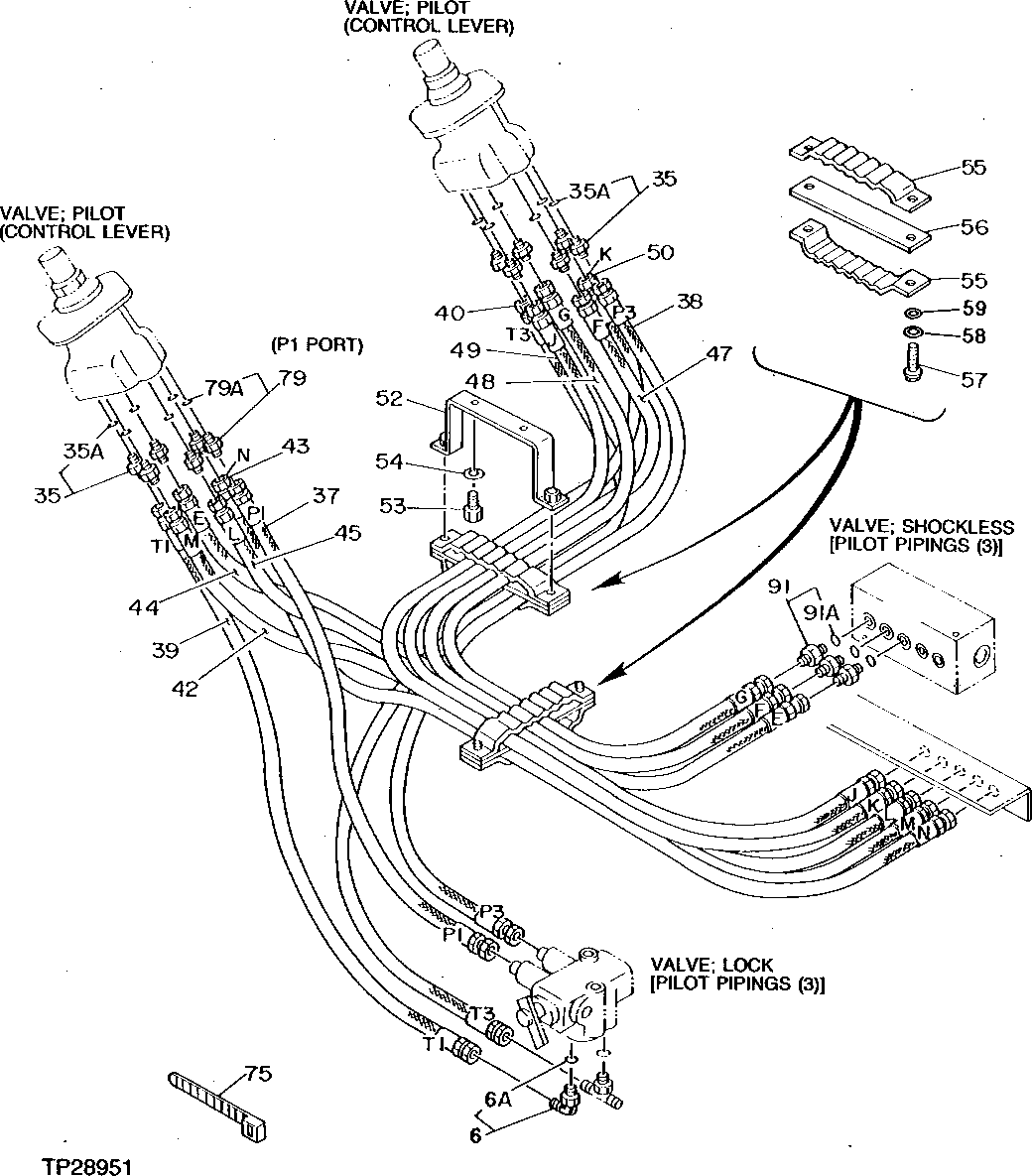

Запчасти John Deere 95D 40 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

6

A852333

ELBOW FITTING

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

6A

CH11570

O-RING

1шт.

35

4200467

ADAPTER FITTING

(SUB FOR TH108417)

11шт.

35A

M800650

PACKING

1шт.

37

AE42718

HYDRAULIC HOSE

(SUB FOR AT126805)

1шт.

38

AT46299

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126418)

1шт.

39

AT48428

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126419)

1шт.

40

AT48717

HYDRAULIC HOSE - FABRICATE

1шт.

42

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR AT126420 OR AH99310, THIS APPLICATION)

1шт.

43

AH83490

HYDRAULIC HOSE

(SUB FOR AT126421)

1шт.

44

AH83490

HYDRAULIC HOSE

(SUB FOR AT126422)

1шт.

45

AH83490

HYDRAULIC HOSE

(SUB FOR AT126423)

1шт.

47

AE42000

HYDRAULIC HOSE

(SUB FOR AT126424)

1шт.

48

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR AT126425 OR AH99310, THIS APPLICATION)

1шт.

49

AE42000

HYDRAULIC HOSE

(SUB FOR AT126426)

1шт.

50

AT130683

HYDRAULIC HOSE - FABRICATE

9/16" X 2 350 MM (92-1/2") X 9/16", (SUB FOR AT126427)

1шт.

52

8038404

BRACKET

(SUB FOR TH108482)

1шт.

53

19M8324

CAP SCREW

M10 X 16

2шт.

54

12M7066

LOCK WASHER

10 MM

2шт.

55

9727639

HOSE CLAMP

(SUB FOR TH108456)

4шт.

56

9727637

PLATE

(SUB FOR TH108457)

2шт.

57

19M7358

CAP SCREW

M10 X 40

4шт.

58

12M7066

LOCK WASHER

10 MM

4шт.

59

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

75

H77698

TIE BAND

5шт.

79

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

79A

M800650

PACKING

1шт.

91

4200466

ADAPTER FITTING

(SUB FOR TH108320)

3шт.

91A

CH11570

O-RING

1шт.
