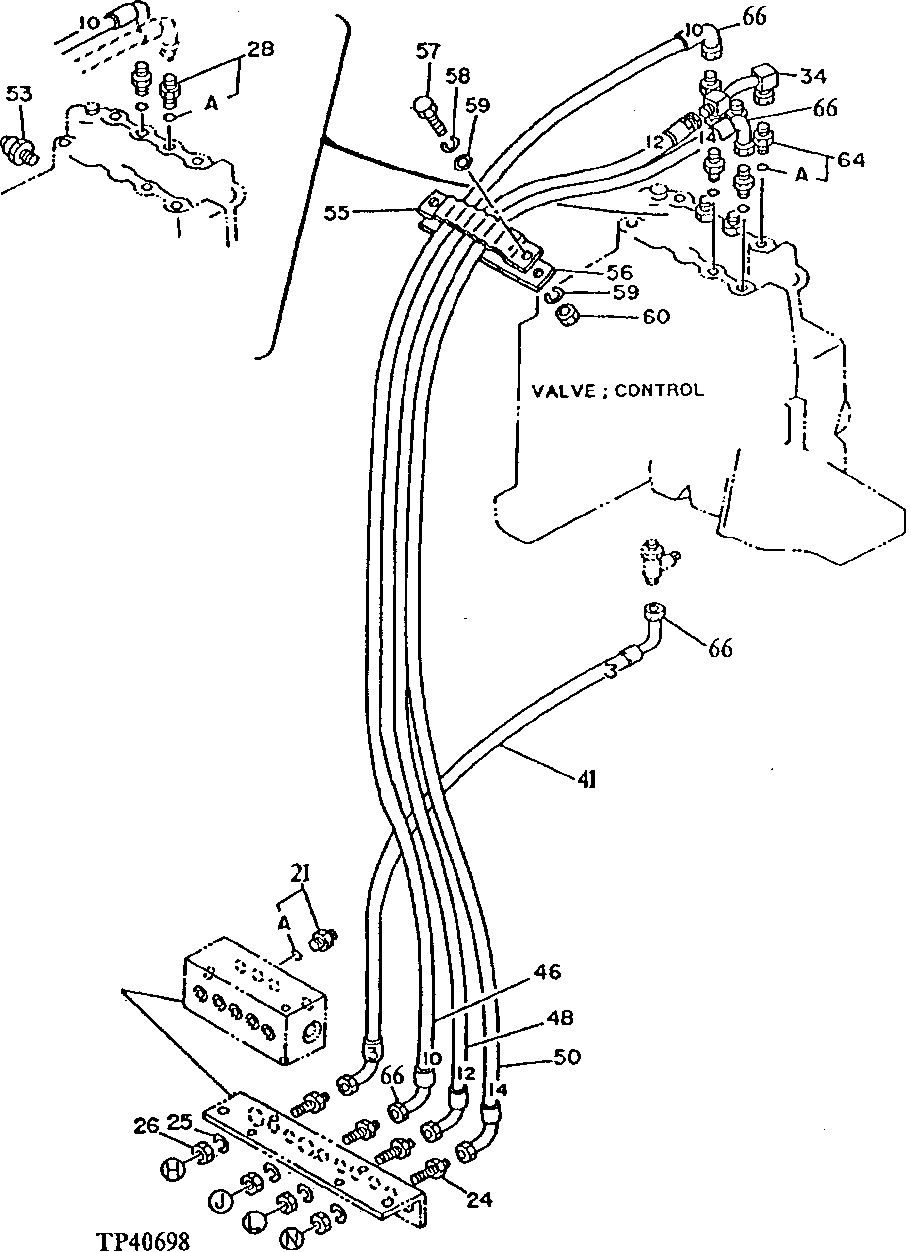

Запчасти John Deere 95D 38 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

21

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

21A

CH11570

O-RING

1шт.

24

R27238

FITTING

4шт.

25

12H294

LOCK WASHER

5/8"

4шт.

26

14H888

NUT

9/16", (SUB FOR TH108439)

4шт.

28

4202422

ADAPTER FITTING

(SUB FOR TH108440)

2шт.

28A

CH11570

O-RING

1шт.

34

8038382

LINE

(SUB FOR TH108441)

1шт.

41

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT131334, ALONG WITH AE24616)

1шт.

46

AT48717

HYDRAULIC HOSE - FABRICATE

9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR 4208417, ALONG WITH (2) AE24616)

1шт.

48

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126414)

1шт.

50

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR 4208420, ALONG WITH AE24616)

1шт.

53

4259333

PRESSURE SWITCH

(SUB FOR TH108413)

1шт.

55

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

56

9727637

PLATE

(SUB FOR TH108457)

1шт.

57

19M7550

CAP SCREW

M10 X 35

2шт.

58

12M7066

LOCK WASHER

10 MM

2шт.

59

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

60

14M7274

NUT

M10

2шт.

64

4202422

ADAPTER FITTING

(SUB FOR TH108440)

3шт.

64A

CH11570

O-RING

1шт.

66

AE24616

ELBOW FITTING

4шт.
