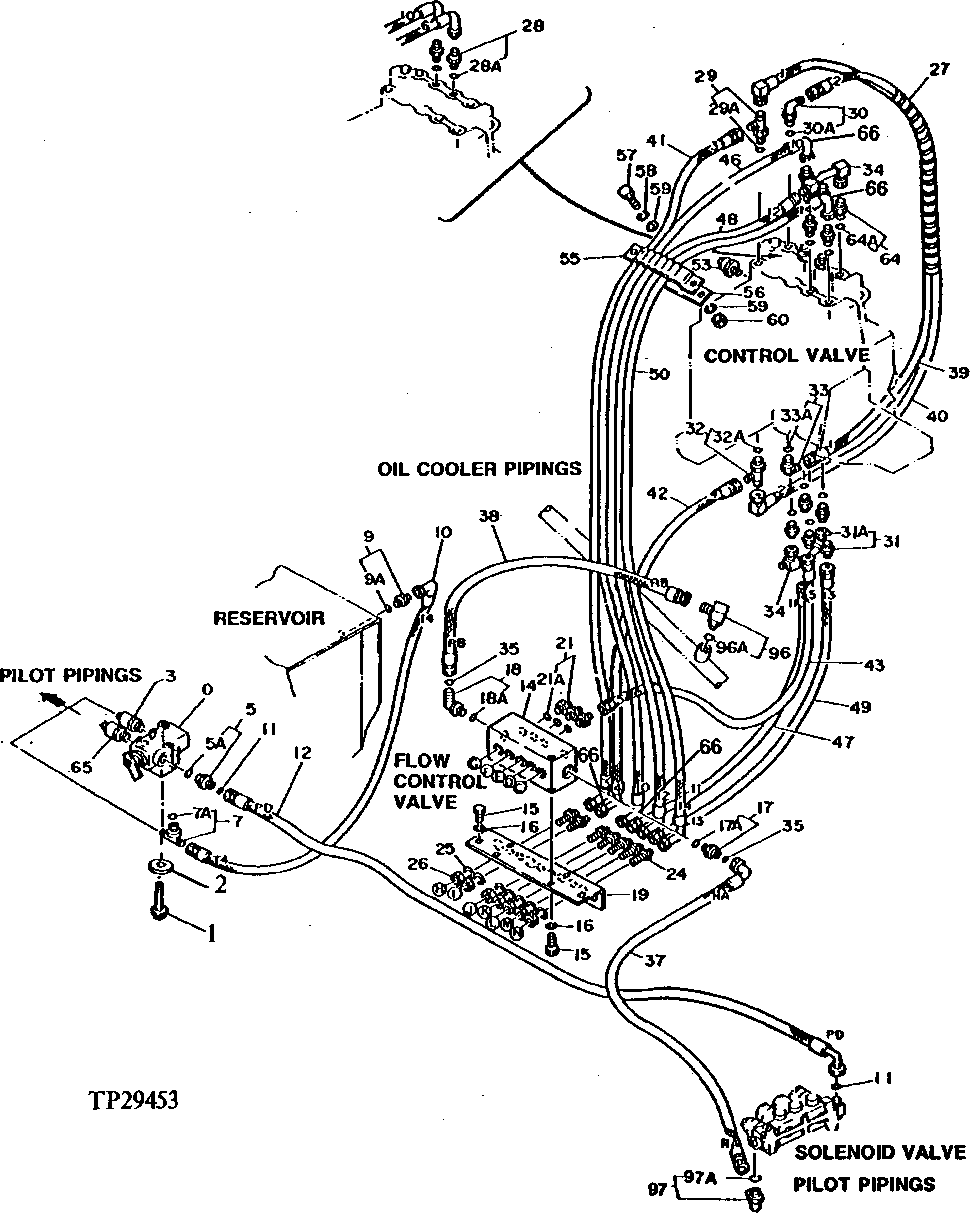

Запчасти John Deere 95D 34 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

43

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16"

1шт.

46

AT48717

HYDRAULIC HOSE - FABRICATE

9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR 4208417, ALSO ORDER (2) AE24616)

1шт.

47

AH108250

HOSE

9/16" X 787 MM (31") X 9/16", (SUB FOR AT126413)

1шт.

48

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126414)

1шт.

49

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16"

1шт.

50

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR 4208420, ALONG WITH AE24616)

1шт.

53

4259333

PRESSURE SWITCH

(SUB FOR TH108413)

1шт.

55

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

56

9727637

PLATE

(SUB FOR TH108457)

1шт.

57

19M7550

CAP SCREW

M10 X 35

2шт.

58

12M7066

LOCK WASHER

10 MM

2шт.

59

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

60

14M7274

NUT

M10

2шт.

64

4231115

ADAPTER FITTING

(SUB FOR AT126803)

3шт.

64A

CH11570

O-RING

1шт.

65

4232404

FILTER

(SUB FOR AT126818)

1шт.

66

AE24616

ELBOW FITTING

4шт.

96

4202112

ELBOW FITTING

(SUB FOR TH108322)

1шт.

96A

CH11570

O-RING

1шт.

97

A853344

ELBOW FITTING

(SUB FOR TH108401, 4200580)

1шт.

97A

4506418

O-RING

(SUB FOR U46489)

1шт.
