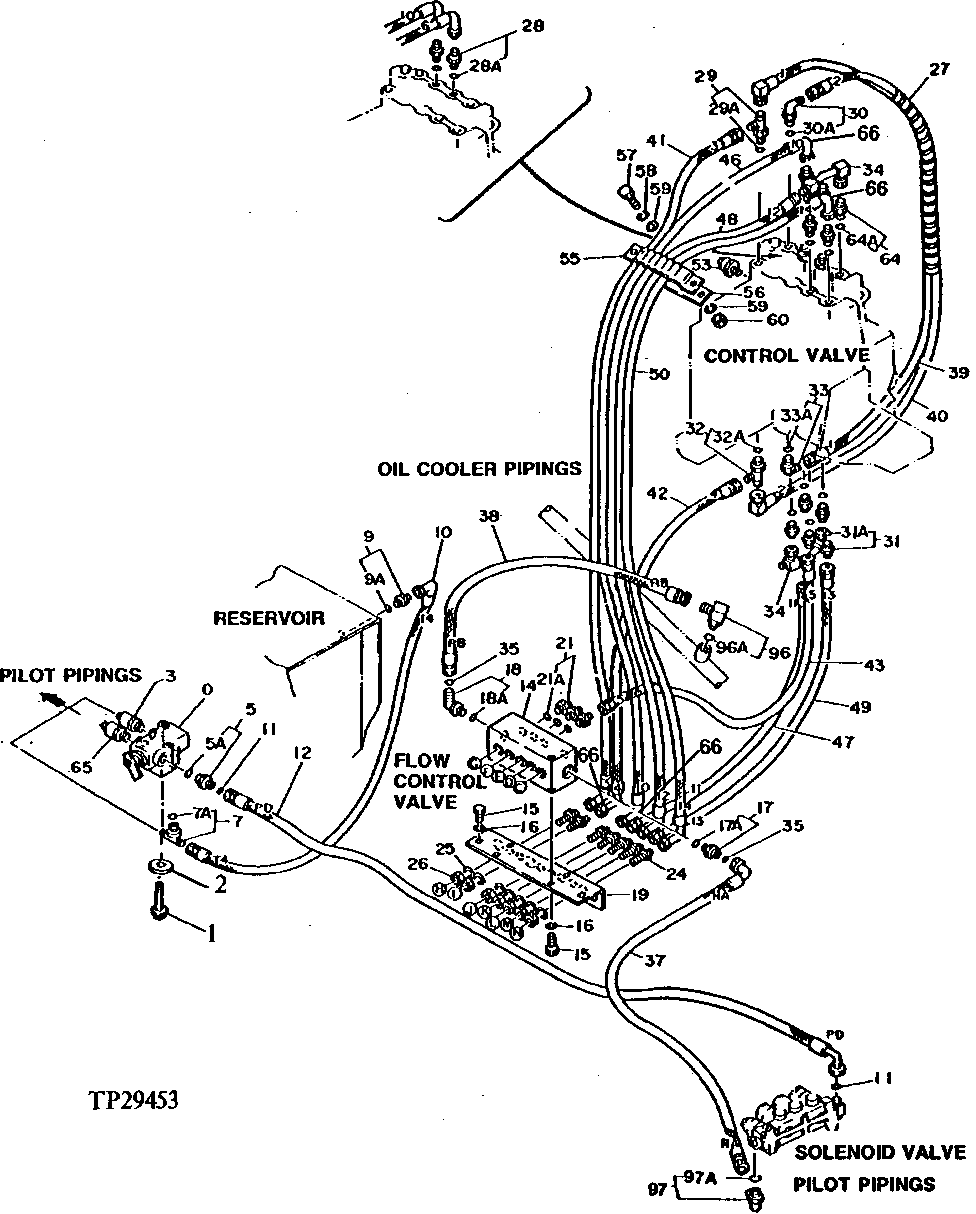

Запчасти John Deere 95D 32 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

0

4179025

FLOW CONTROL HYD. VALVE

(SUB FOR TH108432)

1шт.

1

19M7875

CAP SCREW

M10 X 70, (SUB FOR AT133602, ALONG WITH 12M7066)

2шт.

2

12M7066

LOCK WASHER

10 MM

2шт.

3

4188687

FILTER

(SUB FOR TH108433)

1шт.

5

4189602

FITTING

(SUB FOR TH108350)

1шт.

5A

4506418

O-RING

(SUB FOR U46489)

1шт.

7

4208911

TEE FITTING

(SUB FOR AT126456)

1шт.

7A

CH11570

O-RING

1шт.

9

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

9A

CH11570

O-RING

1шт.

10

AT72803

HYDRAULIC HOSE - FABRICATE

9/16" X 1 499 MM (59") X 9/16", (SUB FOR AT126404)

1шт.

11

T77857

O-RING

(SUB FOR TH108323)

2шт.

12

AT126865

HYDRAULIC HOSE - FABRICATE

13/16" X 1 600 MM (63") X 13/16"

1шт.

14

4192576

HYD ACTUATED CONTROL VALVE

(SUB FOR AT126286)

1шт.

15

19M7938

CAP SCREW

M10 X 20

6шт.

16

12M7066

LOCK WASHER

10 MM

6шт.

17

4189602

FITTING

(SUB FOR TH108350)

1шт.

17A

4506418

O-RING

(SUB FOR U46489)

1шт.

18

A853344

ELBOW FITTING

(SUB FOR TH108401)

1шт.

18A

4506418

O-RING

(SUB FOR U46489)

1шт.

19

3039491

BRACKET

(SUB FOR AT126147)

1шт.

21

4200466

ADAPTER FITTING

(SUB FOR TH108320)

3шт.

21A

CH11570

O-RING

1шт.

24

R27238

FITTING

7шт.

25

12H294

LOCK WASHER

5/8"

7шт.

26

14H888

NUT

9/16", (SUB FOR TH108439)

7шт.

27

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR TH100996) (SUB FOR AT138222 OR 3052919)

1шт.

28

4202422

ADAPTER FITTING

(SUB FOR TH108440)

2шт.

28A

CH11570

O-RING

1шт.

29

4205363

TEE FITTING

(SUB FOR AT126455) (SUB FOR AT126362)

1шт.

29A

CH11570

O-RING

1шт.

30

AT318017

ADAPTER FITTING

(SUB FOR 4208913, AT126458)

1шт.

30A

CH11570

O-RING

1шт.

31

4200466

ADAPTER FITTING

(SUB FOR TH108320)

5шт.

31A

CH11570

O-RING

1шт.

32

4205363

TEE FITTING

(SUB FOR AT126362)

1шт.

32A

CH11570

O-RING

1шт.

33

A852333

ELBOW FITTING

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

33A

CH11570

O-RING

1шт.

34

8038382

LINE

(SUB FOR TH108441)

2шт.

35

T77857

O-RING

(SUB FOR TH108323)

2шт.

37

AT126416

HYDRAULIC HOSE - FABRICATE

13/16" X 1 200 MM (47-1/4") X 13/16"

1шт.

38

AT149428

HYDRAULIC HOSE - FABRICATE

13/16" X 552 MM (21-3/4") X 13/16", (SUB FOR AT126405)

1шт.

39

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126406)

1шт.

40

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126407)

1шт.

41

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126408)

1шт.

42

AH108250

HOSE

9/16" X 787 MM (31") X 9/16", (SUB FOR AT126409, ALONG WITH AE24616)

1шт.
