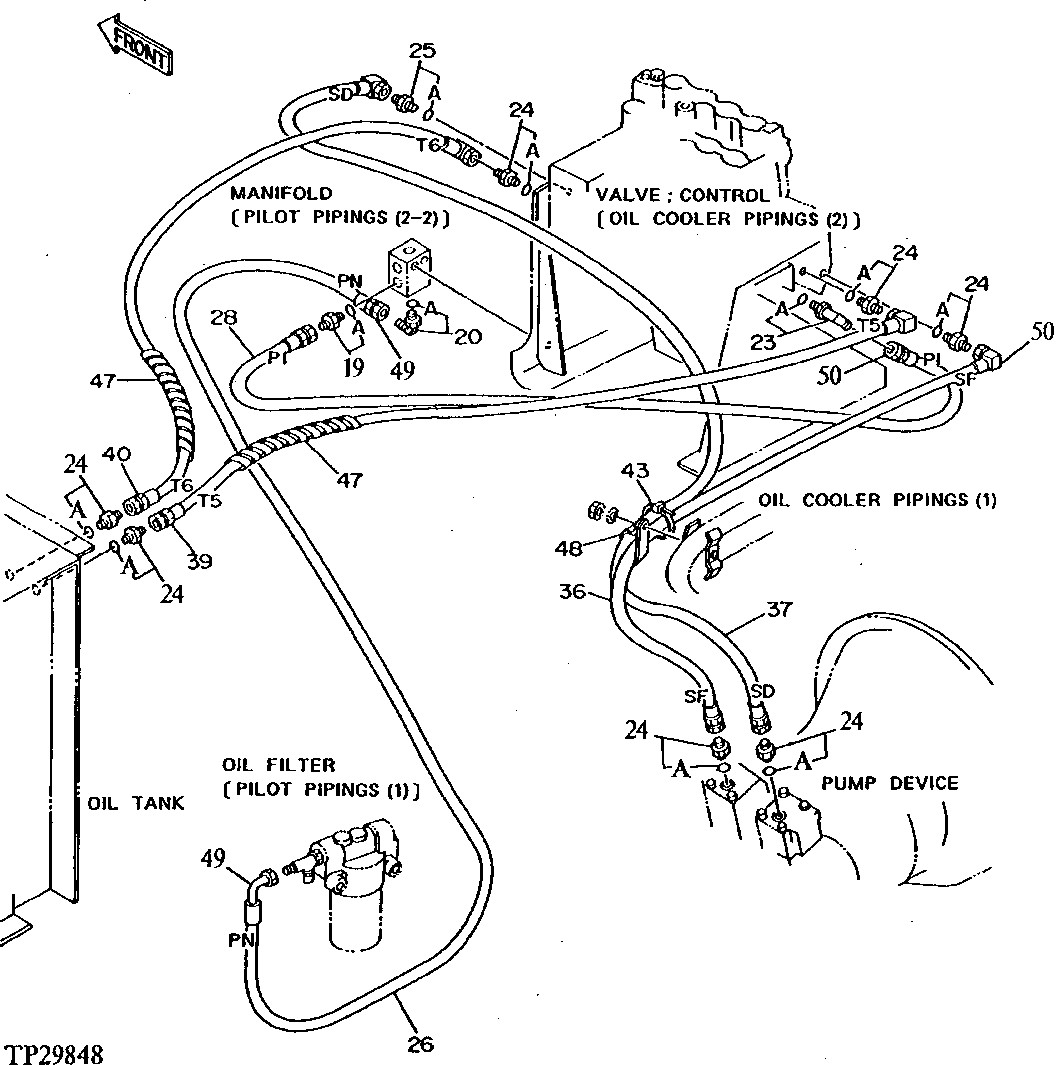

Запчасти John Deere 95D 28 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

19

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

19A

M800650

PACKING

1шт.

20

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

20A

M800650

PACKING

1шт.

23

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

23A

M800650

PACKING

1шт.

24

4200465

ADAPTER FITTING

(SUB FOR TH108328)

7шт.

24A

M800650

PACKING

1шт.

25

4209776

ADAPTER FITTING

(SUB FOR AT126484)

1шт.

25A

M800650

PACKING

1шт.

26

AT130684

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT134129, ALONG WITH (2) AE24616)

1шт.

28

AE42282

HYDRAULIC HOSE

1шт.

36

AT132003

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126402, ALONG WITH AH89069)

1шт.

37

AT132004

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126403, ALONG WITH AH89069)

1шт.

39

AE42282

HYDRAULIC HOSE

1шт.

AH89069

ELBOW FITTING

1шт.

40

AE42282

HYDRAULIC HOSE

1шт.

AH89069

ELBOW FITTING

1шт.

43

H77698

TIE BAND

3шт.

47

E90991

HOSE GUARD

(SUB FOR TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)

ARшт.

48

4190292

CLIP

(SUB FOR TH108321)

1шт.

49

AE24616

ELBOW FITTING

2шт.

50

AH89069

ELBOW FITTING

2шт.
