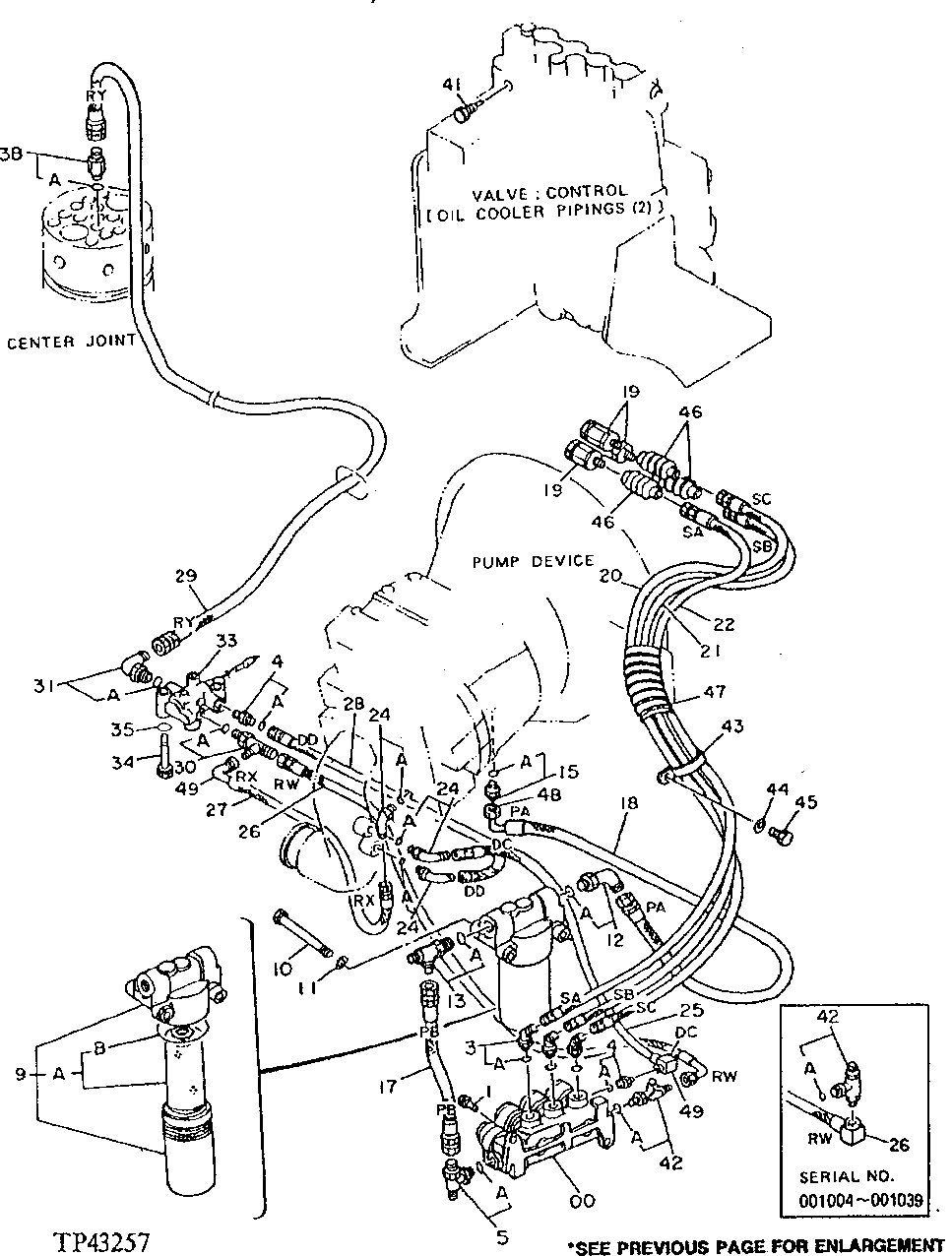

Запчасти John Deere 95D 26 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

0

4196411

SOLENOID VALVE

(SUB FOR TH108398)

1шт.

1

12M7066

LOCK WASHER

10 MM

2шт.

19M7662

CAP SCREW

M10 X 30

2шт.

3

4193826

ELBOW FITTING

(SUB FOR TH106467)

3шт.

3A

M800650

PACKING

1шт.

4

4200465

ADAPTER FITTING

(SUB FOR TH108328)

2шт.

4A

M800650

PACKING

1шт.

5

4208912

TEE FITTING

(SUB FOR AT126457)

1шт.

5A

CH11570

O-RING

1шт.

9

4631976

OIL FILTER

(SUB FOR TH108402, 4191300)

1шт.

9A

AT186554

FILTER ELEMENT

(SUB FOR TH108403 OR AT147821)

1шт.

9B

AT264334

O-RING

(SUB FOR TH100101) (USE WITH TH108403 FILTER ELEMENT)

1шт.

CH17154

PACKING

(USE WITH AT147821 OR AT186554 FILTER ELEMENT)

1шт.

10

19M8761

SCREW

M10 X 22, (SUB FOR TH102993)

2шт.

11

12M7066

LOCK WASHER

10 MM

2шт.

12

4200474

ELBOW FITTING

(SUB FOR AT126337)

1шт.

12A

4506418

O-RING

(SUB FOR U46489)

1шт.

13

4222016

TEE FITTING

(SUB FOR AT126748)

1шт.

13A

4506418

O-RING

(SUB FOR U46489)

1шт.

15

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

15A

CH11570

O-RING

1шт.

17

AR98204

HYDRAULIC HOSE

(SUB FOR AT126392)

1шт.

18

AT48428

HYDRAULIC HOSE - FABRICATE

ASLO ORDER AE24616

1шт.

19

4187914

CYLINDER

(SUB FOR TH108409) (AUTO IDLE MODE ADAPTER AND ECONOMY MODE ADAPTER)

3шт.

20

AH96002

HYDRAULIC HOSE

(SUB FOR AT126864)

1шт.

21

AH96002

HYDRAULIC HOSE

(SUB FOR AT126863)

1шт.

22

AH96002

HYDRAULIC HOSE

(SUB FOR AT126862)

1шт.

24

4154670

ELBOW FITTING

(SUB FOR TH100951)

3шт.

24A

M800650

PACKING

1шт.

25

AR101376

HYDRAULIC HOSE

(SUB FOR AT126393, ALONG WITH AH89069)

1шт.

26

AT67065

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126394)

1шт.

27

AH97777

HYDRAULIC HOSE

7/16" X 407 MM (16") X 7/16", (SUB FOR AT126399 ALONG WITH AH89069)

1шт.

28

AE42718

HYDRAULIC HOSE

(SUB FOR AT126400)

1шт.

29

AH99310

HYDRAULIC HOSE

(SUB FOR AT126401)

1шт.

30

4219346

TEE FITTING

(SUB FOR AT126453) (SUB FOR AT132516)

1шт.

30A

M800650

PACKING

1шт.

31

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

31A

M800650

PACKING

1шт.

33

4200389

SOLENOID VALVE

(SUB FOR AT126335)

1шт.

34

19M8402

CAP SCREW

M8 X 65

2шт.

35

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

38

4200467

ADAPTER FITTING

(SUB FOR AT126497) (SUB FOR TH108417)

1шт.

38A

M800650

PACKING

1шт.

41

4209374

FITTING PLUG

(SUB FOR AT126470)

1шт.

42

TEE FITTING

(SUB AT134317) ( AT126855 NO LONGER AVAILABLE)

1шт.

4253767

TEE FITTING

(SUB FOR AT134317)

1шт.

42A

CH11570

O-RING

(USE WITH AT126855)

1шт.

4506418

O-RING

(USE WITH AT134317) (SUB FOR U46489)

1шт.

43

AT121321

HOSE CLAMP

1шт.

44

12M7066

LOCK WASHER

10 MM

1шт.

45

19M7938

CAP SCREW

M10 X 20

1шт.

46

4208277

BOOT

(SUB FOR AT126398)

3шт.

47

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222) ( TH100996 NO LONGER AVAILABLE)

1шт.

48

AE24616

ELBOW FITTING

1шт.

49

AH89069

ELBOW FITTING

2шт.
