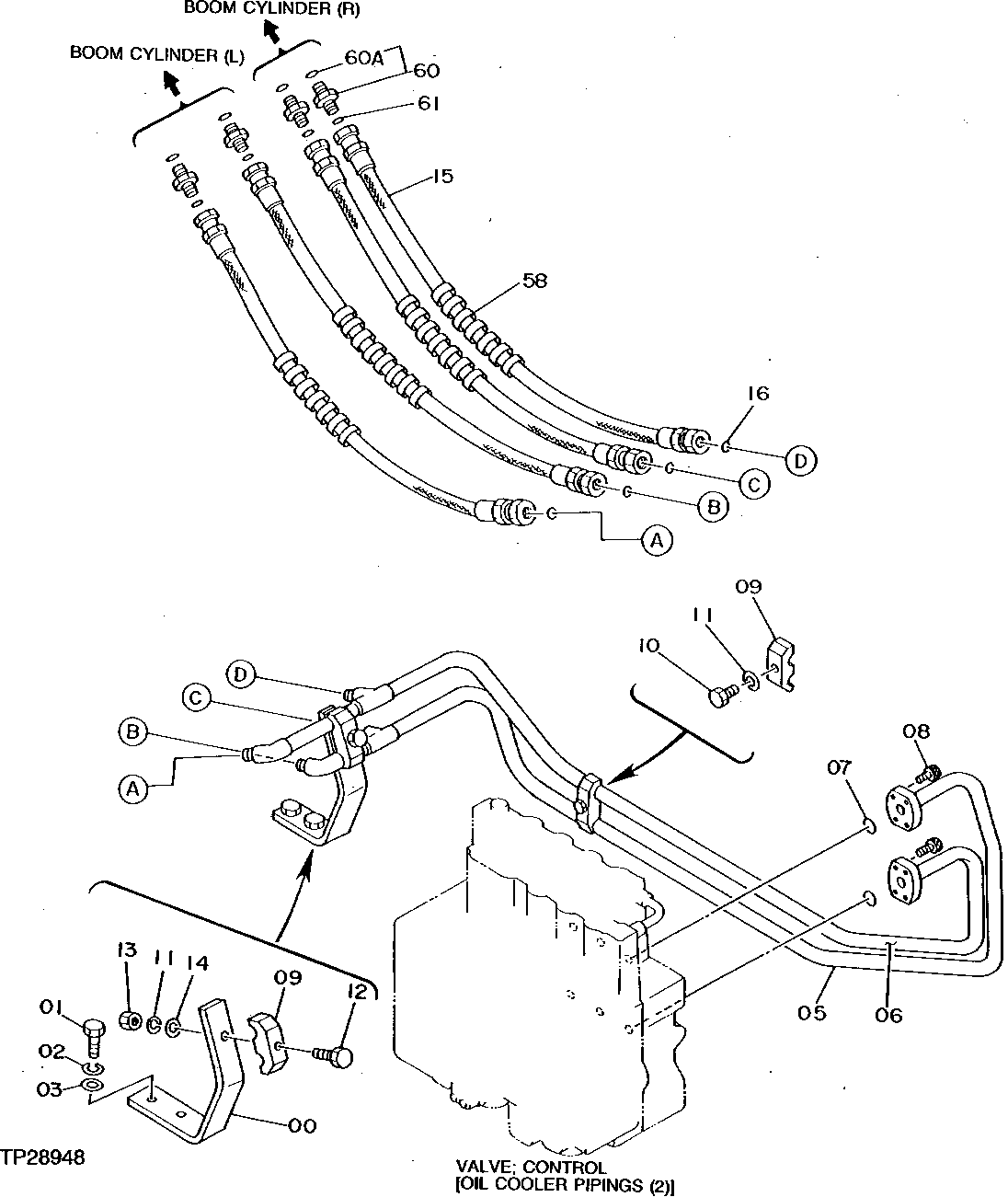

Запчасти John Deere 95D 22 - HIGH PRESSURE HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

0

4189137

SUPPORT

(SUB FOR TH108330)

1шт.

1

19M7872

CAP SCREW

M12 X 25

2шт.

2

12H301

LOCK WASHER

1/2"

2шт.

3

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

5

8039593

OIL LINE

(SUB FOR AT127039)

1шт.

6

8039594

OIL LINE

(SUB FOR AT127040)

1шт.

7

CH12329

PACKING

2шт.

8

19M8439

SCREW

M8 X 25

8шт.

9

4189858

CLAMP

(SUB FOR TH108333)

2шт.

10

19M7361

CAP SCREW

M12 X 50

1шт.

11

12H301

LOCK WASHER

1/2"

2шт.

12

19M7363

CAP SCREW

M12 X 60

1шт.

13

14M7275

NUT

M12

1шт.

14

24M7047

WASHER

13 X 24 X 2.500 MM

1шт.

15

4188986

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108334)

4шт.

16

T77857

O-RING

(SUB FOR TH108323)

4шт.

58

GUARD

(CUT TO LENGTH FROM AT138222 BULK MATERIAL) ( TH100996 NO LONGER AVAILABLE)

4шт.

60

4189602

FITTING

(SUB FOR TH108350)

4шт.

60A

4506418

O-RING

(SUB FOR U46489)

1шт.

61

T77857

O-RING

4шт.
