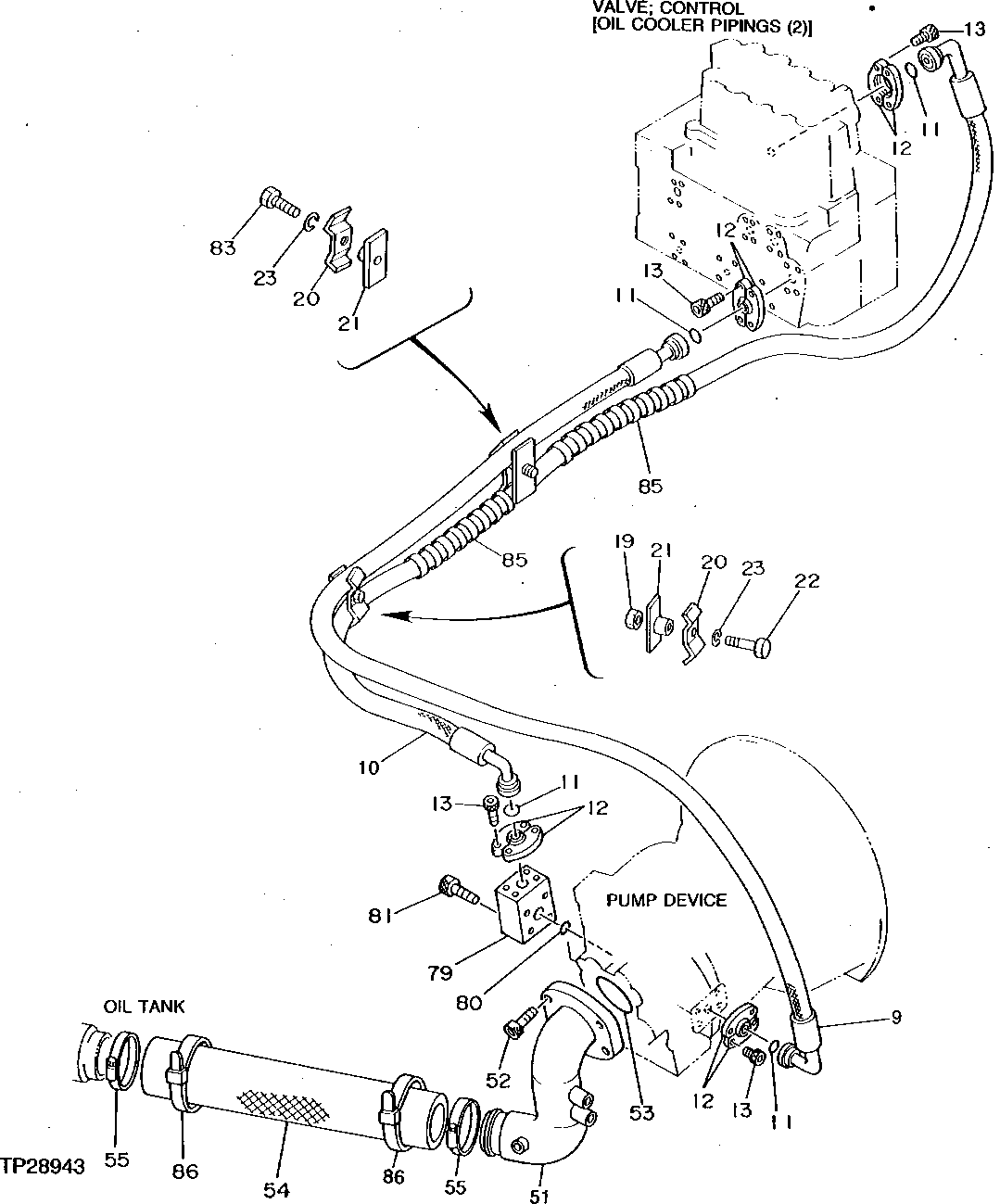

Запчасти John Deere 95D 12 - LOW PRESSURE HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

9

TH108298

HYDRAULIC HOSE - FABRICATE

1шт.

10

AT126309

HYDRAULIC HOSE

1шт.

11

T59014

O-RING

4шт.

12

R29424

FLANGE FITTING

(SUB FOR TH108300)

8шт.

13

19M8337

SCREW

M10 X 30

16шт.

19

14M7275

NUT

M12

1шт.

20

4202103

CLAMP

(SUB FOR TH108302)

2шт.

21

9727633

CLAMP

(SUB FOR TH108303)

2шт.

22

19M7361

CAP SCREW

M12 X 50

1шт.

23

12H301

LOCK WASHER

1/2"

2шт.

51

8044554

LINE

(SUB FOR AT127140)

1шт.

52

19M8490

SCREW

M16 X 40

4шт.

53

CH17854

PACKING

1шт.

54

4120314

HOSE

(SUB FOR AT126201)

1шт.

55

AT50923

HOSE CLAMP

2шт.

79

3036411

MANIFOLD

(SUB FOR AT126116)

1шт.

80

A811030

O-RING

(SUB FOR TH101300)

1шт.

81

19M8441

SCREW

M10 X 60

4шт.

83

19M8348

CAP SCREW

M12 X 65

1шт.

85

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR TH100996 OR AT138222)

2шт.

86

H77698

TIE BAND

2шт.
