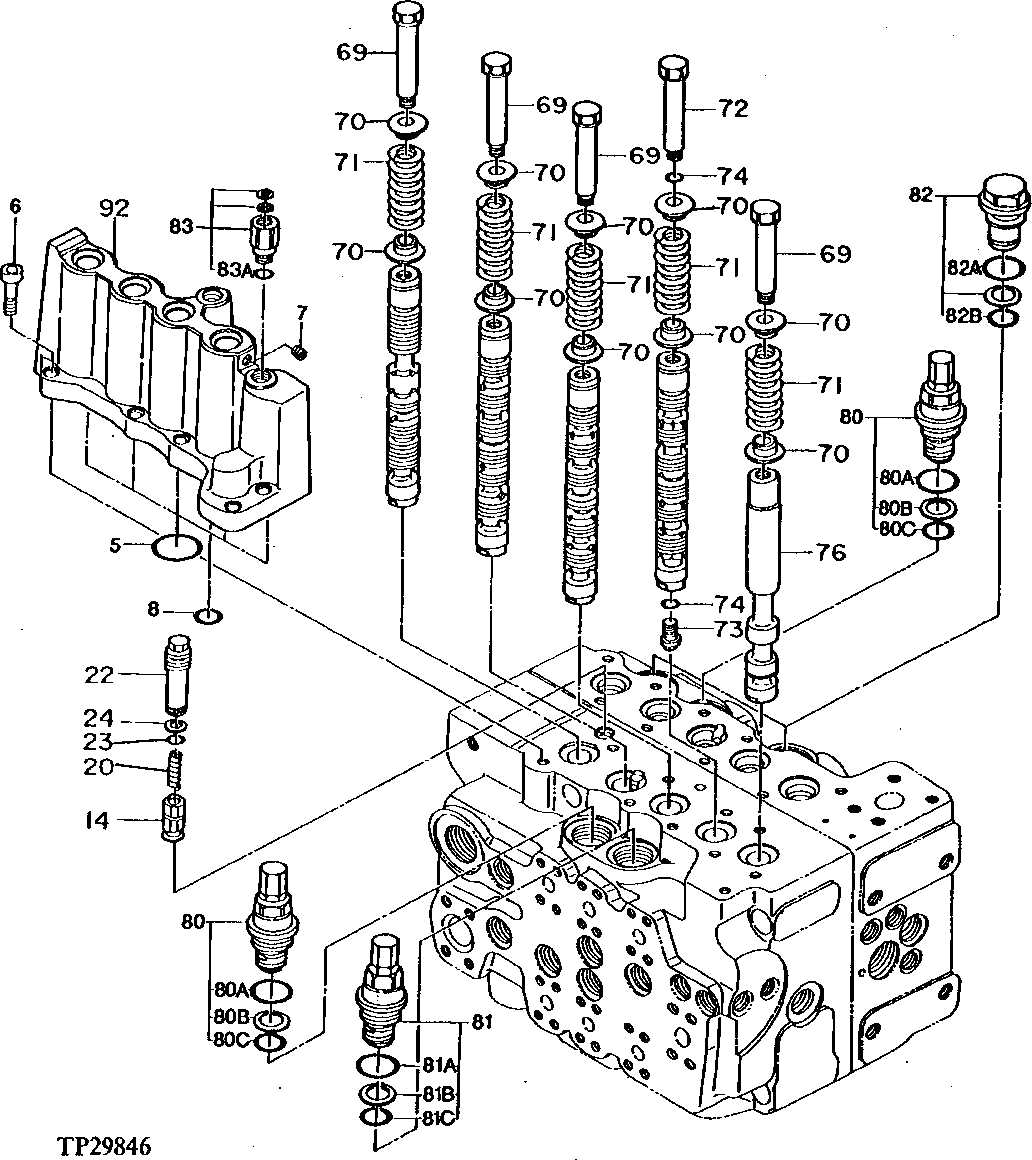

Запчасти John Deere 95D 6 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33

5

4S00101

O-RING

(SUB FOR (5) TH109194)

5шт.

6

0309455

SCREW

(SUB FOR TH109195)

10шт.

7

15H560

PIPE PLUG

1шт.

8

CH11570

O-RING

1шт.

14

0309407

FLOW CONTROL HYD. VALVE

(SUB FOR TH109146)

1шт.

20

0309413

SPRING

(SUB FOR TH109152)

1шт.

22

0357607

FITTING PLUG

(SUB FOR TH109154)

1шт.

23

CH10568

PACKING

(SUB FOR TH102668)

1шт.

24

0309416

BACK-UP RING

(SUB FOR TH109155)

1шт.

69

0309441

BOLT

(SUB FOR TH109181)

4шт.

70

0309442

VALVE SEAT

(SUB FOR TH109182)

10шт.

71

0309443

SPRING

(SUB FOR TH109183)

5шт.

72

0325109

FITTING PLUG

(SUB FOR AT133717)

1шт.

73

0325110

PIPE PLUG

(SUB FOR AT133718)

1шт.

74

4506408

O-RING

(SUB FOR TH101490)

2шт.

76

0309444

VALVE SPOOL

(SUB FOR TH109184)

1шт.

80

9202625

FLOW CONTROL HYD. VALVE

(SUB FOR TH111984 OR AT128070 OR AT128356) (SUB FOR 4265364)

2шт.

80A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

80B

4027959

BACK-UP RING

(SUB FOR AT134327)

1шт.

80C

11M7087

COTTER PIN

4 X 40 MM (0.157" X 1.575") (SUB FOR CH12324)

1шт.

81

4265365

PRESSURE RELIEF VALVE

(SUB FOR TH111985 OR AT128357)

1шт.

81A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

81B

4027959

BACK-UP RING

(SUB FOR AT134327)

1шт.

81C

CH12329

PACKING

1шт.

82

0309461

PLUG

(SUB FOR TH109201)

2шт.

82A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

82B

CH12329

PACKING

1шт.

83

9202621

ADAPTER FITTING

(SUB FOR 0328506, AT128047)

1шт.

83A

M800650

PACKING

1шт.

92

0309451

HOUSING

(SUB FOR TH109191)

1шт.

95

4191114

HYD ACTUATED CONTROL VALVE

(SUB FOR AT126284) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.
