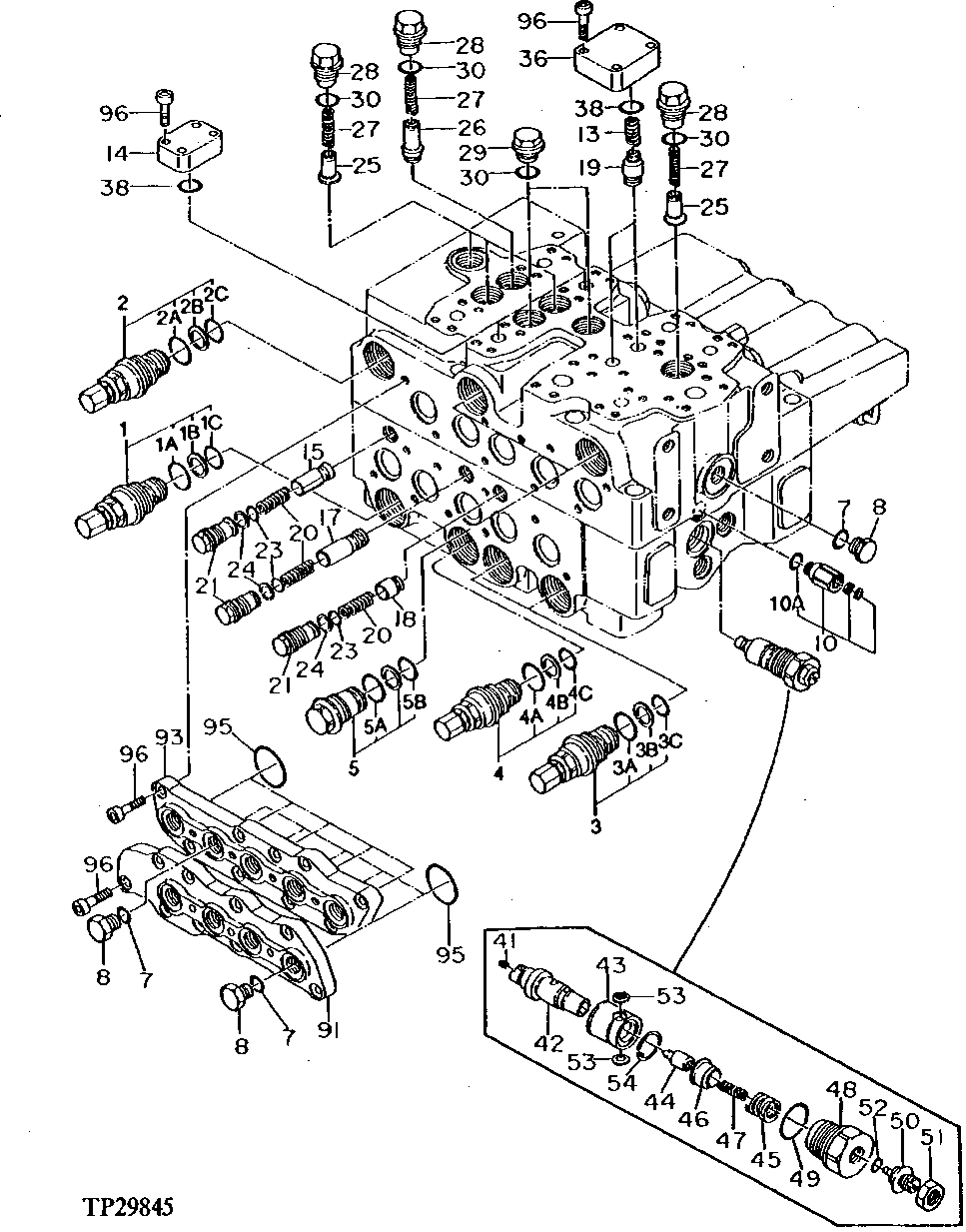

Запчасти John Deere 95D 4 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33

1

0357602

PRESSURE RELIEF VALVE

(SUB FOR AT128068)

1шт.

1A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

1B

4027959

BACK-UP RING

(SUB FOR AT134327) (SUB FOR TH100771)

1шт.

1C

CH12329

PACKING

1шт.

2

0309470

PRESSURE RELIEF VALVE

(SUB FOR TH111983)

1шт.

2A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

2B

4027959

BACK-UP RING

(SUB FOR AT134327) (SUB FOR TH100771)

1шт.

2C

CH12329

PACKING

1шт.

3

9202625

FLOW CONTROL HYD. VALVE

(SUB FOR AT128070 OR AT128356) (SUB FOR 4265364)

2шт.

3A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

3B

4027959

BACK-UP RING

(SUB FOR AT134327) (SUB FOR TH100771)

1шт.

3C

CH12329

PACKING

1шт.

4

9202625

FLOW CONTROL HYD. VALVE

(SUB FOR AT128071 OR AT128356) (SUB FOR 4265364)

1шт.

4A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

4B

4027959

BACK-UP RING

(SUB FOR AT134327) (SUB FOR TH100771)

1шт.

4C

CH12329

PACKING

1шт.

5

0309461

PLUG

(SUB FOR TH109201)

2шт.

5A

AT264347

O-RING

(SUB FOR TH100136, 4506428)

1шт.

5B

CH12329

PACKING

1шт.

7

CH11570

O-RING

3шт.

8

0218608

DRAIN PLUG

(SUB FOR TH110243)

3шт.

10

9202621

ADAPTER FITTING

(SUB FOR 0328506, AT128047)

1шт.

10A

M800650

PACKING

1шт.

13

0309406

SPRING

(SUB FOR TH109145)

2шт.

14

0309464

PLATE

(SUB FOR TH109204)

2шт.

15

0309408

FLOW CONTROL HYD. VALVE

(SUB FOR TH109147)

1шт.

17

0309410

FLOW CONTROL HYD. VALVE

(SUB FOR TH109149)

1шт.

18

0309411

FLOW CONTROL HYD. VALVE

(SUB FOR TH109150)

1шт.

19

0309412

FLOW CONTROL HYD. VALVE

(SUB FOR TH109151)

2шт.

20

0309413

SPRING

(SUB FOR TH109152)

3шт.

21

0357606

FITTING PLUG

(SUB FOR TH109153)

3шт.

23

CH10568

PACKING

(SUB FOR TH102668)

3шт.

24

0309416

BACK-UP RING

(SUB FOR TH109155)

3шт.

25

0309417

FLOW CONTROL HYD. VALVE

(SUB FOR TH109156)

4шт.

26

0325106

PLUG

(SUB FOR AT133714)

1шт.

27

0309419

SPRING

(SUB FOR TH109158)

5шт.

28

0309420

ADAPTER FITTING

(SUB FOR TH109159)

5шт.

29

R27474

DRAIN PLUG

2шт.

30

R47151

O-RING

7шт.

36

0357601

PLATE

(SUB FOR AT134316)

1шт.

38

CH12329

PACKING

4шт.

41

22M7152

SET SCREW

M4 X 4, (SUB FOR TH109169)

1шт.

42

0309431

FLOW CONTROL HYD. VALVE

(SUB FOR TH109170)

1шт.

43

2046851

BUSHING

(SUB FOR AT128044 OR 0328503)

1шт.

44

0309433

FLOW CONTROL HYD. VALVE

(SUB FOR TH109172)

1шт.

45

0309434

SPRING

(SUB FOR TH109173)

1шт.

46

0309435

VALVE SEAT

(SUB FOR TH109174)

1шт.

47

0309436

SPRING

(SUB FOR TH109175)

1шт.

48

0309437

ADAPTER FITTING

(SUB FOR TH109177)

1шт.

49

R56751

O-RING

(SUB FOR TH100741)

1шт.

50

0309438

SCREW

(SUB FOR TH109178)

1шт.

51

0309439

NUT

(SUB FOR TH109179)

1шт.

52

CH17167

O-RING

(SUB FOR TH109180)

1шт.

53

0328505

FILTER

(SUB FOR AT128046)

2шт.

54

0328504

SNAP RING

(SUB FOR AT128045)

1шт.

91

0309450

HOUSING

(SUB FOR TH109190)

1шт.

93

0309452

HOUSING

(SUB FOR TH109192)

1шт.

95

4S00101

O-RING

(SUB FOR TH109194)

10шт.

96

0309455

SCREW

(SUB FOR TH109195)

30шт.

97

4191114

HYD ACTUATED CONTROL VALVE

(SUB FOR AT126284) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.
