2 - MAIN CONTROL VALVE

Запчасти John Deere 95D 2 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33

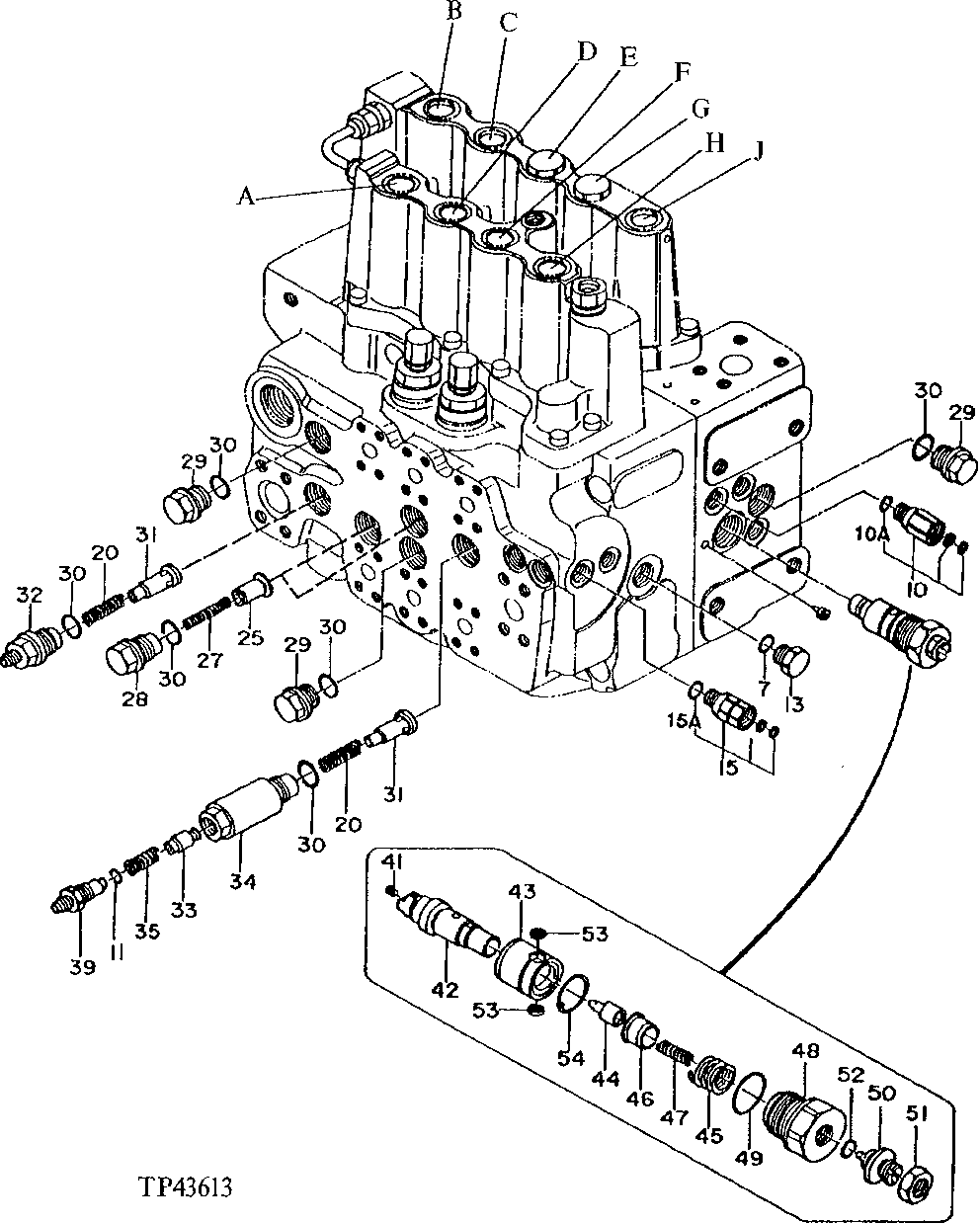

Схема запчастей John Deere 95D - 2 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7

CH11570

O-RING

1шт.

10

9202621

ADAPTER FITTING

(SUB FOR 0328506, AT128047)

1шт.

10A

M800650

PACKING

1шт.

11

M800650

PACKING

1шт.

13

0218608

DRAIN PLUG

(SUB FOR TH109203) (SUB FOR TH110243)

1шт.

15

0309465

ADAPTER FITTING

(SUB FOR TH109205)

1шт.

15A

M800650

PACKING

1шт.

20

0309413

SPRING

(SUB FOR TH109152)

2шт.

25

0309417

FLOW CONTROL HYD. VALVE

(SUB FOR TH109156)

2шт.

27

0309419

SPRING

(SUB FOR TH109158)

2шт.

28

0309420

ADAPTER FITTING

(SUB FOR TH109159)

2шт.

29

R27474

DRAIN PLUG

3шт.

30

R47151

O-RING

7шт.

31

0309423

FLOW CONTROL HYD. VALVE

(SUB FOR TH109162)

2шт.

32

0309424

ADAPTER FITTING

(SUB FOR TH109163)

1шт.

33

0309425

FLOW CONTROL HYD. VALVE

(SUB FOR TH109164)

1шт.

34

0325107

ADAPTER FITTING

(SUB FOR AT133715)

1шт.

35

0309427

SPRING

(SUB FOR TH109166)

1шт.

39

0325108

ADAPTER FITTING

(SUB FOR AT133716)

1шт.

41

22M7152

SET SCREW

M4 X 4, (SUB FOR TH109169)

1шт.

42

0309431

FLOW CONTROL HYD. VALVE

(SUB FOR TH109170)

1шт.

43

2046851

BUSHING

(SUB FOR AT128044 OR 0328503)

1шт.

44

0309433

FLOW CONTROL HYD. VALVE

(SUB FOR TH109172)

1шт.

45

0309434

SPRING

(SUB FOR TH109173)

1шт.

46

0309435

VALVE SEAT

(SUB FOR TH109174)

1шт.

47

0309436

SPRING

(SUB FOR TH109175)

1шт.

48

0309437

ADAPTER FITTING

(SUB FOR TH109177)

1шт.

49

R56751

O-RING

(SUB FOR TH100741)

1шт.

50

0309438

SCREW

(SUB FOR TH109178)

1шт.

51

2046464

NUT

(SUB FOR TH109179 AND 0309439)

1шт.

52

CH17167

O-RING

(SUB FOR TH109180)

1шт.

53

0328505

FILTER

(SUB FOR AT128046)

2шт.

54

0328504

SNAP RING

(SUB FOR AT128045)

1шт.

55

4191114

HYD ACTUATED CONTROL VALVE

(SUB FOR AT126284) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES)

1шт.

55A

SECTION

(ARM II)

1шт.

55B

SECTION

(SWING)

1шт.

55C

SECTION

(ARM I)

1шт.

55D

SECTION

(BOOM I)

1шт.

55E

SECTION

(BOOM II)

1шт.

55F

SECTION

(BUCKET)

1шт.

55G

SECTION

(AUXILIARY)

1шт.

55H

SECTION

(TRAVEL)

1шт.

55J

SECTION

(TRAVEL)

1шт.
