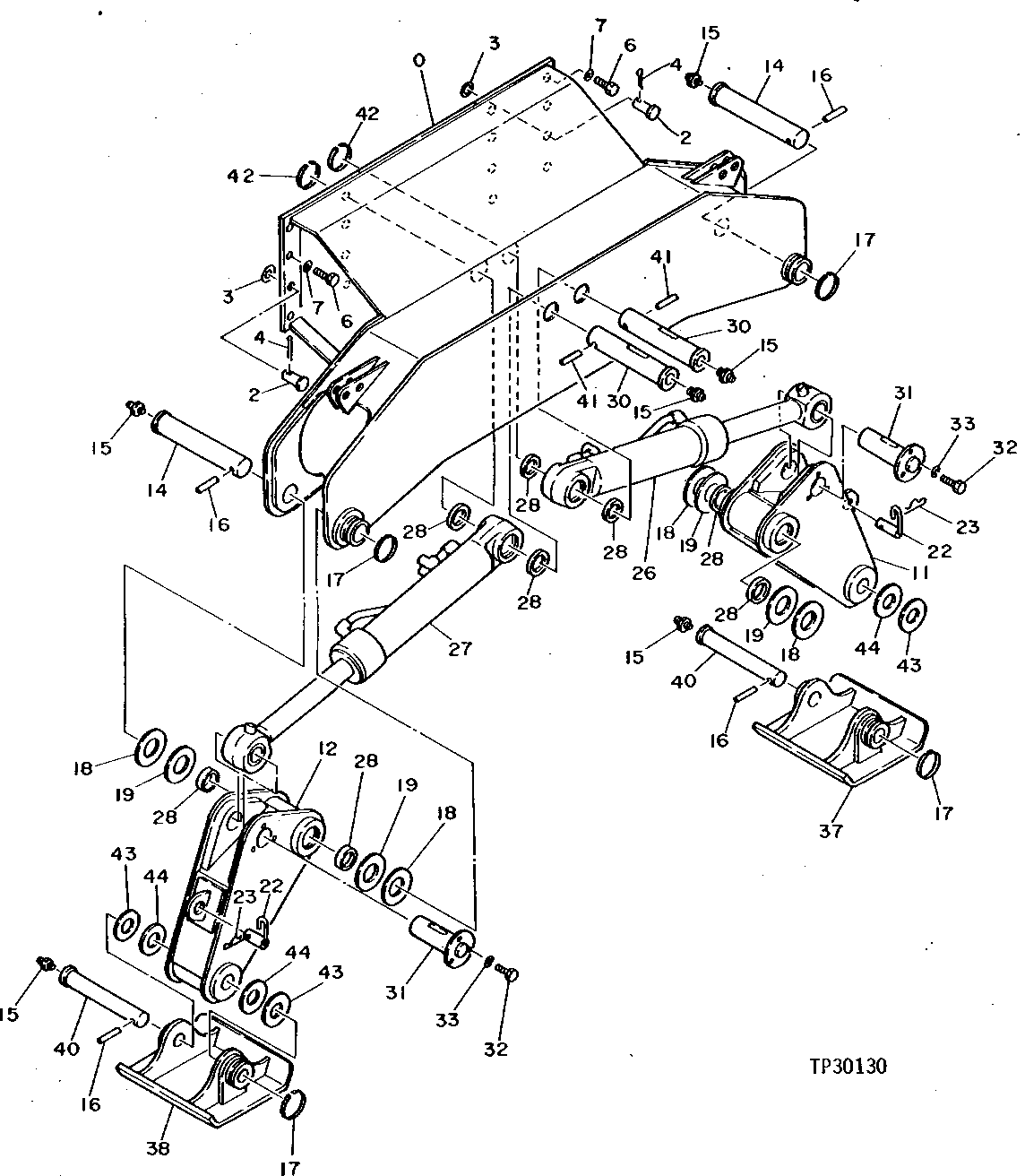

Запчасти John Deere 95D 4 - STABILIZERS 3340 - EXCAVATOR 33

0

8034568

BEAM

(SUB FOR AT126993)

1шт.

2

4183279

PIN FASTENER

(SUB FOR AT126265)

2шт.

3

24M7202

WASHER

31 X 56 X 4 MM

2шт.

4

11M7056

COTTER PIN

8 X 50 MM

2шт.

6

19M8224

CAP SCREW

M20 X 60

14шт.

7

N231749

WASHER

(SUB FOR T33089)

14шт.

11

8034809

OUTRIGGER

(SUB FOR AT126996)

1шт.

12

8034810

OUTRIGGER

(SUB FOR AT126997)

1шт.

14

3034221

PIN FASTENER

(SUB FOR AT126106)

2шт.

15

TH100074

LUBRICATION FITTING

6шт.

16

4065689

PIN FASTENER

(SUB FOR TH100625)

4шт.

17

4065688

RETAINER

(SUB FOR TH100624)

4шт.

18

4075357

WASHER

(SUB FOR TH108944)

12шт.

19

4075358

WASHER

(SUB FOR TH108955)

12шт.

22

9726346

PIN FASTENER

(SUB FOR AT127205)

2шт.

23

A15147

SPRING LOCKING PIN

(SUB FOR TH104295)

2шт.

26

4195892

CYLINDER

(RIGHT) (SUB FOR AT126301)

1шт.

27

4195893

CYLINDER

(LEFT) (SUB FOR AT126302)

1шт.

28

TH100374

SEAL

8шт.

30

3034220

PIN FASTENER

(SUB FOR AT126105)

2шт.

31

8016840

PIN

(SUB FOR AT126989)

2шт.

32

19M8011

CAP SCREW

M12 X 30

6шт.

33

12H301

LOCK WASHER

1/2"

6шт.

37

8041039

STREET PAD

(SUB FOR AT127080)

1шт.

38

8034570

STREET PAD

(SUB FOR AT126994)

1шт.

40

3034222

PIN FASTENER

(SUB FOR AT126107)

2шт.

41

4065689

PIN FASTENER

(SUB FOR TH100625)

2шт.

42

4065688

RETAINER

(SUB FOR TH100624)

2шт.

43

4082148

WASHER

(SUB FOR AT126192)

4шт.

44

4082149

WASHER

(SUB FOR AT126193)

4шт.
