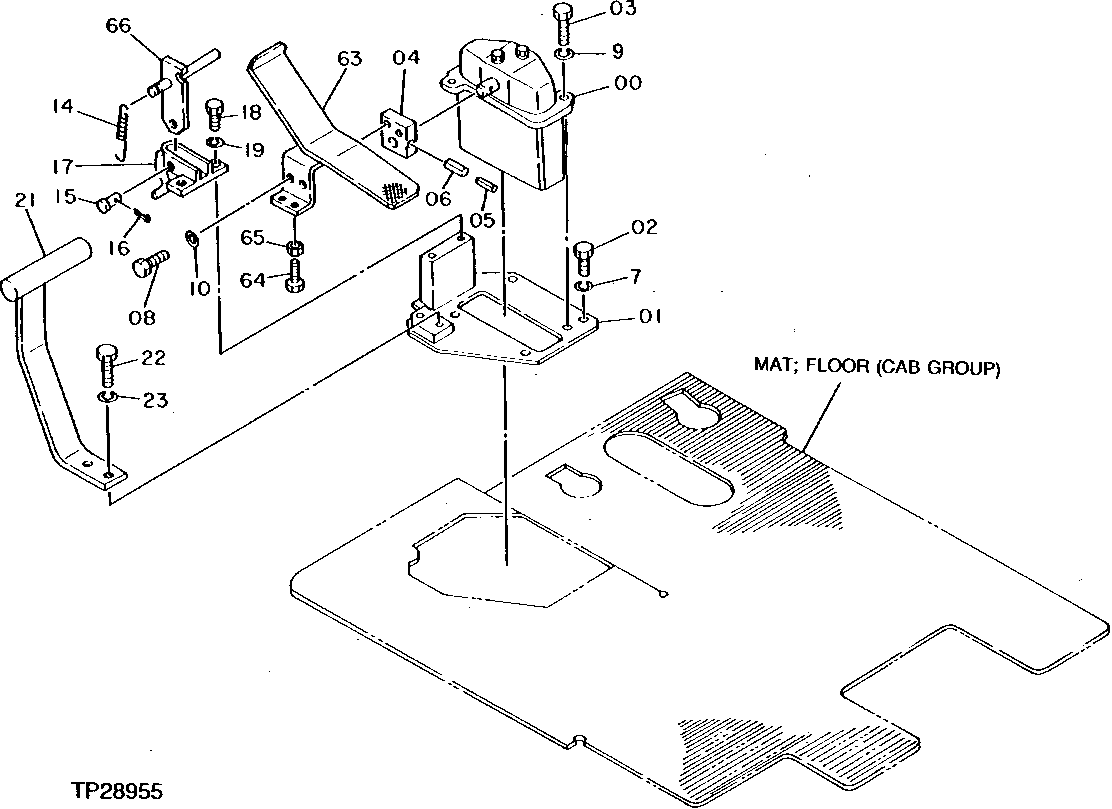

Запчасти John Deere 95D 2 - AUXILIARY FUNCTION PILOT VALVE PEDAL AND PEDAL LOCK 3315 - EXCAVATOR 33

0

9074843

HYD ACTUATED CONTROL VALVE

(SUB FOR TH110188)

1шт.

1

8041450

STAND

(SUB FOR AT127087)

1шт.

2

19M7662

CAP SCREW

M10 X 30

4шт.

3

19M7662

CAP SCREW

M10 X 30

1шт.

4

4211166

SUPPORT

(SUB FOR TH110190)

1шт.

5

34M7062

SPRING PIN

5 X 32 MM

1шт.

6

34M7124

SPRING PIN

8 X 30 MM, (SUB FOR 34M7065)

1шт.

7

12M7066

LOCK WASHER

10 MM

4шт.

8

19M7402

CAP SCREW

M10 X 25

2шт.

9

12M7066

LOCK WASHER

10 MM

1шт.

10

12M7066

LOCK WASHER

10 MM

2шт.

14

4149125

SPRING

(SUB FOR TH106748)

1шт.

15

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

1шт.

16

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR 11M7080)

1шт.

17

8034081

BRACKET

(SUB FOR TH110193)

1шт.

18

19M8761

SCREW

M10 X 22, (SUB FOR AT127980 OR TH100456)

2шт.

19

12M7066

LOCK WASHER

10 MM

2шт.

21

9728875

FOOTREST

(SUB FOR TH110195)

1шт.

22

19M7402

CAP SCREW

M10 X 25

2шт.

23

12M7066

LOCK WASHER

10 MM

2шт.

63

8046079

PEDAL

(SUB FOR AT134292)

1шт.

64

19M8008

CAP SCREW

M8 X 35, (SUB FOR AT134128)

2шт.

65

14M7273

NUT

M8

2шт.

66

9733399

BRACKET

(SUB FOR AT134303)

1шт.
