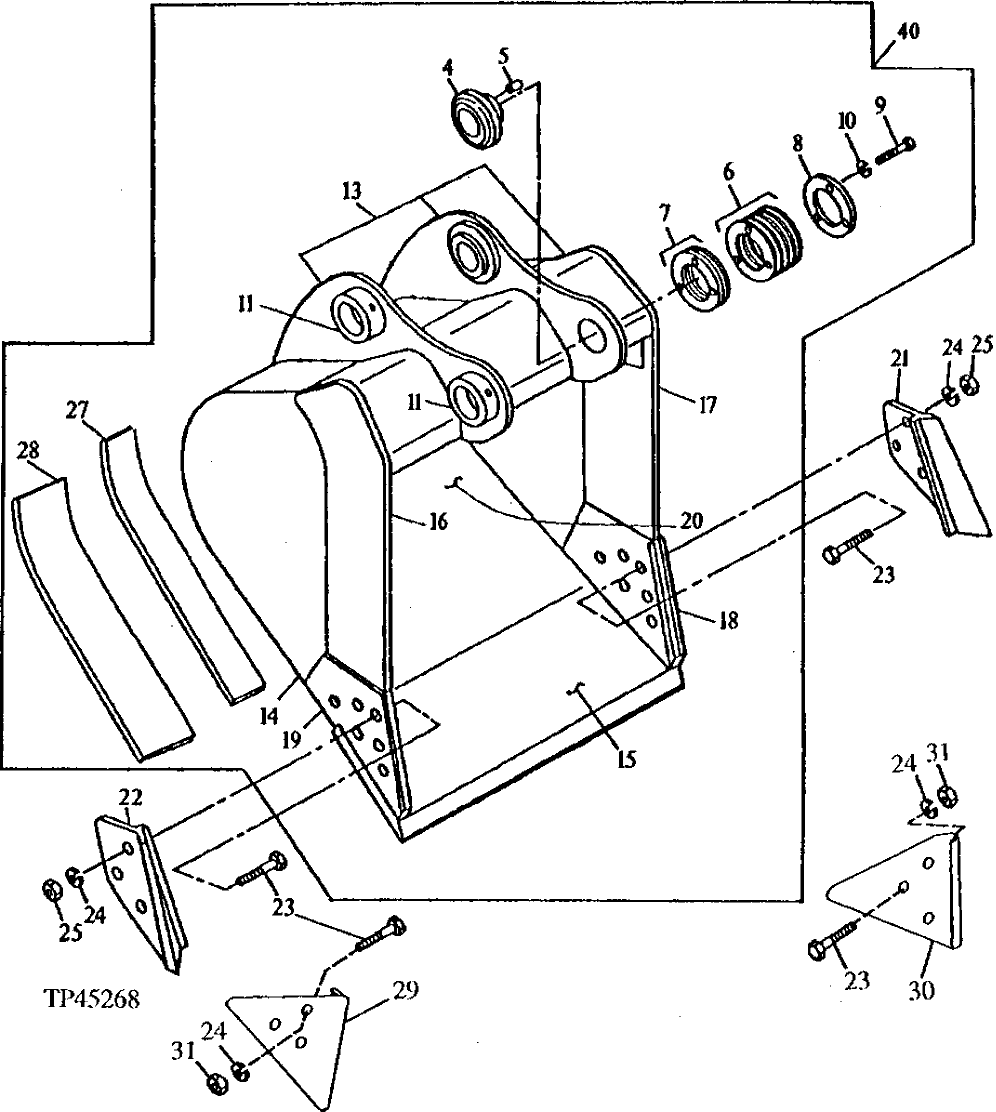

Запчасти John Deere 95D 8 - BUCKET 3302 - EXCAVATOR 33

4

3028363

BUSHING

(SUB FOR TH100346)

1шт.

5

4179109

PIN

10 X 25 MM (0.394" X 0.984") (SUB FOR TH103619)

1шт.

6

WASHER

(K) (SUB AT146242) ( TH100348 NO LONGER AVAILABLE)

7шт.

7

SHIM

(K) (SUB AT146242) ( TH100349 NO LONGER AVAILABLE)

3шт.

8

TH100347

SPACER

1шт.

9

19M7404

CAP SCREW

M14 X 40

3шт.

10

12H317

LOCK WASHER

14.288 MM (9/16")

3шт.

11

TH108649

BUSHING

2шт.

13

C607884

PIVOT

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

607048

PLATE

(F) (RIGHT AND LEFT SIDE)

2шт.

15

AT131081

DURA-MAX TM CUTTING EDGE

(CUT TO LENGTH)

1шт.

16

304960

VERTICAL CUTTER

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

304961

VERTICAL CUTTER

(F) (UPPER LEFT SIDE CUTTER)

1шт.

18

304968

VERTICAL CUTTER

(F) (LEFT SIDE CUTTER INSERT)

1шт.

19

304967

VERTICAL CUTTER

(F) (RIGHT SIDE CUTTER INSERT)

1шт.

20

604647

MOLDBOARD

(F) (18 INCH BUCKET)

1шт.

604650

MOLDBOARD

(F) (24 INCH BUCKET)

1шт.

604652

MOLDBOARD

(F) (30 INCH BUCKET)

1шт.

604653

MOLDBOARD

(F) (36 INCH BUCKET)

1шт.

21

CUTTING EDGE

(SUB AT131080) (K2)

1шт.

22

CUTTING EDGE

(SUB AT131080) (K2)

1шт.

23

09H1770

BOLT

22.225 X 63.500 MM (7/8" X 2-1/2") (K2) (K3)

6шт.

24

12H245

LOCK WASHER

22.225 MM (7/8") (K2) (K3)

6шт.

25

14H1077

NUT

22.225 MM (7/8") (K2)

6шт.

27

304966

BAR

(F) (INNER WEAR)

1шт.

28

306618

BAR

(F) (OUTER WEAR)

2шт.

29

SHROUD

(WEAR SHROUD) (SUB AT167874) (K3)

1шт.

30

SHROUD

(WEAR SHROUD) (SUB AT167874) (K3)

1шт.

31

14H1044

NUT

22.225 MM (7/8") (K3)

6шт.

40

EXCAVATOR BUCKET

(SUB FOR AT131012 OR AT131132) ( AT163516 NLA) (18 INCH - .34 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

(SUB FOR AT131013 OR AT131133) ( AT163518 NLA) (24 INCH - .50 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

(SUB FOR AT131014 OR AT131134) ( AT163517 NLA) (30 INCH - .64 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

(SUB FOR AT131015 OR AT131135) ( AT163520 NLA) (36 INCH - .78 CUBIC YARD)

1шт.
