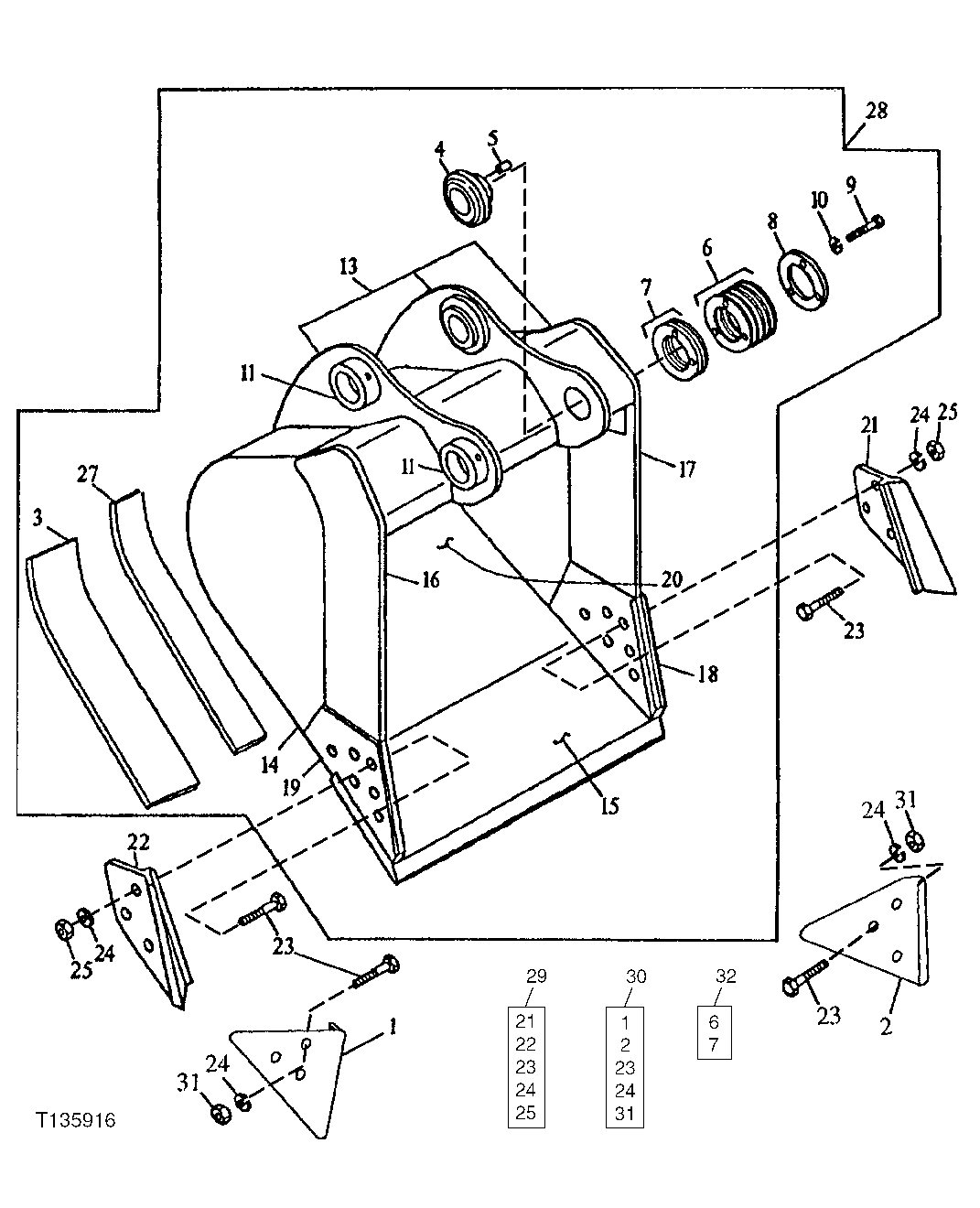

Запчасти John Deere 95D 6 - GENERAL PURPOSE BUCKET (490D) (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 - EXCAVATOR 33

1

SHROUD

(B) (RIGHT EDGE PROTECTOR)

1шт.

2

SHROUD

(B) (LEFT EDGE PROTECTOR)

1шт.

3

306618

BAR

(D) (OUTER WEAR)

2шт.

4

3028363

BUSHING

(SUB FOR TH100346)

1шт.

5

4179109

PIN

10 X 25 MM (0.394" X 0.984") (SUB FOR TH103619)

1шт.

6

SOLID SHIM

(C)

7шт.

7

SHIM

(C)

3шт.

8

TH100347

SPACER

1шт.

9

19M7404

CAP SCREW

M14 X 40

3шт.

10

12H317

LOCK WASHER

9/16"

3шт.

11

TH108649

BUSHING

2шт.

13

C607884

PIVOT

(D) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

607048

PLATE

(D) (RIGHT AND LEFT SIDE)

2шт.

15

AT131081

DURA-MAX TM CUTTING EDGE

(CUT TO LENGTH)

1шт.

16

304954

VERTICAL CUTTER

(D) (UPPER RIGHT SIDE CUTTER)

1шт.

17

304955

VERTICAL CUTTER

(D) (UPPER LEFT SIDE CUTTER)

1шт.

18

304953

VERTICAL CUTTER

(D) (LEFT SIDE CUTTER INSERT)

1шт.

19

304952

VERTICAL CUTTER

(D) (RIGHT SIDE CUTTER INSERT)

1шт.

20

604664

MOLDBOARD

(D) (18 INCH BUCKET)

1шт.

604667

MOLDBOARD

(D) (24 INCH BUCKET)

1шт.

604669

MOLDBOARD

(D) (30 INCH BUCKET)

1шт.

604670

MOLDBOARD

(D) (36 INCH BUCKET)

1шт.

604671

MOLDBOARD

(D) (42 INCH BUCKET)

1шт.

604672

MOLDBOARD

(D) (48 INCH BUCKET)

1шт.

21

CUTTING EDGE

(A) (LEFT HAND SIDE CUTTER)

1шт.

22

CUTTING EDGE

(A) (RIGHT HAND SIDE CUTTER)

1шт.

23

09H1770

BOLT

(A) (B) 7/8" X 2-1/2"

6шт.

24

12H245

LOCK WASHER

(A) (B) 7/8"

6шт.

25

14H1077

NUT

(A) 7/8"

6шт.

27

304966

BAR

(D) (INNER WEAR)

1шт.

28

EXCAVATOR BUCKET

( AT163507 NLA) (SUB FOR AT131006 OR AT131126) (18 INCH - .34 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

( AT163508 NLA) (SUB FOR AT131007 OR AT131127) (24 INCH - .50 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

( AT163509 NLA) (SUB FOR AT131008 OR AT131128) (30 INCH - .64 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

( AT163510 NLA) (SUB FOR AT131009 OR AT131129) (36 INCH - .78 CUBIC YARD)

1шт.

EXCAVATOR BUCKET

( AT136514 NLA) (SUB FOR AT131011 OR AT131131) (48 INCH - 1.06 CUBIC YARD)

1шт.

29

( AT131080 NLA) (SIDE CUTTER) (INCLUDES PARTS MARKED (A))

1шт.

30

KIT

( AT167874 NLA) (EDGE PROTECTOR) (INCLUDES PARTS MARKED (B))

1шт.

31

14H1044

NUT

7/8"

6шт.

32

AT146242

SHIM KIT

(INCLUDES PARTS MARKED (C))

1шт.
