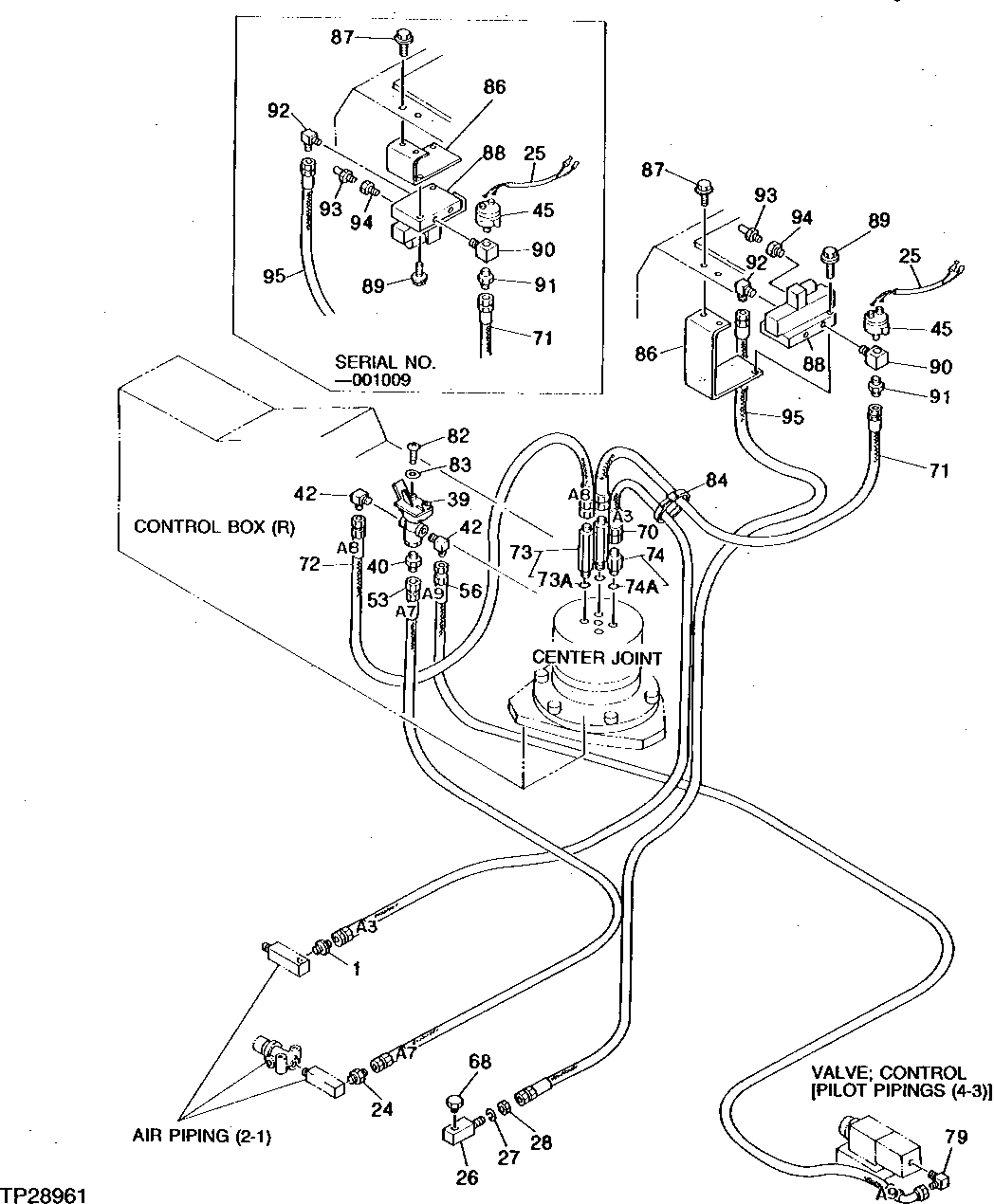

Запчасти John Deere 95D 10 - COMPRESSED AIR FOOT VALVE, CONTROL VALVE, HOSES AND LINES 2261 - PNEUMATIC SYSTEMS 22

1

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

24

X4-4FTX-S

ADAPTER FITTING

(SUB FOR X0103-4-4) (SUB FOR TH100963)

1шт.

25

4218694

WIRING HARNESS

(SUB FOR AT126718)

1шт.

26

4209197

ADAPTER FITTING

(SUB FOR AT126465)

1шт.

27

12H301

LOCK WASHER

1/2"

1шт.

28

14H1047

NUT

7/16", (SUB FOR AT126466)

1шт.

39

4182316

HYD ACTUATED CONTROL VALVE

(SUB FOR AT126262)

1шт.

40

X4-4FTX-S

ADAPTER FITTING

(SUB FOR X0103-4-4) (SUB FOR TH100963)

1шт.

42

4154656

ELBOW FITTING

(SUB FOR TH101588)

2шт.

45

4086377

PRESSURE SWITCH

(SUB FOR TH103992)

1шт.

53

AE42282

HYDRAULIC HOSE

(SUB FOR AT126443)

1шт.

56

AT131891

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126689)

1шт.

68

M800462

PLUG

(SUB FOR TH101049)

1шт.

70

AT48434

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126479)

1шт.

71

4250096

HYDRAULIC HOSE

(SUB FOR AT134331)

1шт.

72

AE42280

HYDRAULIC HOSE

(SUB FOR AT126481)

1шт.

73

4209930

ADAPTER FITTING

(SUB FOR AT126496)

2шт.

73A

M800650

PACKING

1шт.

74

4200467

ADAPTER FITTING

(SUB FOR AT126497) (SUB FOR TH108417)

1шт.

74A

M800650

PACKING

1шт.

79

4154656

ELBOW FITTING

(SUB FOR TH101588)

1шт.

82

21M7246

SCREW

M6 X 16

2шт.

83

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

84

H77698

TIE BAND

3шт.

86

4252524

BRACKET

(SUB FOR AT134332)

1шт.

87

19M7938

CAP SCREW

M10 X 20

2шт.

88

4453817

SOLENOID VALVE

(SUB FOR TH103987)

1шт.

89

19M7299

CAP SCREW

M6 X 45

2шт.

90

4086599

TEE FITTING

(SUB FOR AT134333)

1шт.

91

X4-4FTX-S

ADAPTER FITTING

(SUB FOR X0103-4-4) (SUB FOR TH100963)

1шт.

92

4154656

ELBOW FITTING

(SUB FOR TH101588)

1шт.

93

4168366

BLEED VALVE

(SUB FOR TH103990)

1шт.

94

94-1601

PIPE BUSHING

(SUB FOR TH103472)

1шт.

95

4250095

HYDRAULIC HOSE

(SUB FOR AT134334)

1шт.
