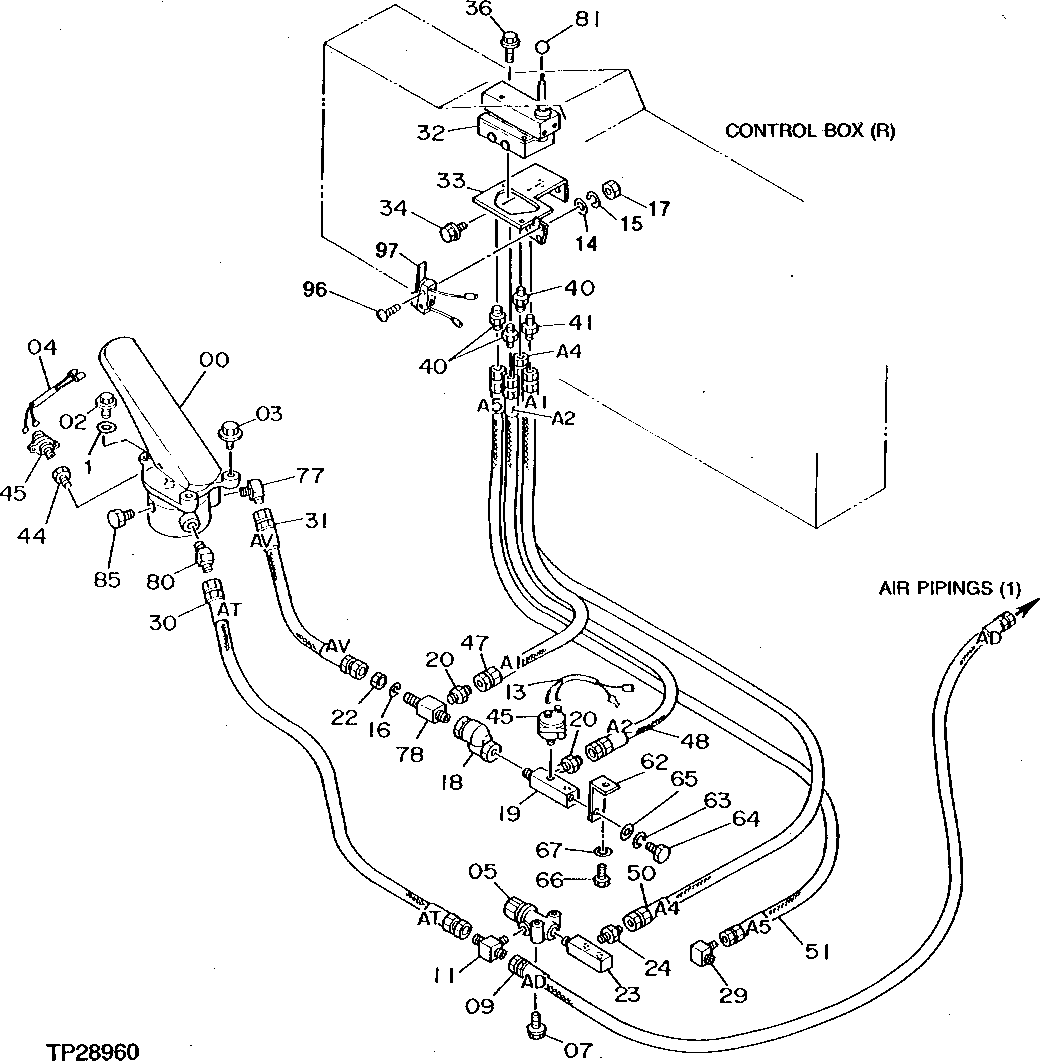

Запчасти John Deere 95D 8 - COMPRESSED AIR FOOT VALVE, CONTROL VALVE, HOSES AND LINES 2261 - PNEUMATIC SYSTEMS 22

0

4086378

FLOW CONTROL HYD. VALVE

(SUB FOR TH103991)

1шт.

1

12M7066

LOCK WASHER

10 MM

1шт.

2

19M7662

CAP SCREW

M10 X 30

1шт.

3

19M7358

CAP SCREW

M10 X 40

2шт.

4

4218695

WIRING HARNESS

(SUB FOR AT126719)

1шт.

5

4123646

FLOW CONTROL HYD. VALVE

(SUB FOR TH103994)

1шт.

7

19M7299

CAP SCREW

M6 X 45

2шт.

9

AE42000

HYDRAULIC HOSE

(SUB FOR AT126438)

1шт.

11

4211164

TEE FITTING

(SUB FOR AT126510)

1шт.

13

4218693

WIRING HARNESS

(SUB FOR AT126717)

1шт.

14

24M7117

WASHER

4.300 X 9 X 0.800 MM

2шт.

15

12H315

LOCK WASHER

(SUB FOR 12M7063)

2шт.

16

12H294

LOCK WASHER

5/8"

1шт.

17

14M7139

NUT

M4, (SUB FOR 14M7100)

2шт.

18

986953

CHECK VALVE

(SUB FOR TH102095)

1шт.

19

4195752

ADAPTER FITTING

(SUB FOR AT126297)

1шт.

20

X4-4FTX-S

ADAPTER FITTING

(SUB FOR X0103-4-4) (SUB FOR TH100963)

2шт.

22

14H888

NUT

9/16", (SUB FOR TH108439)

1шт.

23

4195753

ADAPTER FITTING

(SUB FOR AT126298)

1шт.

24

X4-4FTX-S

ADAPTER FITTING

(SUB FOR X0103-4-4) (SUB FOR TH100963)

1шт.

29

4154656

ELBOW FITTING

(SUB FOR TH101588)

1шт.

30

AT57860

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126500)

1шт.

31

AT48428

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126499)

1шт.

32

4251653

HYD ACTUATED CONTROL VALVE

(SUB FOR AT134329)

1шт.

33

8046439

BRACKET

(SUB FOR AT134330)

1шт.

34

12M7056

LOCK WASHER

(SUB FOR AT133601) (SUB 19M7881 AND 12M7065)

2шт.

19M7881

SCREW

M8 X 20

2шт.

12M7056

LOCK WASHER

8 MM, (USE WITH 19M7881) (SUB FOR 12M7065)

2шт.

36

19M7299

CAP SCREW

M6 X 45

2шт.

40

X4-4FTX-S

ADAPTER FITTING

(SUB FOR TH100963)

3шт.

41

4156430

ADAPTER FITTING

(SUB FOR TH101937)

1шт.

44

94-1601

PIPE BUSHING

(SUB FOR TH103472)

1шт.

45

4086377

PRESSURE SWITCH

(SUB FOR TH103992)

2шт.

47

AT132513

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126439)

1шт.

48

AT126850

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126440)

1шт.

50

AH96002

HYDRAULIC HOSE

(SUB FOR AT126441)

1шт.

51

AH96002

HYDRAULIC HOSE

(SUB FOR AT126442)

1шт.

62

4208620

ANGLE

(SUB FOR AT126448)

1шт.

63

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

64

19M7932

CAP SCREW

M8 X 16

1шт.

65

24M7055

WASHER

8.400 X 16 X 1.600 MM

1шт.

66

19M8324

CAP SCREW

M10 X 16

1шт.

67

12M7066

LOCK WASHER

10 MM

1шт.

77

T115889

ELBOW FITTING

(SUB FOR TH101035)

1шт.

78

4211165

ADAPTER FITTING

(SUB FOR AT126511)

1шт.

80

4157919

ELBOW FITTING

(SUB FOR TH104011)

1шт.

81

4248745

GRIP

(SUB FOR AT134137)

1шт.

85

94-2012

FITTING PLUG

(SUB FOR TH100653)

1шт.

96

21M7369

SCREW

M4 X 25

2шт.

97

4180220

SWITCH

(SUB FOR AT126785) (SUB FOR AT126258)

1шт.
