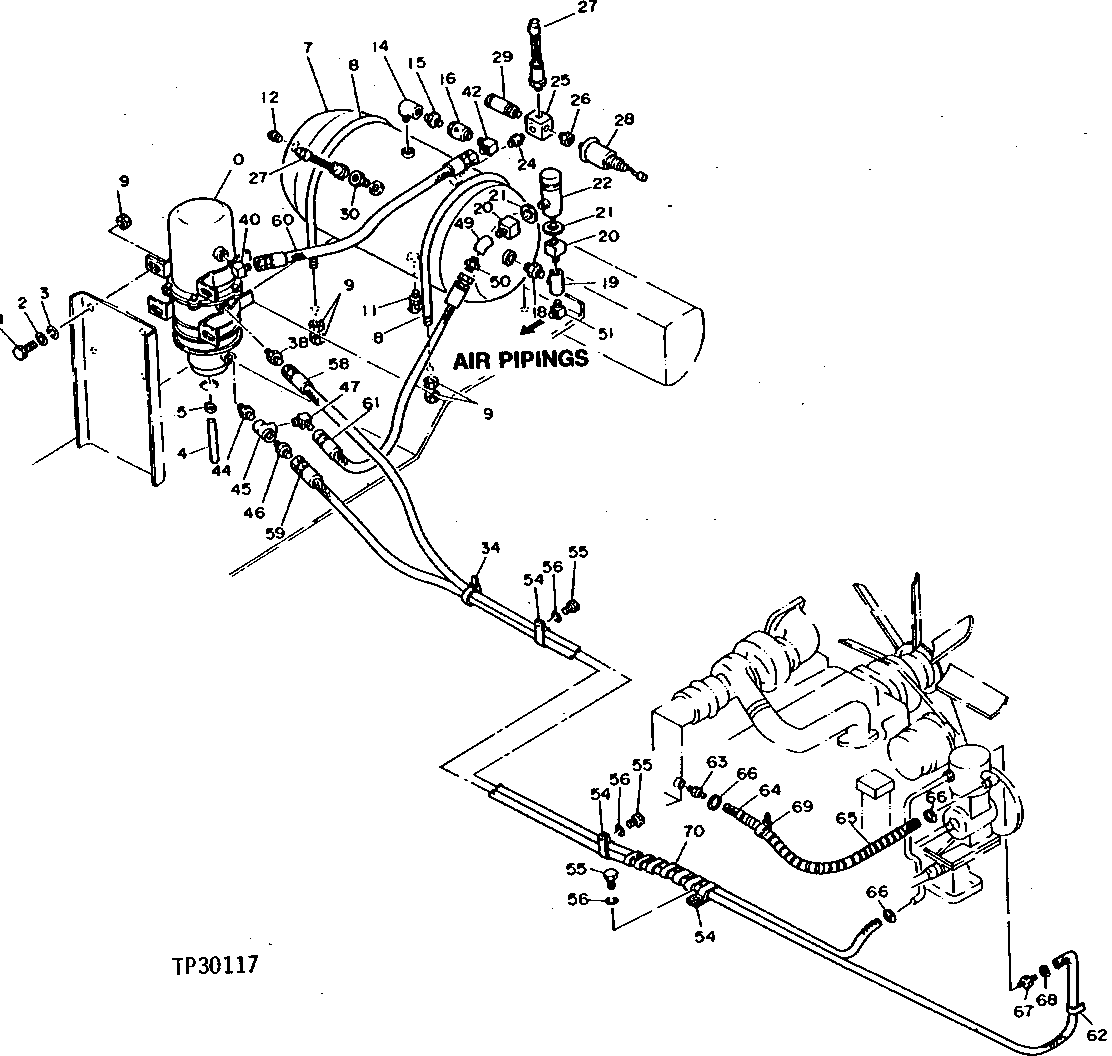

Запчасти John Deere 95D 6 - COMPRESSED AIR AND LINES TANK, DRIER, HOSES 2261 - PNEUMATIC SYSTEMS 22

0

4343737

RECEIVER-DRYER

(SUB FOR TH103966) (SUB FOR AT173104)

1шт.

1

19M8761

SCREW

M10 X 22, (SUB FOR AT127980 OR TH100456)

4шт.

2

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

3

12M7066

LOCK WASHER

10 MM

4шт.

4

HOSE

(CUT TO 3.93") (MAKE FROM TY22328) (SUB FOR AT126464)

1шт.

5

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

1шт.

7

4172102

TANK

(SUB FOR TH103968)

1шт.

8

4151541

U-BOLT

(SUB FOR TH103969)

2шт.

9

14M7274

NUT

M10

12шт.

11

4172103

DRAIN VALVE

(SUB FOR TH103970)

1шт.

12

94-2024

FITTING PLUG

(SUB FOR TH101292)

1шт.

14

94-0632

ELBOW FITTING

(SUB FOR TH107042)

1шт.

15

94-1902

ADAPTER FITTING

(SUB FOR TH102083)

1шт.

16

986953

CHECK VALVE

(SUB FOR TH102095)

1шт.

18

94-1902

ADAPTER FITTING

(SUB FOR TH102083)

1шт.

19

94-0661

TEE FITTING

(SUB FOR TH102950)

1шт.

20

499820

ADAPTER FITTING

(SUB FOR TH103973)

2шт.

21

984219

SEALING WASHER

(SUB FOR TH103974)

2шт.

22

4092238

GOVERNOR

(SUB FOR TH103975)

1шт.

24

94-1908

ADAPTER FITTING

(SUB FOR AT127193)

1шт.

25

4165163

MANIFOLD

(SUB FOR AT126223)

1шт.

26

3052675

PIPE BUSHING

(SUB FOR AT127192) (SUB FOR AT136549)

1шт.

27

4206449

PRESSURE SWITCH

(SUB FOR TH110094)

2шт.

28

4168339

SENDER

(SUB FOR TH103993)

1шт.

29

986952

VALVE

(SUB FOR TH102104)

1шт.

30

94-1608

PIPE BUSHING

(SUB FOR TH103982)

1шт.

34

H77698

TIE BAND

7шт.

38

4154653

ADAPTER FITTING

(SUB FOR AT126746) (SUB FOR TH100989)

1шт.

40

4207744

ELBOW FITTING

(SUB FOR AT126388)

1шт.

42

T115889

ELBOW FITTING

(SUB FOR TH101035)

1шт.

44

94-1901

ADAPTER FITTING

(SUB FOR TH102106)

1шт.

45

94-0661

TEE FITTING

(SUB FOR TH102950)

1шт.

46

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

47

4182734

ELBOW FITTING

(SUB FOR TH104010)

1шт.

49

94-0601

ELBOW FITTING

(SUB FOR AT127191)

1шт.

50

4156430

ADAPTER FITTING

(SUB FOR TH101937)

1шт.

51

T115889

ELBOW FITTING

(SUB FOR TH101035)

1шт.

54

T32854

CLAMP

(SUB FOR AT121964)

3шт.

55

19M8324

CAP SCREW

M10 X 16

3шт.

56

12M7066

LOCK WASHER

10 MM

3шт.

58

AT126880

HYDRAULIC HOSE - FABRICATE

1шт.

59

AH89075

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT126495)

1шт.

60

AR98204

HYDRAULIC HOSE

(SUB FOR AT126490)

1шт.

61

AE42718

HYDRAULIC HOSE

(SUB FOR AT126489)

1шт.

62

4192965

CLAMP

(SUB FOR TH105628)

2шт.

63

4168965

FITTING

(SUB FOR TH102119)

1шт.

64

4183590

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH103979)

1шт.

65

4432360

HOSE GUARD

(SUB FOR TH105627 OR 4192956)

1шт.

66

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

3шт.

67

R67293

FITTING

(SUB FOR TH102116)

1шт.

68

TY22464

CLAMP

(SUB FOR TH100896 AND AT145649) (SUB FOR AR21836)

1шт.

69

H77698

TIE BAND

5шт.

70

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR TH100996, AT138222 OR 3052919)

1шт.
