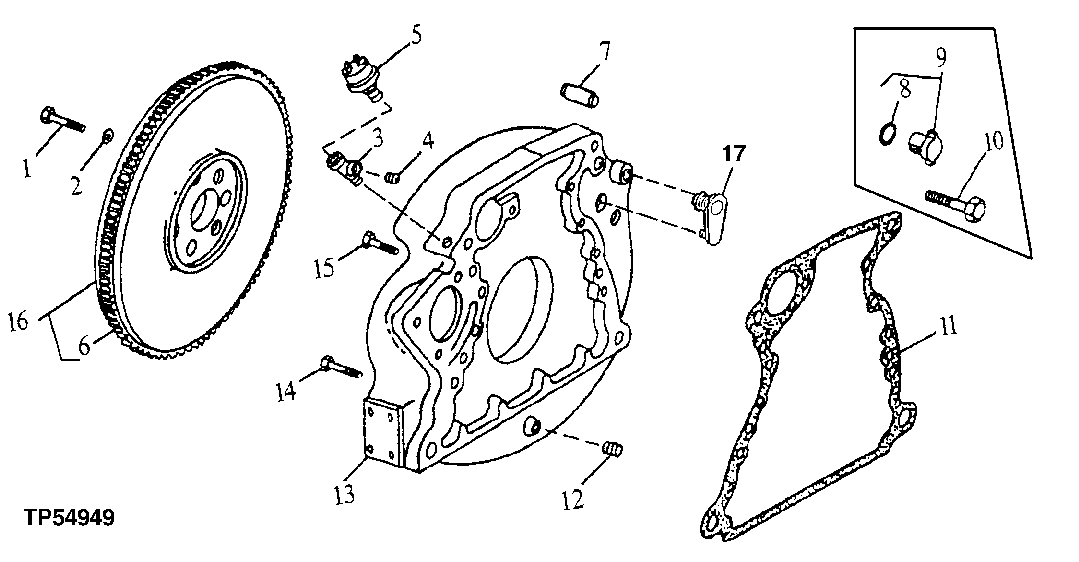

Запчасти John Deere 90E 60 - Flywheel / Housing 0433 Flywheel, Housing & Fastenings 4045TT009 4045TT009

1

19H2993

Cap Screw

1/2" X 1-1/2" , (HS, SAE 8)

4шт.

2

T23891

Washer

4шт.

3

R70752

Tee Fitting

1шт.

4

R104592

Pipe Plug

3.175 mm (1/8")

1шт.

5

AT157548

Switch

(SUB FOR AT157548) ENGINE HOUR METER

1шт.

37H90

Screw

0.164" X 5/16" Not Shown

2шт.

6

R28811

Ring Gear

(129 TEETH)

1шт.

7

R48685

Dowel Pin

2шт.

8

R27149

O-Ring

ARшт.

9

AR61533

Plug

ARшт.

10

19H2351

Cap Screw

1/2" X 1/2"

ARшт.

11

R97351

Gasket

1шт.

12

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

13

R120586

Housing

(SUB FOR R110188)

1шт.

14

19H1847

Cap Screw

5/8" X 2-1/2"

4шт.

15

19H3219

Cap Screw

3/8" X 1-3/8"

8шт.

16

RE500511

Flywheel

(MARKED R122406) (SUB FOR RE58571), (MARKE D R122406), (SUB FOR RE24281), (MARKED R844 85) (SUB FOR RE46293, AND (MARKED R109008)

1шт.

17

R131769

Plug

1шт.
