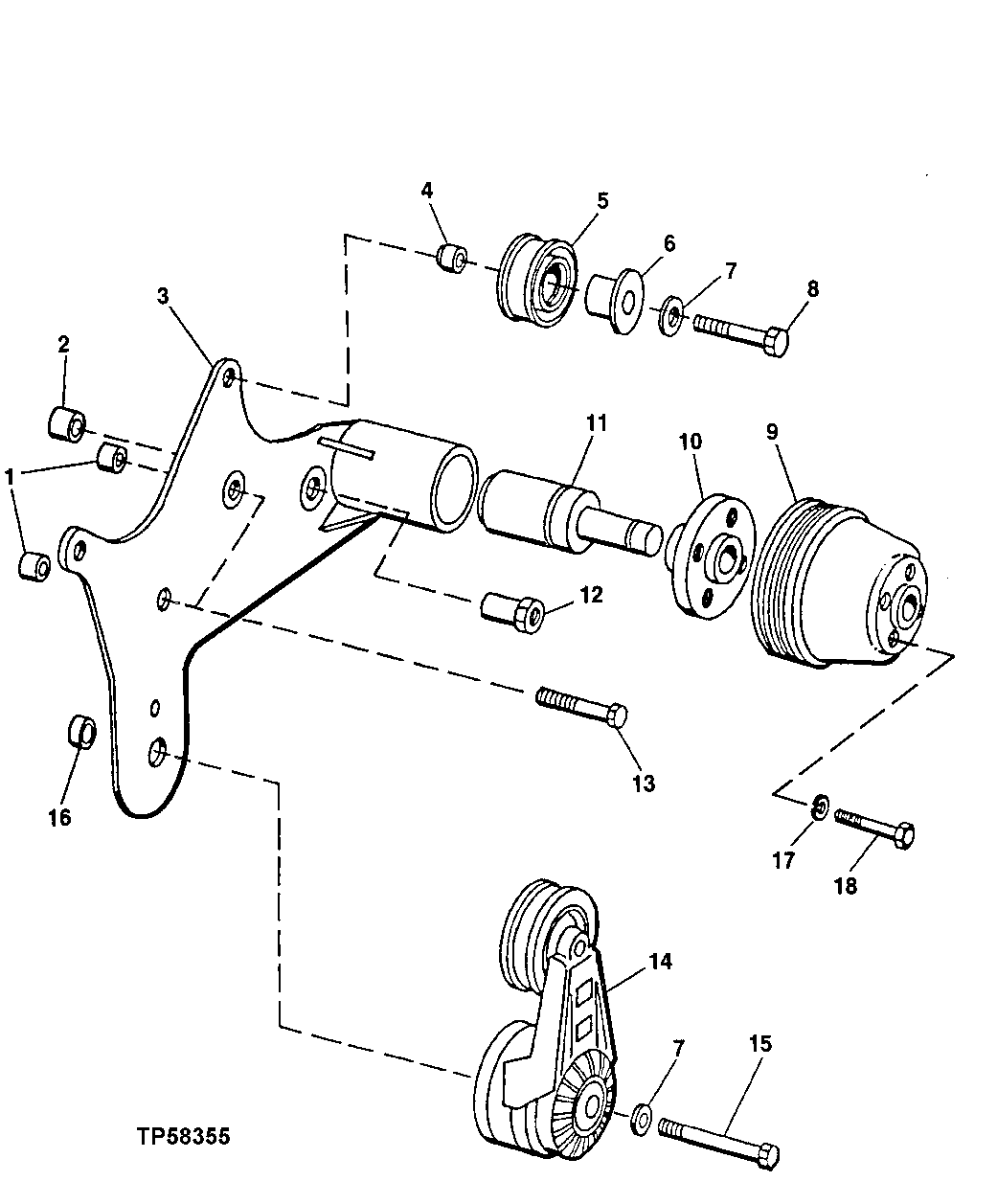

Запчасти John Deere 90E 59 - FAN DRIVE AND PULLEYS 0429 Fan Drive (Damper, Idler, Pulleys, & Belt) 4045TT009 4045TT009

1

R107653

Spacer

2шт.

2

R129941

Bushing

(SUB FOR R107652)

2шт.

3

RE46126

Bearing Housing W/O Bearing

1шт.

4

R500320

Spacer

(SUB FOR R107654)

1шт.

5

RE505264

Pulley

(SUB FOR RE39535, RE51281 AND RE68722)

1шт.

6

R502079

Sleeve

(SUB FOR R500352, AND R 107749THIS APPLICATION)

1шт.

7

24H1652

Washer

13/32" X 11/16" X 7/64"

2шт.

8

19M8499

Cap Screw

M10 X 60

1шт.

9

R107199

Pulley

1шт.

10

R100743

Hub

1шт.

11

JD10058

Ball Bearing

1шт.

12

R129938

Nut

(SUB FOR R96523)

2шт.

13

19H2855

Cap Screw

3/8" X 3-1/4"

2шт.

14

RE68715

Belt Tensioner

(SUB FOR RE37981)

1шт.

15

19H2229

Cap Screw

3/8" X 5-1/4"

1шт.

16

R121984

Spacer

(SUB FOR R107651)

1шт.

17

12H304

Lock Washer

3/8"

4шт.

18

19H3217

Cap Screw

3/8" X 1-3/4"

4шт.
