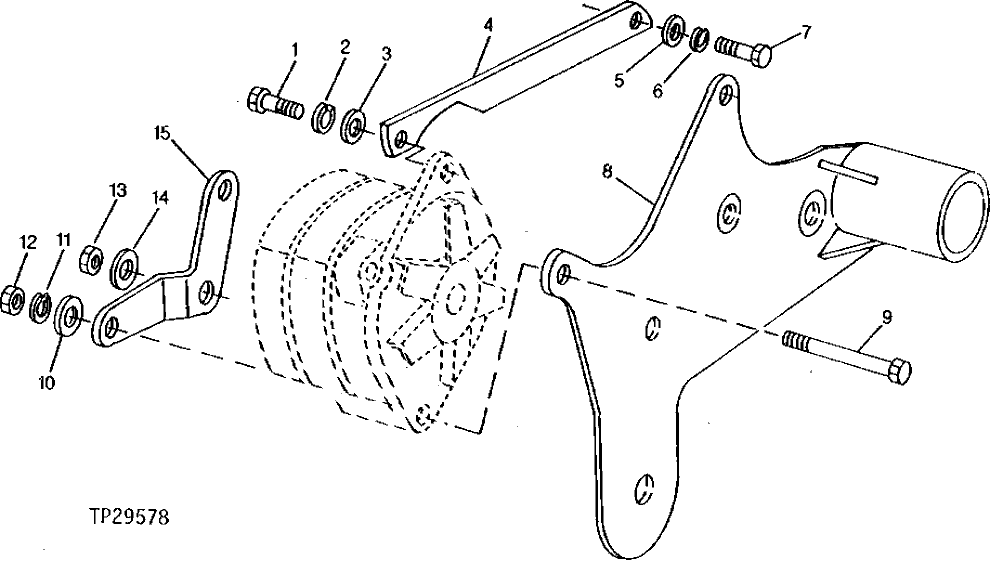

Запчасти John Deere 90E 57 - Alternator Mounting Brackets 0423 Alternator And Generator Mounting 4045TT009 4045TT009

1

19M7407

Cap Screw

M8 X 25

1шт.

2

12H303

Lock Washer

5/16"

1шт.

3

24H1621

Washer

11/32" X 1" X 0.220"

1шт.

4

R108821

Strap

2шт.

5

24H1020

Washer

13/32" X 23/32" X 0.120"

1шт.

6

12H304

Lock Washer

3/8"

1шт.

7

19H3217

Cap Screw

3/8" X 1-3/4"

1шт.

8

RE46126

Bearing Housing W/O Bearing

1шт.

9

19M8197

Cap Screw

M10 X 85

1шт.

10

24H1822

Washer

11/32" X 7/8" X 1/16"

ARшт.

11

12M7066

Lock Washer

10 mm

1шт.

12

14M7274

Nut

M10

1шт.

13

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

2шт.

14

24H1304

Washer

13/32" X 23/32" X 0.120"

ARшт.

15

R108743

Bracket

1шт.
