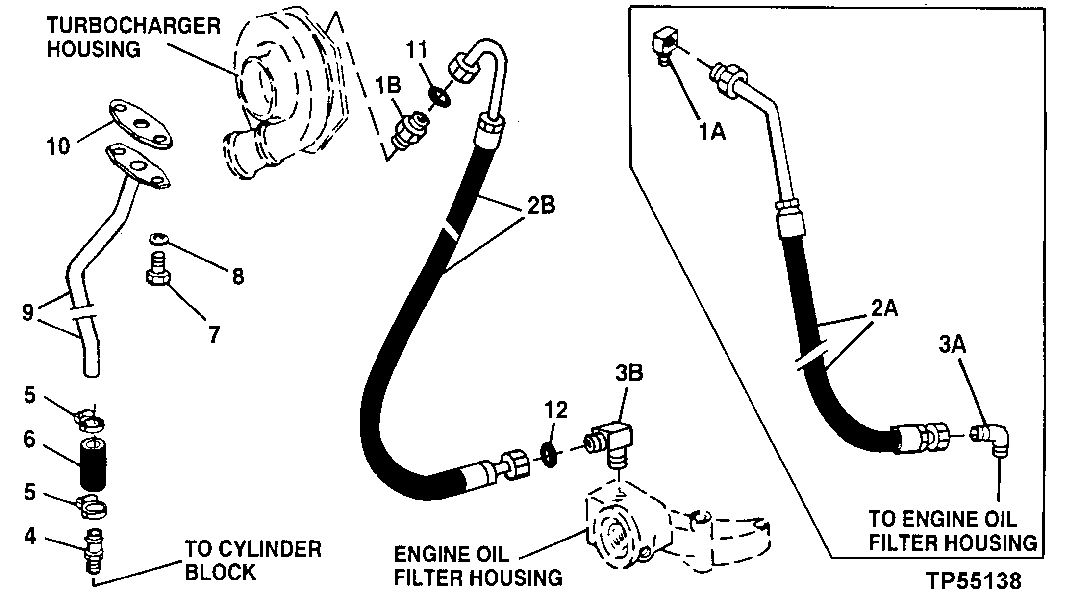

Запчасти John Deere 90E 49 - Turbocharger Oil Lines 0416 Turbocharger 4045TT009 4045TT009

1A

T11180

Elbow Fitting

1шт.

1B

M87733

Adapter Fitting

1шт.

2A

RE45421

Hydraulic Hose

1шт.

2B

RE503214

Oil Line

(SUB FOR RE62385)

1шт.

3A

T19898

Fitting

1шт.

3B

38H1045

Elbow Fitting

1шт.

4

R39503

Fitting

1шт.

5

AR21839

Clamp

2шт.

6

Hose

(CTL) (MAKE FROM R120013) (SUB FOR R81210)

1шт.

7

19H2284

Cap Screw

3/8" X 7/8" (USE W/ RE43316)

2шт.

R124277

Cap Screw

(USE W/ RE62098)

2шт.

8

12H304

Lock Washer

3/8" (USE W/ 19H2284)

2шт.

9

RE62098

Oil Line

(SUB FOR RE43316) (ALSO ORDER (2) R124277)

1шт.

10

R105346

Gasket

1шт.

11

R63548

O-Ring

1шт.

12

R26448

O-Ring

1шт.
