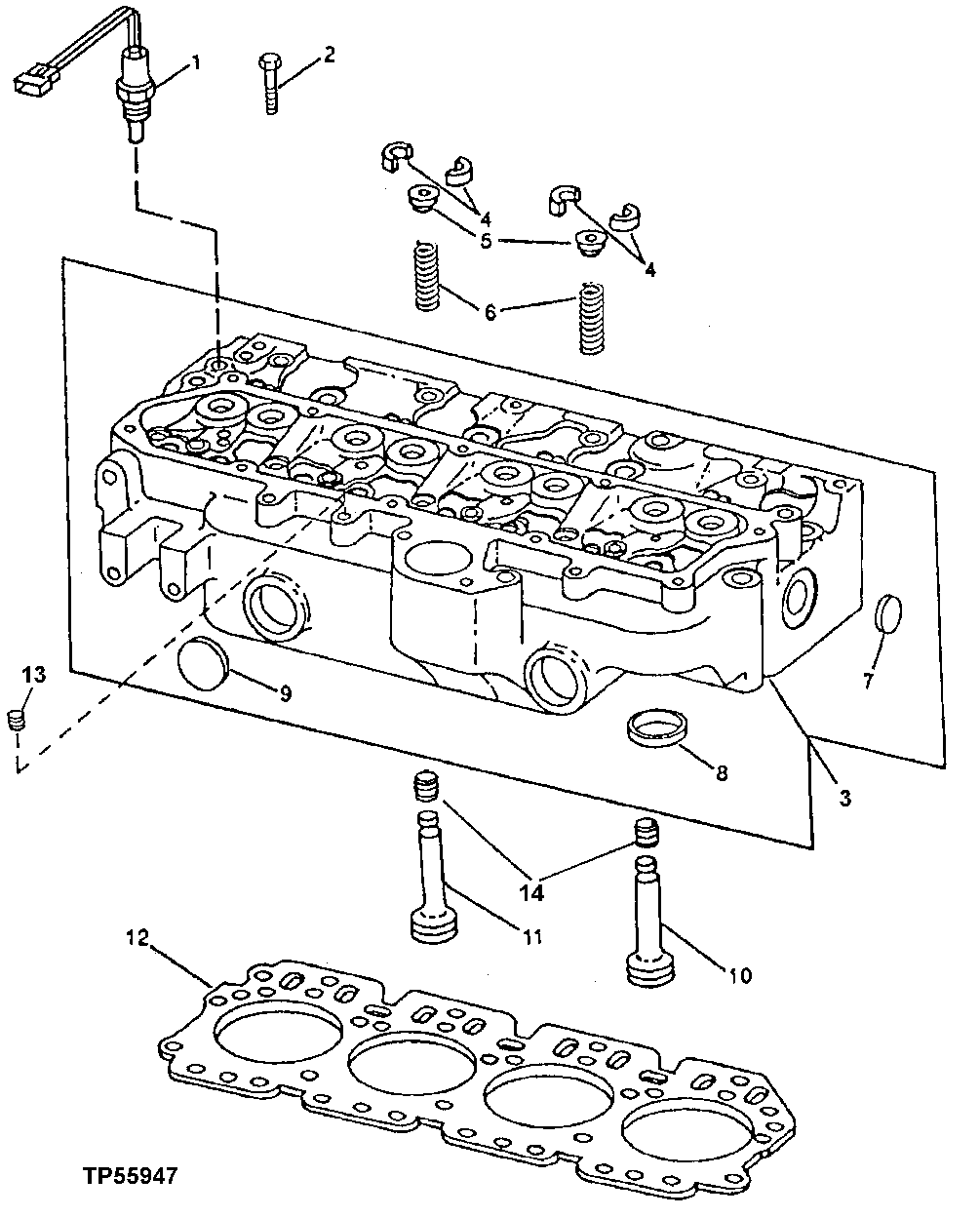

Запчасти John Deere 90E 40 - Cylinder Head, Head Gasket, Valves and Temperature Switch 0409 Cylinder Head and Valves 4045TT009 4045TT009

1

AH139059

Temperature Switch

Engine Temperature

1шт.

2

R85363

Cap Screw

18шт.

3

RE48616

Cylinder Head

(MARKED ( R111949) (SUB RE48615)

1шт.

RE48615

Cylinder Head

(MARKED R112746, R111949 OR R97628)

1шт.

SE501585

Cylinder Head Reman

(MARKED R112746, R111949 OR R97628) (REMAN FOR RE48615)

1шт.

4

R91889

Retainer

16шт.

5

RE60005

Rotator

(SUB FOR RE31323)

8шт.

6

R26125

Spring

8шт.

7

A3910R

Plug

2шт.

8

R98063

Valve Seat Insert

Standard Size Intake Valve

4шт.

R98335

Valve Seat Insert

Oversize Intake Valve

4шт.

R85687

Valve Seat Insert

Standard Size Exhaust Valve

4шт.

R93910

Valve Seat Insert

Oversize Exhaust Valve

4шт.

9

R43409

Plug

2шт.

10

R90692

Exhaust Valve

Standard

4шт.

R97492

Exhaust Valve

015in. , Oversize

4шт.

R97493

Exhaust Valve

030in. , Oversize

4шт.

11

R98062

Intake Valve

Standard

4шт.

R97490

Intake Valve

015in. , Oversize

4шт.

R97491

Intake Valve

030in. , Oversize

4шт.

12

R125863

Gasket

(SUB FOR R92425)

1шт.

13

R104592

Pipe Plug

1шт.

14

RE31617

Seal

8шт.
