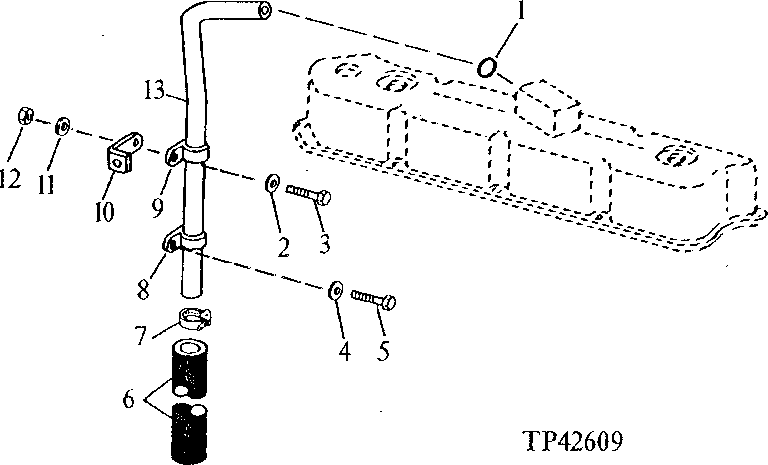

Запчасти John Deere 90E 39 - Engine Ventilator Tube 0408 Ventilating System 4045TT009 4045TT009

1

R56463

O-Ring

1шт.

2

24H1685

Washer

11/32" X 47/64" X 0.083"

1шт.

3

19H2284

Cap Screw

3/8" X 7/8"

1шт.

4

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

5

19H1813

Cap Screw

5/16" X 5/8"

1шт.

6

R88910

Hose

DO NOT REPLACE

NAшт.

7

AR21839

Clamp

DO NOT REPLACE

NAшт.

8

T24432

Clamp

1шт.

9

R40791

Clamp

1шт.

10

R73975

Bracket

1шт.

11

12H304

Lock Washer

3/8"

ARшт.

12

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

1шт.

13

R109941

Tube

1шт.
