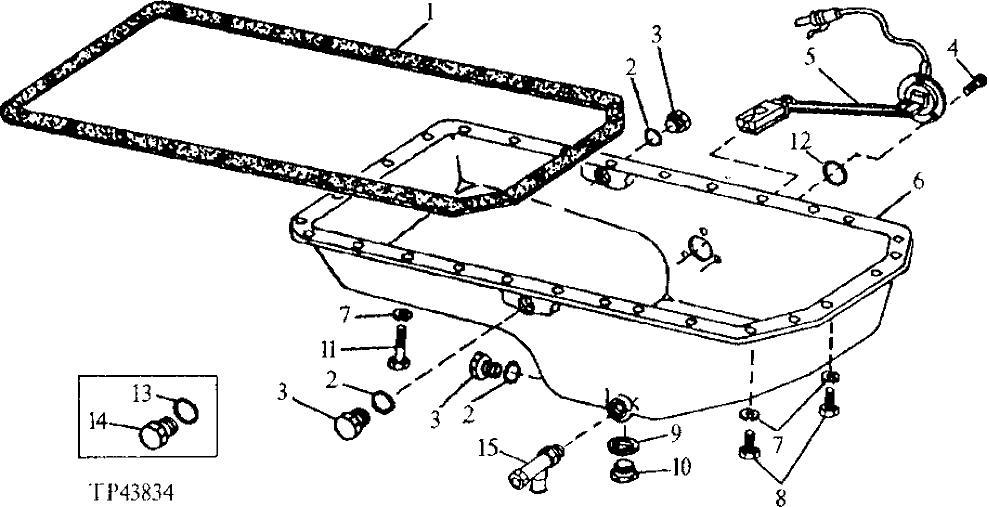

Запчасти John Deere 90E 33 - Engine Oil Pan and Gasket 0407 Engine Oiling System 4045TT009 4045TT009

1

R97342

Gasket

1шт.

2

R47151

O-Ring

3шт.

3

R27474

Drain Plug

3шт.

4

19M8425

Cap Screw

M6 X 16

3шт.

5

RE16223

Sensor

Engine Oil Level

1шт.

6

R107751

Oil Pan

1шт.

7

12H304

Lock Washer

3/8"

28шт.

8

19H3411

Screw

3/8" X 1-1/8"

20шт.

9

T13213

Washer

1шт.

10

M1746T

Drain Plug

1шт.

11

19H3065

Cap Screw

3/8" X 2"

8шт.

12

R47154

O-Ring

1шт.

13

R47151

O-Ring

1шт.

14

R27474

Drain Plug

1шт.

15

AT152180

Drain Valve

1шт.
