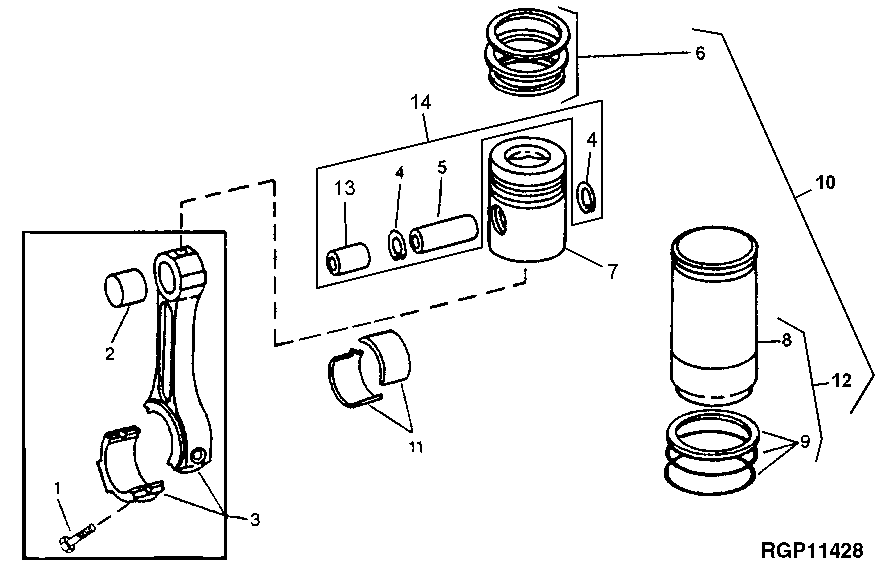

Запчасти John Deere 90E 29 - Connecting Rod, Piston and Liner 0403 Connecting Rods And Pistons 4045TT009 4045TT009

1

R74195

Screw

2шт.

2

Bushing

( R56186 NLA)

1шт.

3

RE53716

Connecting Rod

(MARKED R116851) (SUB FOR AR66400) (MARKED R56187)

4шт.

SE500746

Connecting Rod Reman

REMAN FOR RE53716

4шт.

4

R54114

Snap Ring

8шт.

5

Pin

( R124230 NLA, FURNISH RE63913)

4шт.

6

RE507852

Piston Ring Kit

(SUB FOR (4) RE15674, RE48818, RE66820)

4шт.

7

Piston

( RE28920 NLA, FURNISH RE53073)

4шт.

8

R121867

Cylinder Liner

(SUB FOR R80500) (SUB RE500024)

4шт.

9

AR65507

O-Ring Kit

4шт.

10

RE53073

Piston-Liner Kit

(SUB FOR RE28977)

4шт.

11

AR97517

Bearing

(SET OF (2) Standard ( R54801)

4шт.

Bearing

0.05mm (.002in.) , (SET OF (2) Undersize ( AR97652 NLA) R73595)

4шт.

AR97653

Bearing

0.25mm (.010in.) , (SET O F (2) Undersize ( R73596)

4шт.

AR97654

Bearing

0.51mm (.020in.) , (SET O F (2) Undersize ( R73597)

4шт.

AR97655

Bearing

0.76mm (.030in.) , (SET O F (2) Undersize ( R73598)

4шт.

12

RE500024

Cylinder Liner

4шт.

13

Bushing

4шт.

14

RE63913

Pin Kit

4шт.
