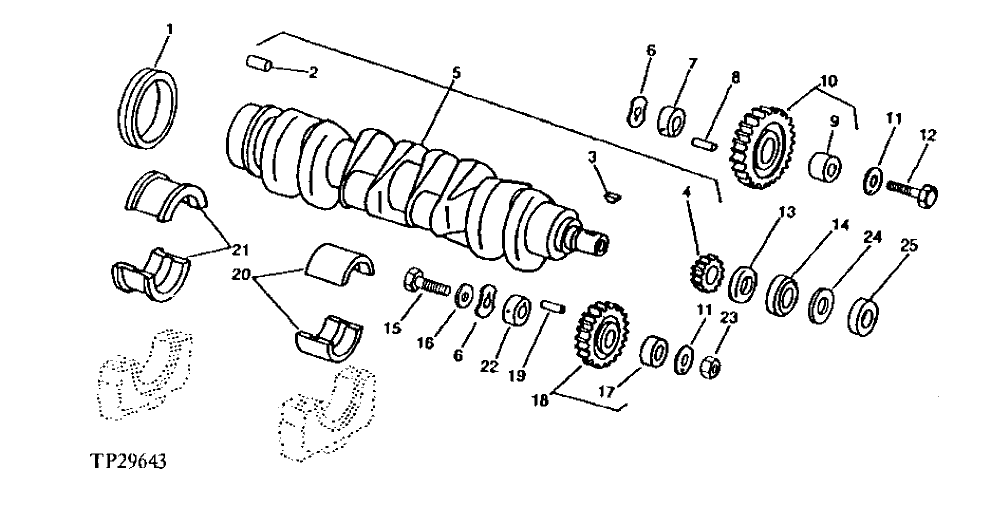

Запчасти John Deere 90E 23 - Crankshaft, Idler Gears / Main Bearings 0401 Crankshaft And Main Bearing 4045TT009 4045TT009

1

RE44574

Seal

1шт.

2

R48685

Dowel Pin

1шт.

3

26H90

Shaft Key

5/16" X 1-1/8"

1шт.

4

T20094

Helical Gear

(24 TEETH)

1шт.

5

Crankshaft

( RE55452), MARKED ( R108657) NLA (S UB FOR ( RE57661), MARKED ( R90825)), AND SUB ( RE54883) (CRANKSHAFT KIT)

1шт.

RE54883

Crankshaft

1шт.

SE501649

Crankshaft Reman

(A) REMAN FOR RE54883

1шт.

6

T26324

Thrust Washer

2шт.

7

R109863

Shaft

1шт.

8

34H283

Spring Pin

3/16" X 1-1/8"

1шт.

9

T20034

Bushing

1шт.

10

AR91660

Gear

(55 TEETH) (MARKED R70182)

1шт.

11

T26326

Thrust Washer

2шт.

12

T26327

Screw

1шт.

13

T20046

Oil Slinger

1шт.

14

AR67942

Seal

1шт.

15

19H3183

Cap Screw

1/2" X 2-1/8" , HS, SAE 8

1шт.

16

R100105

Washer

1шт.

17

T26321

Bushing

1шт.

18

AT24252

Gear

(45 TEETH), (MARKED T26322)

1шт.

19

34H286

Spring Pin

3/16" X 1-1/2"

1шт.

20

RE27352

Bearing Kit

(SUB FOR AT21140) STANDARD (MARKED T23214)

4шт.

AT21108

Bearing

0.05mm (.002in.) , Und ersize (MARKED T23552)

4шт.

RE27353

Bearing Kit

0.25mm (.010in.) , (SUB FOR AT2 1110) UNDERSIZE (MARKED T23554)

4шт.

RE27360

Bearing

0.51mm (.020in.) , (SUB FOR AT2 1112) UNDERSIZE (MARKED T23556)

4шт.

RE27368

Bearing

0.76mm (.030in.) , (SUB FOR AT2 1114) UNDERSIZE (MARKED T23558)

4шт.

21

R78598

Thrust Washer

(SUB FOR AT21139) STANDARD (MARKED T23215)

1шт.

Bearing

0.05mm (.002in.) , ( AT21130 NLA) UNDERSIZE (MARKED T23574)

1шт.

R78598

Thrust Washer

0.25mm (.010in.) , (SUB FOR AT2 1132) UNDERSIZE (MARKED R130574)

1шт.

AT21134

Bearing

0.51mm (.020in.) , Und ersize (MARKED T23578)

1шт.

AT21136

Bearing

0.76mm (.030in.) , Und ersize (MARKED T23580)

1шт.

22

R109863

Shaft

1шт.

23

E69392

Nut

1шт.

24

H35244

Ring

1шт.

25

R81989

Sleeve

1шт.
