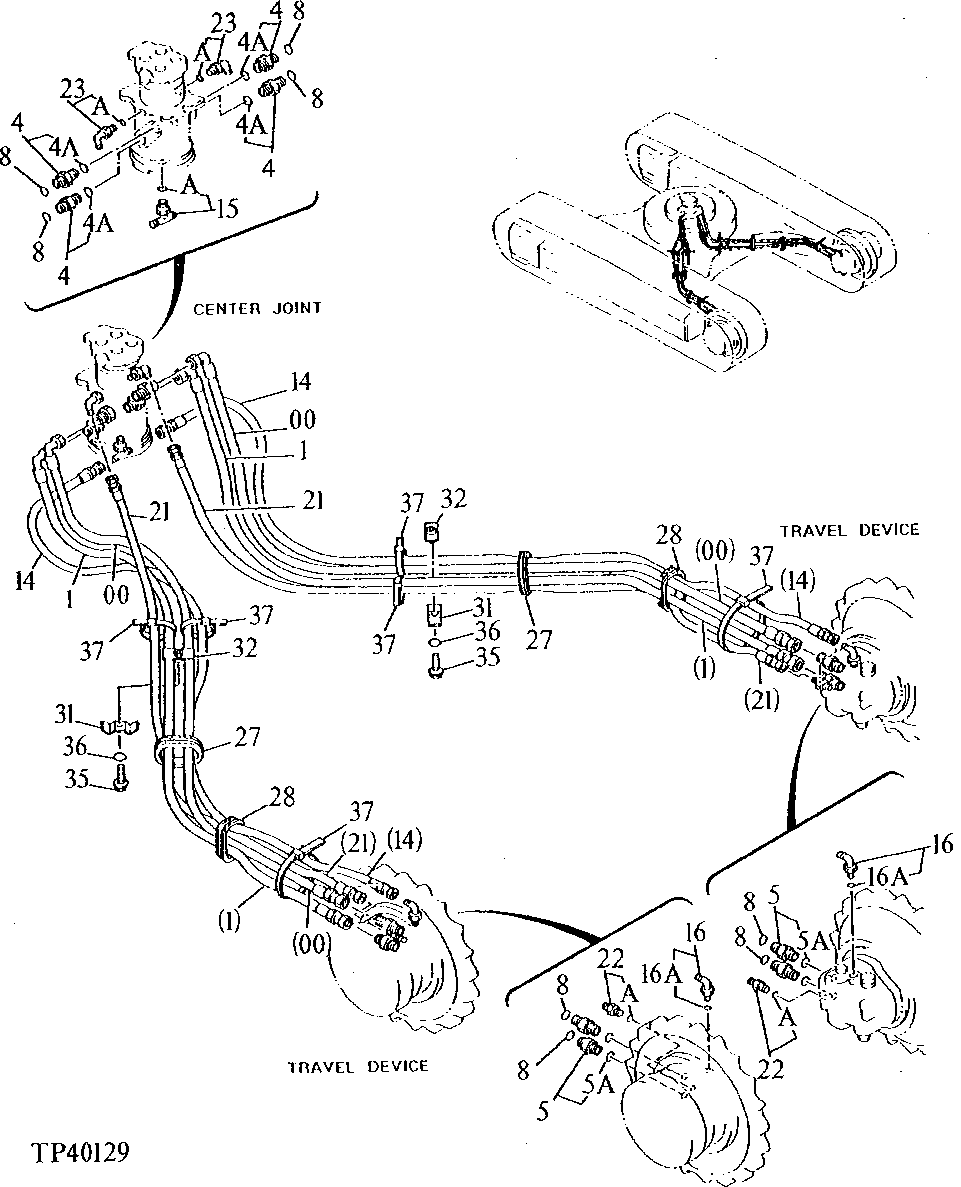

Запчасти John Deere 90E 19 - Travel Hydraulic Lines ( - 025866) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

AT154251

Hydraulic Hose

Forward

2шт.

1

AT154251

Hydraulic Hose

(SUB FOR AT154252) Reverse

2шт.

4

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

4шт.

4A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

5

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

4шт.

5A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

8

T77858

O-Ring

8шт.

14

AW22695

Hydraulic Hose

3/4" X 1800 mm (70-3/4") X 3 /4" (SUB FOR AE37096) Drain

2шт.

15

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

15A

4506418

O-Ring

(SUB FOR U46489)

1шт.

16

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

16A

4506418

O-Ring

(SUB FOR U46489)

1шт.

21

AE42281

Hydraulic Hose

11.1252" X 1850 mm (72 -3/4") X 11.1252" Drain

2шт.

22

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

22A

M800650

Packing

1шт.

23

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

23A

M800650

Packing

1шт.

27

4259603

Grommet

(SUB FOR AT154267)

2шт.

28

4259604

Grommet

(SUB FOR AT154268)

2шт.

31

4202103

Clamp

(SUB FOR TH108302)

2шт.

32

9727822

Clamp

(SUB FOR TH109556)

2шт.

35

19M7361

Cap Screw

M12 X 50

2шт.

36

12H301

Lock Washer

1/2"

2шт.

37

H77698

Tie Band

6шт.
