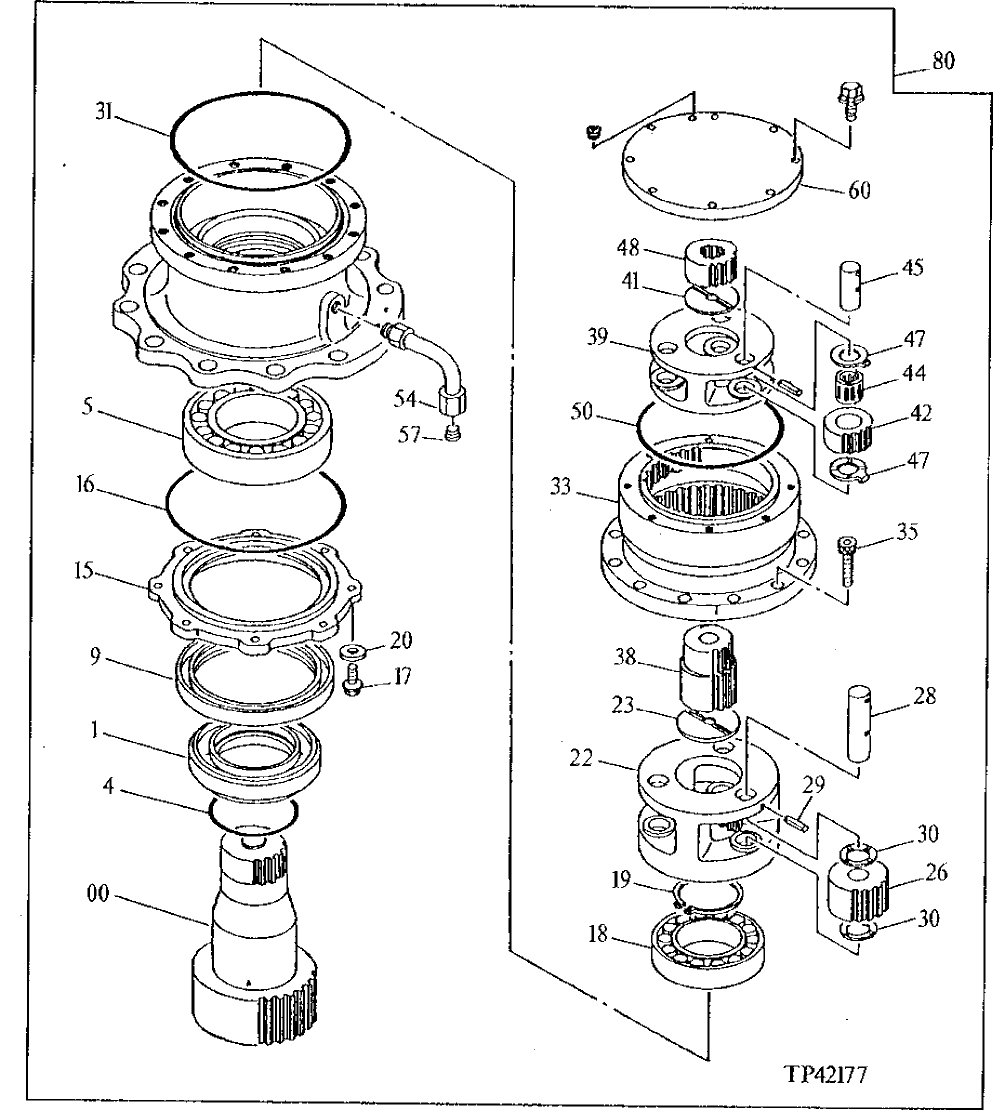

Запчасти John Deere 90E 278 - Swing Device 4360 Hydraulics

0

2028036

Shaft

(SUB FOR AT154065)

1шт.

1

4244693

Sleeve

(SUB FOR AT154178)

1шт.

4

AT264319

O-Ring

(SUB FOR T110447)

1шт.

5

TH109489

Spherical Roller Bearing

(SUB FOR AT154190)

1шт.

9

AT154177

Seal

1шт.

15

3058620

Cover

(SUB FOR AT158506)

1шт.

16

AT154182

O-Ring

1шт.

17

19M7550

Cap Screw

M10 X 35

8шт.

18

TH108271

Spherical Roller Bearing

1шт.

19

40M7150

Snap Ring

1шт.

20

12M7066

Lock Washer

10 mm

8шт.

22

2031003

Planet Pinion Carrier

(SUB FOR AT154081)

1шт.

23

4258089

Plate

(SUB FOR AT154249)

1шт.

26

9732811

Gear

(SUB FOR AT154542)

3шт.

28

4244696

Pin

(SUB FOR AT154179)

3шт.

29

34M7036

Spring Pin

5 X 45 mm (SUB FOR TH108264)

3шт.

30

4266255

Plate

(SUB FOR AT154298)

6шт.

31

AT154182

O-Ring

1шт.

33

2028037

Ring Gear

(SUB FOR AT154066)

1шт.

35

19M8712

Screw

M14 X 50

12шт.

38

3046918

Sun Gear

(SUB FOR AT154095)

1шт.

39

2031106

Planet Pinion Carrier

(SUB FOR AT154082)

1шт.

41

4244904

Plate

(SUB FOR AT154180)

1шт.

42

3069725

Gear

(SUB FOR AT154093) (SUB FOR AT215859)

1шт.

44

4249345

Needle Bearing

(SUB FOR AT154192)

3шт.

45

4244689

Pin

(SUB FOR AT154176)

3шт.

46

34M7035

Spring Pin

5 X 40 mm

3шт.

47

4269480

Plate

(SUB FOR AT154307)

6шт.

48

3069727

Sun Gear

(SUB FOR AT154094) (SUB FOR AT215860)

1шт.

50

4244541

O-Ring

(SUB FOR AT154174)

1шт.

54

8050210

Line

(SUB FOR AT154499)

1шт.

57

94-2012

Fitting Plug

(SUB FOR TH100653)

1шт.

60

Cover

(FOR TRANSPORTATION PURPOSES ONLY)

1шт.

80

9111265

Device

(SUB FOR AT158510

1шт.
