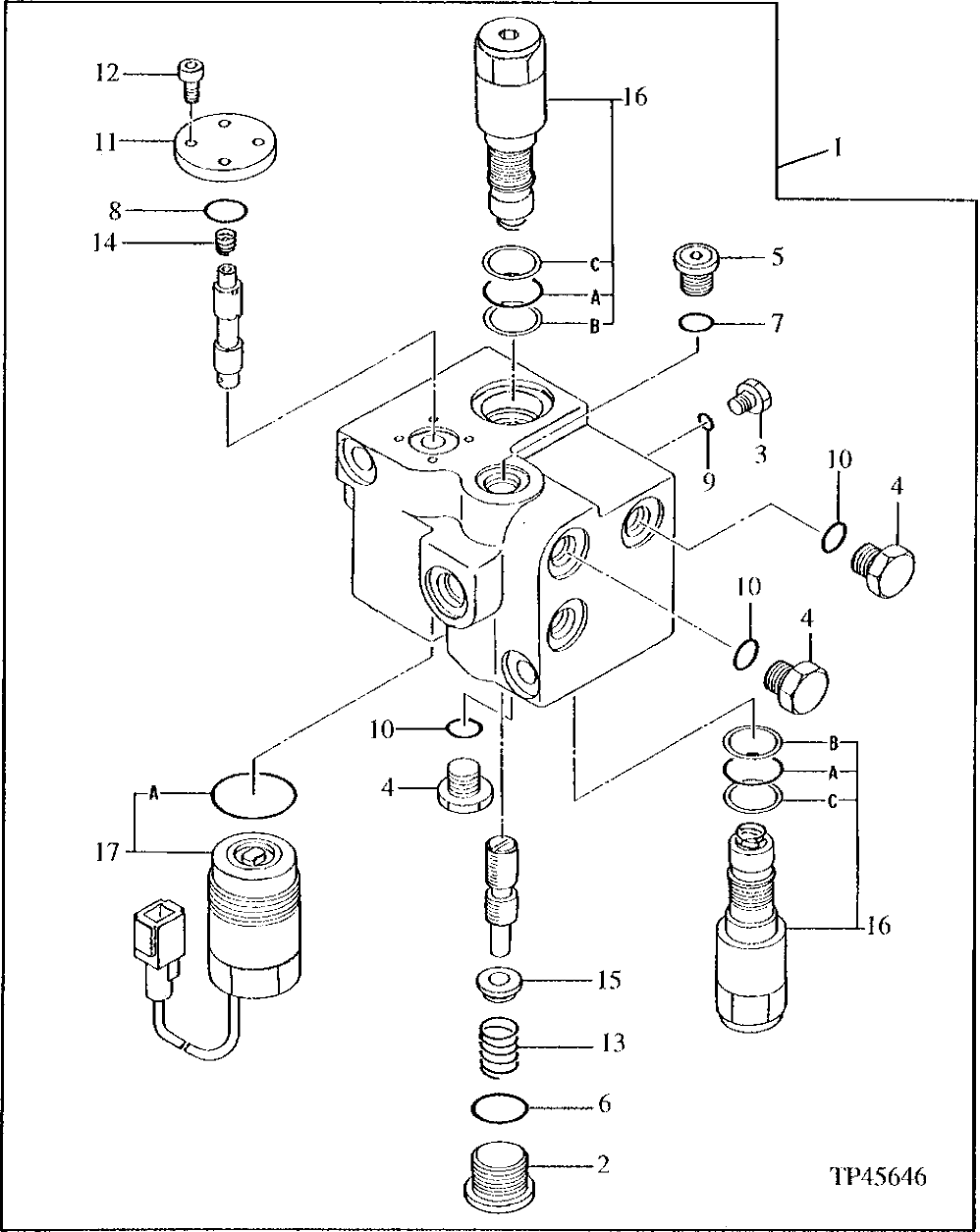

Запчасти John Deere 90E 277 - Swing Motor Lines From Control Valve 4360 Hydraulics

1

4288148

Flow Control Hyd. Valve

(SUB FOR AT154414)

1шт.

2

0437401

Plug

(SUB FOR AT202279)

1шт.

3

0437402

Plug

(SUB FOR AT202280)

1шт.

4

0236014

Fitting Plug

(SUB FOR TH102650)

3шт.

5

0437403

Plug

(SUB FOR AT202281)

1шт.

6

CH12329

Packing

1шт.

7

CH10568

Packing

1шт.

8

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32")

1шт.

9

E56086

O-Ring

5.283 X 1.778 mm (0.208" X 0.070")

1шт.

10

M800650

Packing

3шт.

11

0437404

Cover

(SUB FOR AT202282)

1шт.

12

0437405

Bolt

(SUB FOR AT202283)

4шт.

13

0437406

Spring

(SUB FOR AT202284)

1шт.

14

0437407

Spring

(SUB FOR AT202285)

1шт.

15

0437408

Plate

(SUB FOR AT202286)

1шт.

16

0437409

Flow Control Hyd. Valve

(SUB FOR AT203679)

2шт.

16A

CH12329

Packing

1шт.

16B

4027959

Back-Up Ring

(SUB FOR TH102654) (SUB FOR TH100771)

1шт.

16C

0185302

Back-Up Ring

(SUB FOR AT202278)

1шт.

17

0437411

Solenoid Valve

(SUB FOR AT202288)

1шт.

17A

0437412

O-Ring

(SUB FOR AT202289)

1шт.
